MYRACK

Click on the image to zoom

Get more from your MYRA system

Myrack is your new, powerful rack. It is built to professional touring industry standards, and we have taken great care to ensure that it is rugged enough to handle whatever comes your way. As an acoustic engineer or technician, Myrack will help you do your job better, as it gives you more power and control over all of your gear.

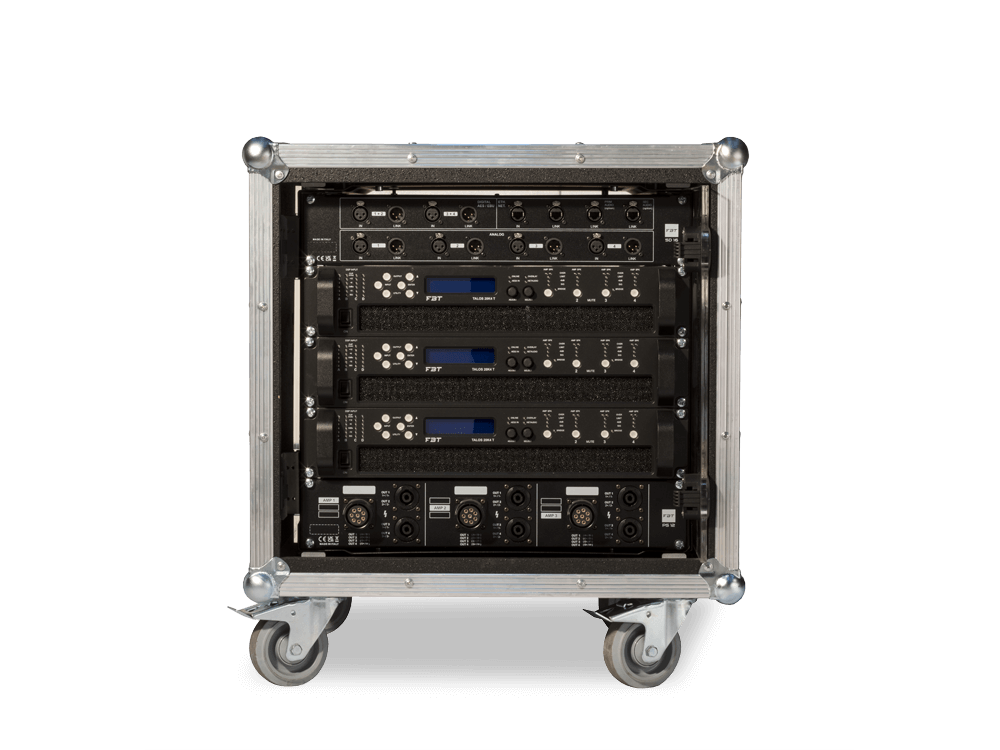

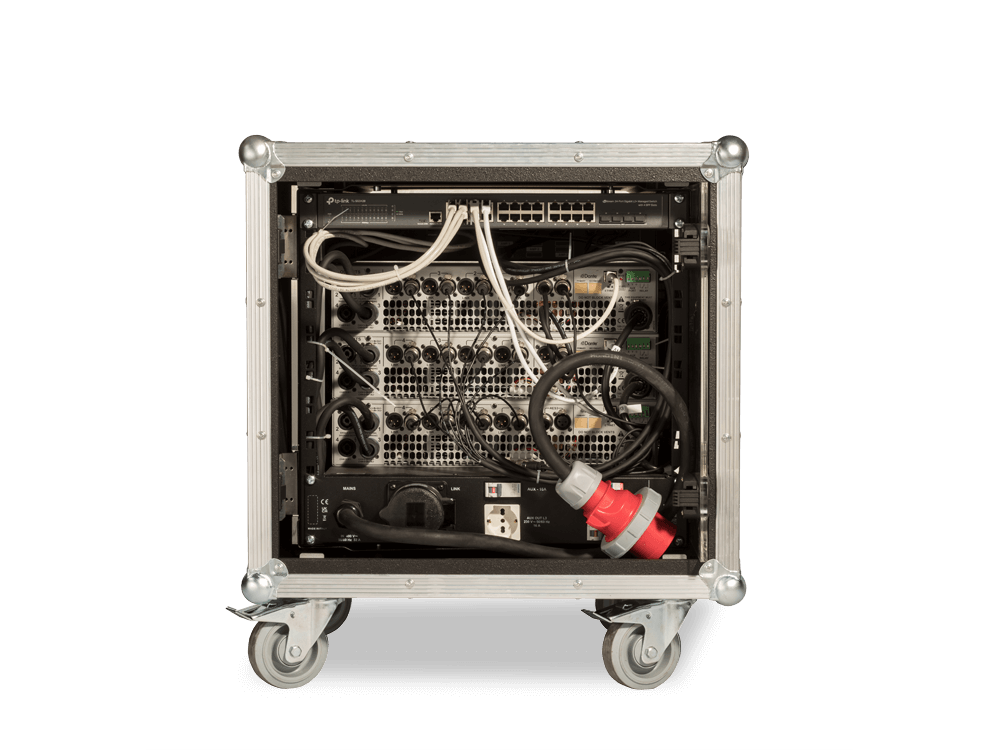

Designed as a closed system rack, Myrack provides mains power distribution and connector interface for three TALOS 20K4T amplifiers each. This touring rack is equipped with a mains power distribution device which also serves as a loudspeaker connector panel. Also incorporated is an I/O panel which serves as a connector interface for both analog and digital audio signals as well as four network connectors for Ethernet remote capabilities.

Technical specifications
Code: 45311
Both channel driven 8 ohm 1% THD Continous/impulsive: 3000W
Both channel driven 4 ohm 1% THD Continous/impulsive: 1500 W
Bridge 8ohm 1% THD: 6000W
Input impedance: 20 KOhm
Signal to noise ratio S/N: > 113dB (A-weighted)
Total harmonic dist. (1kHz-4ohm): < 0.05%
Frequency response: 5Hz - 20KHz (-0.5dB , 3dB below rated power)
Damping Factor: > 500
Class: Class D - PWM modulator with ultra low distortion
Maximum power consuption: 6000W
Power supply voltage: Universal Main Voltage 100 - 240 Vac @ 50/60Hz
Protections: Short circuit, over temperature, over/under voltage, overload
Connectors: Neutrik XLR Input, Neutrik Speakon Output, NeutriK 32A Powercon Mains
Net Dimensions (WxHxD): 652x558x675mm / 25.66x21.96x26.57 inch
