X-SUB 118SA

Active Subwoofer

Click on the image to zoom

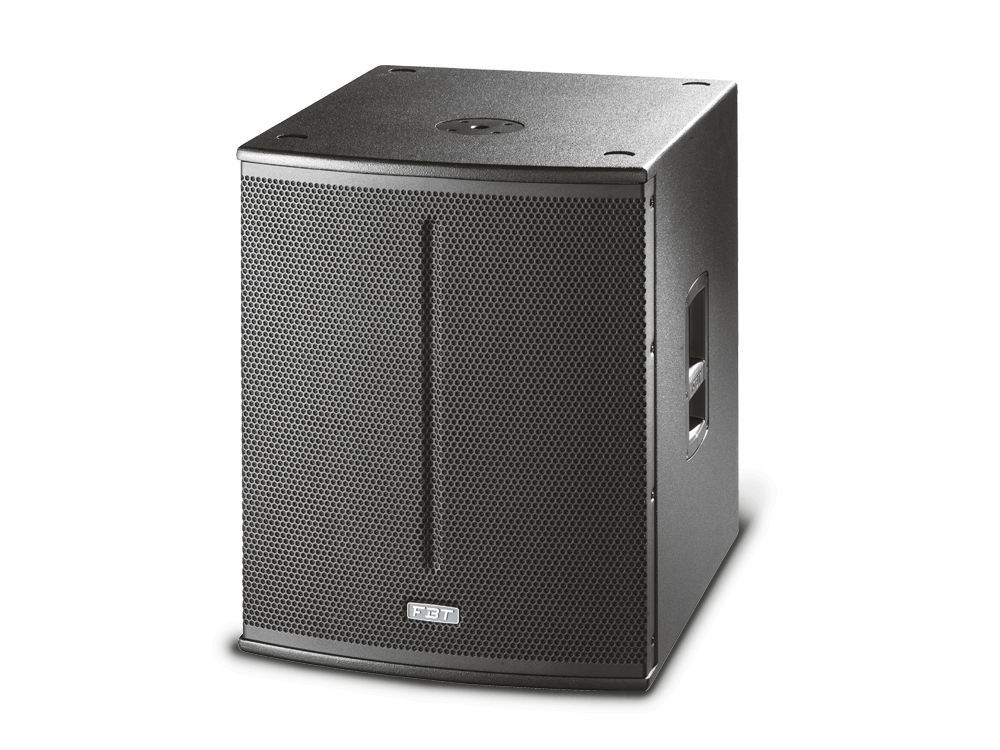

The compact bass reflex subwoofer X-Sub 18SA is an excellent choice for those seeking powerful and high-quality sound. Equipped with a 460mm (18") high excursion woofer with a 75mm (3") coil, this subwoofer is capable of providing exceptional SPL and punchy sound. The frequency response of the X-Sub 18SA ranges from 38Hz to 120Hz, which means it can easily reproduce the lowest frequencies. Additionally, with 1200W class D amplifiers with a switching power supply, this subwoofer is capable of providing powerful and high-quality sound.

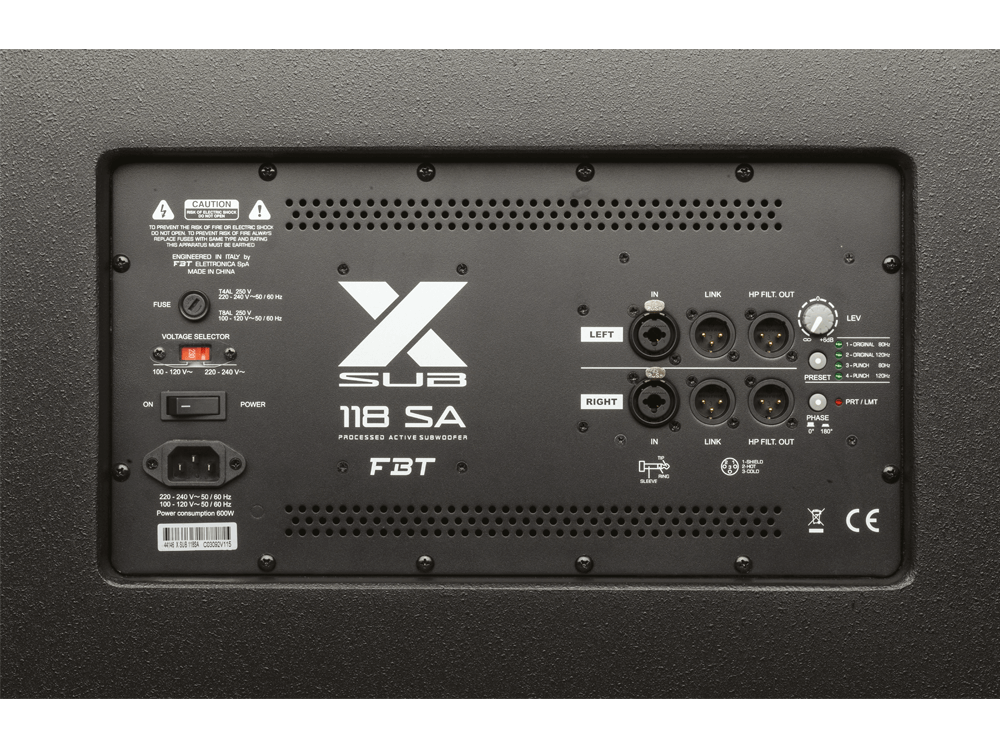

The control panel of the X-Sub 18SA is equipped with XLR input and STEREO link, XLR Hi-Pass out STEREO, volume, presets, 0°-180° phase, and status LED. Moreover, the subwoofer has an 18mm birch plywood box with scratch-resistant paint, an M20 speaker stand support, and two FBT aluminum handles. The optional 100mm wheels make transporting this subwoofer even easier.

This subwoofer is ideal for reinforcing and extending the low range of the X-Pro or X-Lite series. With powerful sound and high-quality frequency response, it will meet the needs of anyone seeking a technical, professional, and international sound.

  • Configuration: bass reflex
  • Low Frequency Woofer: 1 x 18'' - 3'' VC
  • Built-in Amplifier: 1200W RMS
  • Maximum SPL: 136dB half space
  • Material: Plywood

dsp signal processor

X-Sub 118SA offers 4 customizable presets, each of which adapts to the listener's preferences and the acoustic characteristics of the surrounding environment. The presence of a DSP allows for greater precision in managing the speaker's response, compared to simple tone controls. Thanks to the presence of presets, it is possible to obtain the desired character from the speaker without having to make complex modifications.

Additionally, each preset has been studied and optimized to guarantee the maximum sound quality. The presets can manage different cut-off frequencies, which allows the speaker to be configured with any other speaker present in the environment, for an optimal listening experience.

Technical specifications
Code: 44146
Configuration: bass reflex
Built-in amplifier LF/HF: 1200W RMS
Built-in amplifier peak LF/HF: ---
Frequency response: 38Hz - 120Hz (@-6dB)
Low Frequency woofer: 18” / 3” VC
Maximum SPL cont/peak: 136dB half space
Dispersion: Omnidirectional
Input impedance: 22 kOhm
Crossover Frequency: ---
AC Power requirements: 600W
Input connector: XLR with loop
Power cord: 16,4ft / 5mt
Net Dimension (WxHxD): 510 x 655 x 630 mm / 20,07 x 25,78 x 24,80 inch
Net Weight: 34 kg / 74,95 Lb
Transport Dimension (WxHxD): ---
Transport Weight: ---
