X-SUB 115SA

Active Subwoofer

Click on the image to zoom

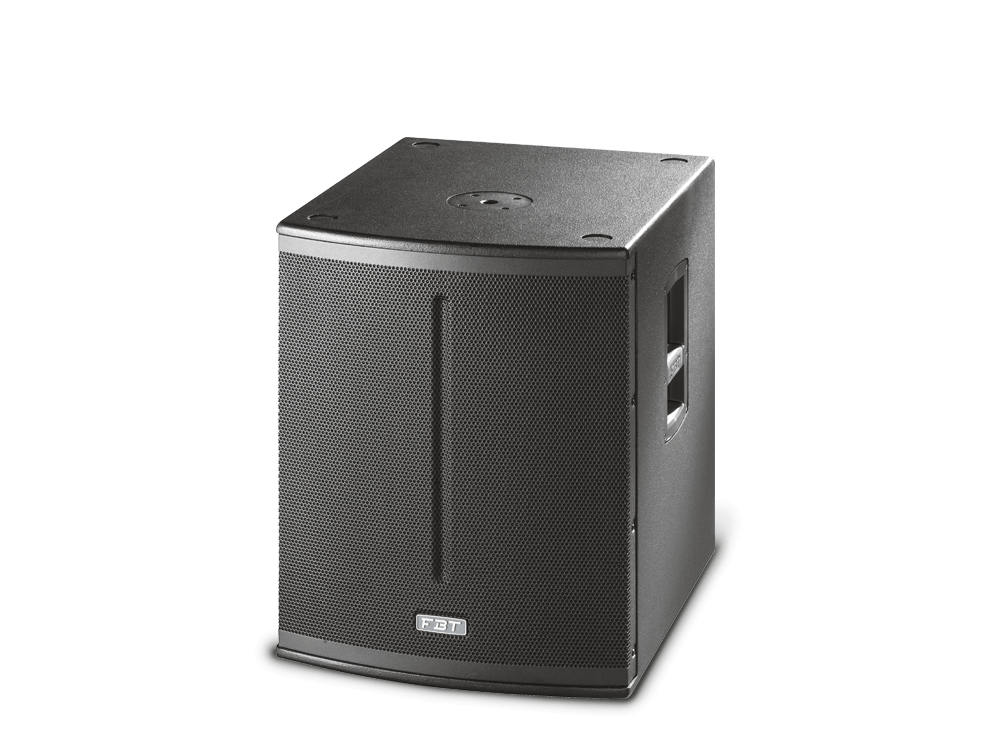

The X-Sub 115SA is a powerful subwoofer that boasts an impressive 15" high excursion woofer and a 1200W RMS internal amplifier. This subwoofer is equipped with a digital signal processor that features 4 presets, allowing for extensive customization of low frequencies up to mid-high levels. This feature is especially useful for those who require precise control over the audio output of their subwoofer. The subwoofer is housed in a robust 15mm birch plywood box that is specifically designed to meet all installation requirements. The X-SUB 115SA also comes equipped with an M20 stand support for mounting a satellite, and two aluminium handles, making it easy to transport and set up. Additionally, the subwoofer offers the option of installing four 100mm wheels, providing even greater mobility.

This subwoofer is perfect for those who require a professional-grade subwoofer that delivers powerful, high-quality sound. Its technical specifications and design make it an ideal choice for those who need a subwoofer that can handle a variety of installation requirements. The X-SUB 115SA is a versatile, reliable, and high-performance subwoofer that is sure to exceed your expectations.

  • Configuration: bass reflex
  • Low Frequency Woofer: 1 x 15'' - 3'' VC
  • Built-in Amplifier: 1200W RMS
  • Maximum SPL: 135dB half space
  • Material: Plywood

dsp signal processor

X-Sub 115SA offers 4 customizable presets, each of which adapts to the listener's preferences and the acoustic characteristics of the surrounding environment. The presence of a DSP allows for greater precision in managing the speaker's response, compared to simple tone controls. Thanks to the presence of presets, it is possible to obtain the desired character from the speaker without having to make complex modifications.

Additionally, each preset has been studied and optimized to guarantee the maximum sound quality. The presets can manage different cut-off frequencies, which allows the speaker to be configured with any other speaker present in the environment, for an optimal listening experience.

Technical specifications
Code: 44145
Configuration: bass reflex
Built-in amplifier LF/HF: 1200W RMS
Built-in amplifier peak LF/HF: ---
Frequency response: 42Hz - 120Hz (@-6dB)
Low Frequency woofer: 15” / 3” VC
Maximum SPL cont/peak: 135dB half space
Dispersion: Omnidirectional
Input impedance: 22 kOhm
Crossover Frequency: ---
AC Power requirements: 600W

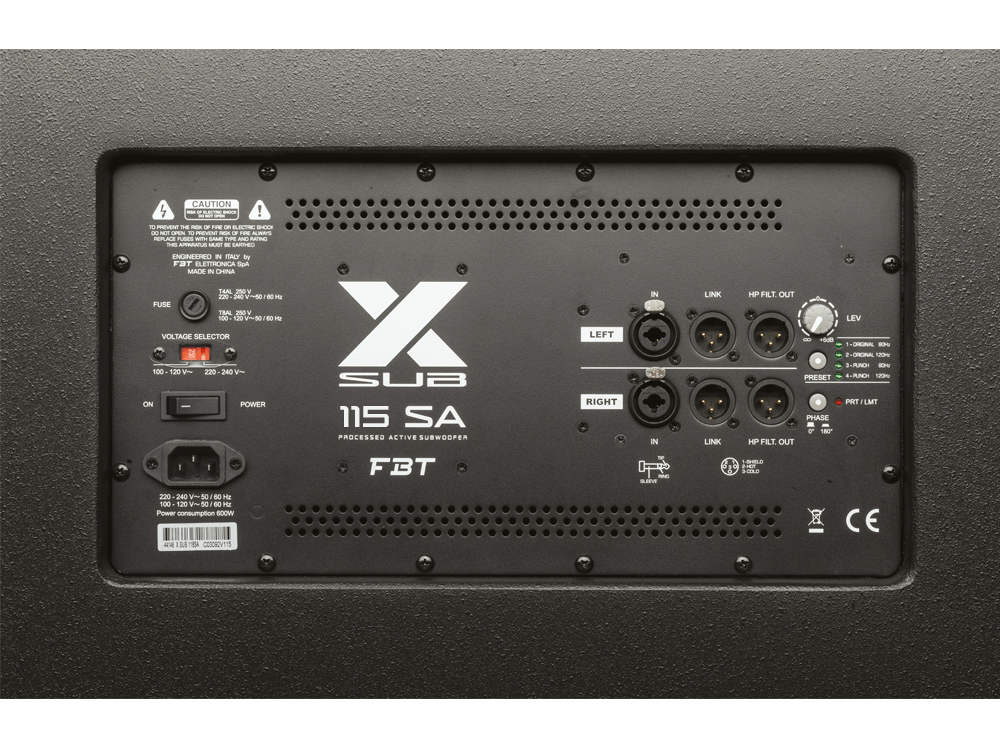

Input connector: XLR with loop
Power cord: 16,4ft / 5mt
Net Dimension (WxHxD): 455 x 586 x 570 mm / 17,91 x 23,07 x 22,44 inch
Net Weight: 30 kg / 66,13 LB
Transport Dimension (WxHxD): ---
Transport Weight: ---
