ProductDetail

X-PRO 112A

Active Point Source

Click on the image to zoom

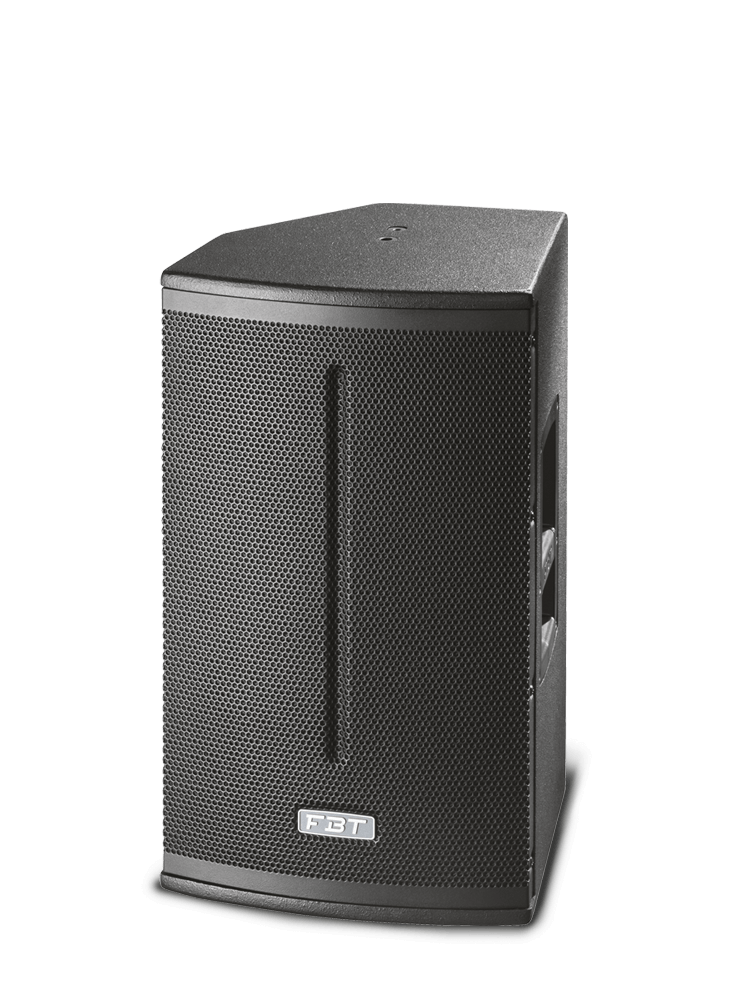

The X PRO 112A is an impressive 2-way bi-amplified system that is designed to deliver high-quality audio. It features a custom 320mm (12”) LF woofer with a 64mm (2.5") voice coil and a 25mm (1") throat / 35mm (1,4") voice coil HF compression driver. The built-in amplifier has a maximum power output of 1200/300W for LF/HF respectively, which ensures that the audio is clear and powerful. The cabinet is made of plywood, which makes it sturdy and durable.

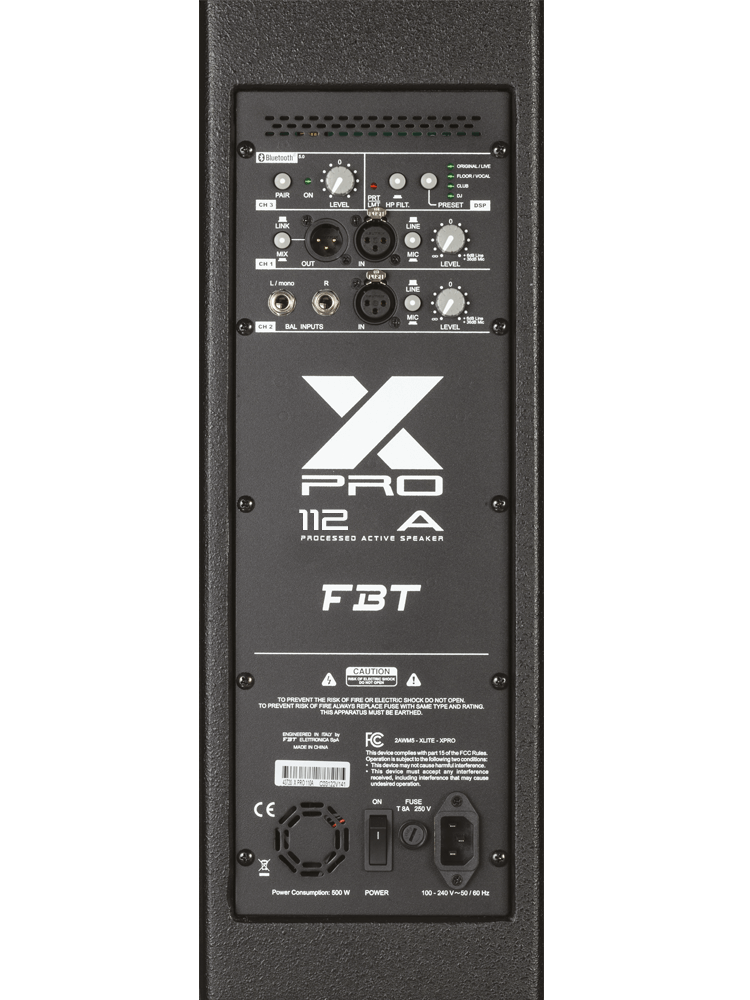

One of the standout features of the X PRO 112A is the 80° H x 50° V rotatable constant directivity horn, which allows for flexibility in positioning and directing the sound. The control panel features a three-channel mixer with two micro-line inputs, a stereo input, and a dedicated channel for Bluetooth 5.0. Additionally, it has two XLR inputs, a stereo input, XLR output with ch1 or mix link selector, hp filter, two mic-line selectors, DSP preset selector, and Bluetooth 5.0 with pairing LED. This means that there are various options for connecting and controlling the audio output.

The X PRO 112A also comes with 4 DSP presets and 35° monitor taper, which allows users to fine-tune the audio output to their desired specifications. It also has a universal switching mode power supply 100-240 VAC, which makes it suitable for use in different countries. Finally, the 4x M10 rigging points make it easy to install and mount the system. X PRO 112A is a top-of-the-line audio system that delivers powerful and clear audio for a variety of applications.

  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 12'' - 2.5'' VC
  • High Frequency Driver: 1 x 1'' - 1.4'' VC
  • Built-in Amplifier LF/HF: 1200 - 300W RMS
  • Maximum SPL: 129dB
  • Material: Plywood

dsp signal processor

The ORIGINAL/LIVE preset is a great all-around option that will work well for most live applications. If you're using the speaker as a stage monitor, then the FLOOR/VOCAL preset is the way to go. This preset is specifically tailored to maximize speech intelligibility, so it's perfect for vocal-heavy performances.

If you're looking for a preset with an accentuated bass, then the CLUB preset is the one for you. It has slightly attenuated treble and is suitable for medium to low volume listening, making it great for parties or smaller events. Finally, the DJ preset is designed for disco club installations. It's perfect for getting everyone on the dance floor with its high-energy sound. No matter what your needs are, these 4 presets offer a range of options to ensure that you can get the most out of your speaker.

Technical specifications
Code: 43721
Configuration: 2 ways
Built-in amplifier LF/HF: 1200/300 W RMS
Frequency response: 50Hz - 20KHz
High Frequency driver: 1''- 1.4'' VC
Maximum SPL cont/peak: 124/129dB
Dispersion: 80°x50° rotatable
Input impedance: 22kOhm
Input connector: XLR IN/OUT JACK ST
Power cord: 16,4ft / 5mt
Net Dimension (WxHxD): 369 x 640 x 370 mm / 14,52 x 25,19 x 14,56 inch
Net Weight: 18 Kg / 39,68 Lb
Transport Dimension (WxHxD): 465 x 715 x 465 mm / 18,30 x 28,14 x 18,30 inch
Transport Weight: 20,8 Kg / 45,85 Lb
low frequency woofer 12'' - 2.5'' VC
Accessories

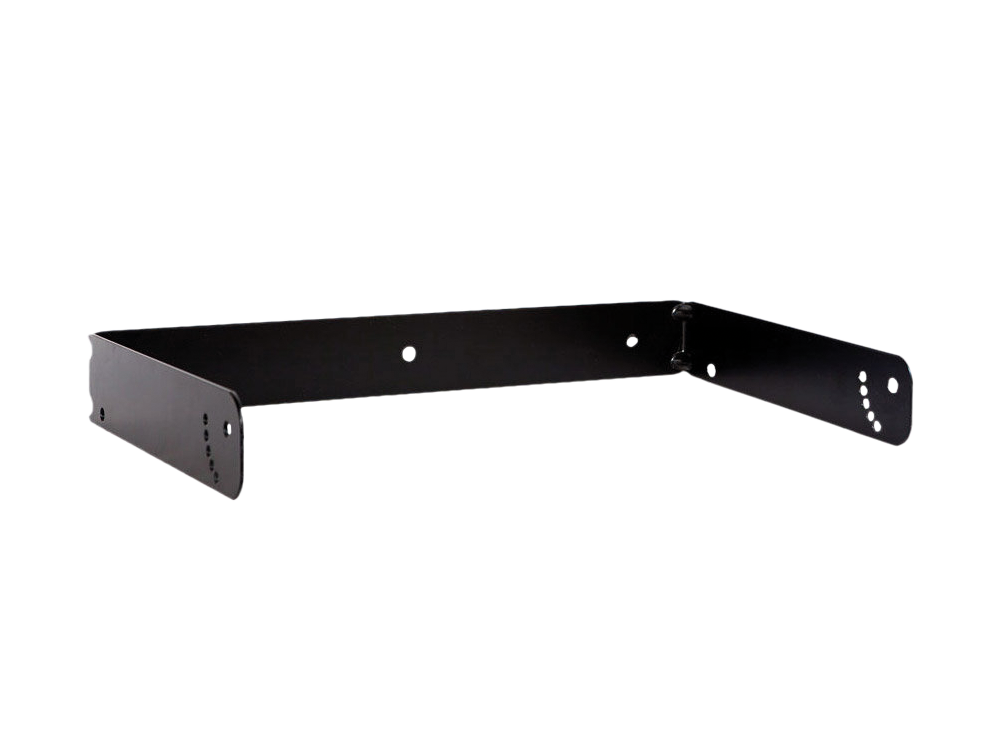

XP-UH12
