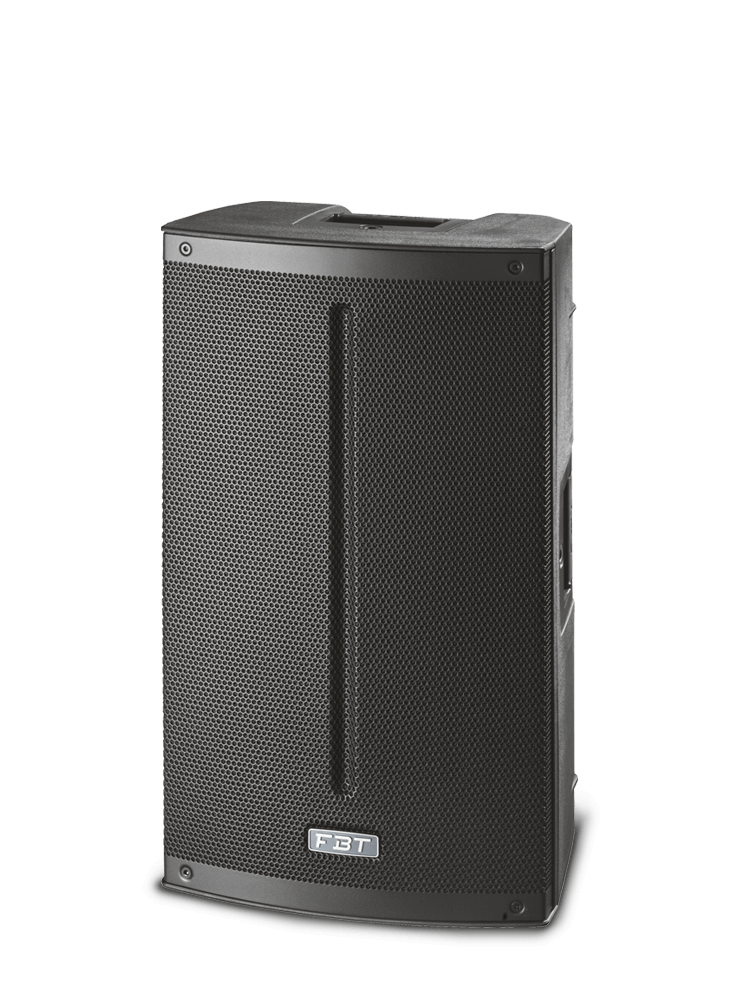

X-LITE 112A

Active Point Source

Click on the image to zoom

The X-Lite 112A system is a 2-way bi-amplified bass reflex system that offers high-quality audio performance in a compact format. Equipped with high-efficiency custom speakers, the system features 25mm (1") compression drivers with a 35mm (1.4") coil. The 320mm (12") custom woofer with a 64mm (2.5") coil and the 90°H x 60°V horn allow for even and precise sound dispersion, while the universal switching power supply of 100-240Vac enables the system to be used anywhere in the world. The 1200W LF and 300W HF Class D amplifier with high dynamics ensures a high-fidelity sound experience. Moreover, the system is equipped with Bluetooth 5.0 and a 3-channel mixer with a dedicated BLUETOOTH 5.0 channel, two independent micro/line channels with separate volume, and one with a stereo jack input, balanced XLR MIX output or CH1 LINK.

The X-lite 112A system is equipped with a DSP processor with 4 equalization presets, which ensures a personalized sound experience based on user preferences. The gas injection-molded polypropylene cabinet designed to eliminate unwanted resonances and advanced algorithms for filtering, dynamic equalization of low frequencies, energy control that changes depending on the selected preset, guarantee a clean and distortion-free sound. Finally, the integrated handles, M10 anchoring points for suspended installation, tripod support, and 30° and 45° monitor profile of the speaker make the X-lite 112A system extremely versatile and easy to transport and install.

  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 12'' - 2.5'' VC
  • High Frequency Driver: 1 x 1'' - 1.4'' VC
  • Built-in Amplifier LF/HF: 1200 - 300W RMS
  • Maximum SPL: 129dB
  • Material: Polypropylene

DSP SIGNAL PROCESSOR

The ORIGINAL/LIVE preset is a great all-around option that will work well for most live applications. If you're using the speaker as a stage monitor, then the FLOOR/VOCAL preset is the way to go. This preset is specifically tailored to maximize speech intelligibility, so it's perfect for vocal-heavy performances.

If you're looking for a preset with an accentuated bass, then the CLUB preset is the one for you. It has slightly attenuated treble and is suitable for medium to low volume listening, making it great for parties or smaller events. Finally, the DJ preset is designed for disco club installations. It's perfect for getting everyone on the dance floor with its high-energy sound. No matter what your needs are, these 4 presets offer a range of options to ensure that you can get the most out of your speaker.

Technical specifications
Code: 43543
Configuration: 2 ways
Built-in amplifier LF/HF: 1200/300W RMS
Frequency response: 50Hz - 20kHz
High Frequency driver: 1'' - 1.4'' VC
Maximum SPL cont/peak: 124/129dB
Dispersion: 90°x60° HxV
Input impedance: 22kOHm
Input connector: XLR IN/OUT, Jack ST
Power cord: 9.8ft / 3mt
Net Dimension (WxHxD): 356x619x357 mm / 14.01x24.37x14.05 inch
Net Weight: 16.3 Kg / 35.93Lb
Transport Dimension (WxHxD): 440x700x445 mm / 17.32x27.55x17.51 LB
Transport Weight: 18.9 Kg / 41.66 Lb
low frequency woofer 12'' - 2.5'' VC
Accessories
XL-UH12
XL-UV12
