X-LITE 110A

Active Point Source

Click on the image to zoom

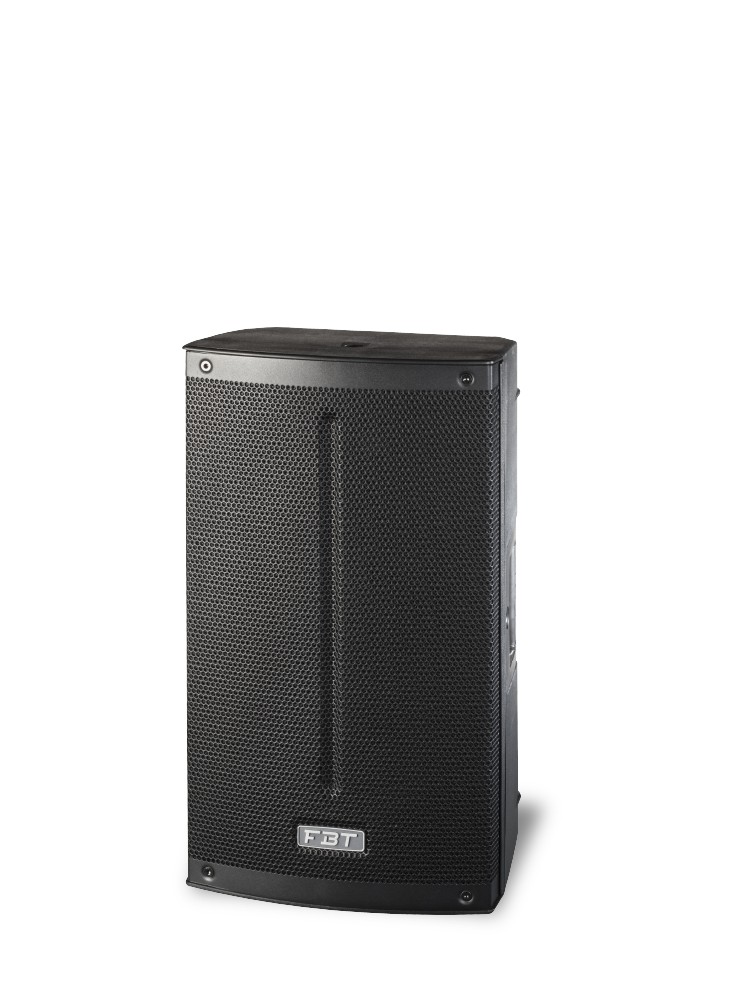

The X-Lite 110A is a bi-amplified active speaker that boasts an impressive power output of 1200W / 300W (LF/HF) from its built-in amplifier. Equipped with a custom 10" (LF) woofer with a 2.5" voice coil and a 1" throat / 1.4" voice coil HF compression driver, this speaker delivers exceptional sound quality that is sure to impress.

The control panel of the X-Lite 110A features a three-channel mixer with two micro-line inputs, a stereo input, and a dedicated channel for Bluetooth 5.0. The inclusion of two xlr inputs, a stereo input, xlr output with ch1 or mix link selector, hp filter, two mic-line selectors, dsp preset selector, and Bluetooth 5.0 with pairing led make it a versatile and practical option for professional audio applications.

The X-Lite 110A is designed to be easily mounted in a variety of settings. With four M10 rigging points built-in into the cabinet, along with optional mounting brackets, this speaker can be surface mounted on walls or ceilings. Additionally, the standard 1.38” speaker stand socket allows for mounting on a speaker stand. The 30° / 45° monitor taper enhances the speaker's versatility and ease of use. The universal switching mode power supply 100 - 240 VAC ensures that it can be used in a variety of international settings.

Overall, the X-Lite 110A is a top-of-the-line active speaker that is perfect for any application where high-quality audio is needed. Its impressive power output, versatile control panel, and flexible mounting options make it a great choice for professionals.

  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 10'' - 2.5'' VC
  • High Frequency Driver: 1 x 1'' - 1.4'' VC
  • Built-in Amplifier LF/HF: 1200 - 300W RMS
  • Maximum SPL: 127dB
  • Material: Polypropylene

DSP SIGNAL PROCESSOR

The ORIGINAL/LIVE preset is a great all-around option that will work well for most live applications. If you're using the speaker as a stage monitor, then the FLOOR/VOCAL preset is the way to go. This preset is specifically tailored to maximize speech intelligibility, so it's perfect for vocal-heavy performances.

If you're looking for a preset with an accentuated bass, then the CLUB preset is the one for you. It has slightly attenuated treble and is suitable for medium to low volume listening, making it great for parties or smaller events. Finally, the DJ preset is designed for disco club installations. It's perfect for getting everyone on the dance floor with its high-energy sound. No matter what your needs are, these 4 presets offer a range of options to ensure that you can get the most out of your speaker.

Technical specifications
Code: 43542
Configuration: 2 way
Built-in amplifier LF/HF: 1200/300W RMS
Frequency response: 58H z- 20kHz
High Frequency driver: 1'' - 1.4'' VC
Maximum SPL cont/peak: 123/127
Dispersion: 90°x60° HxV
Input impedance: 22Ohm
Input connector: XLR IN/OUT
Power cord: 9.8ft / 3mt
Net Dimension (WxHxD): 300x536x301.5mm / 11.81x21.10x11.87 inch
Net Weight: 13Kg / 28.66 Lb
Transport Dimension (WxHxD): 370x615x380 mm / 14.56x24.21x14.96 inch
Transport Weight: 14.8 KG / 32.62 Lb
low frequency woofer 10'' - 2.5'' VC
Accessories
XL-UH10
XL-UV10
