X-LITE 110

Passive Point Source

Click on the image to zoom

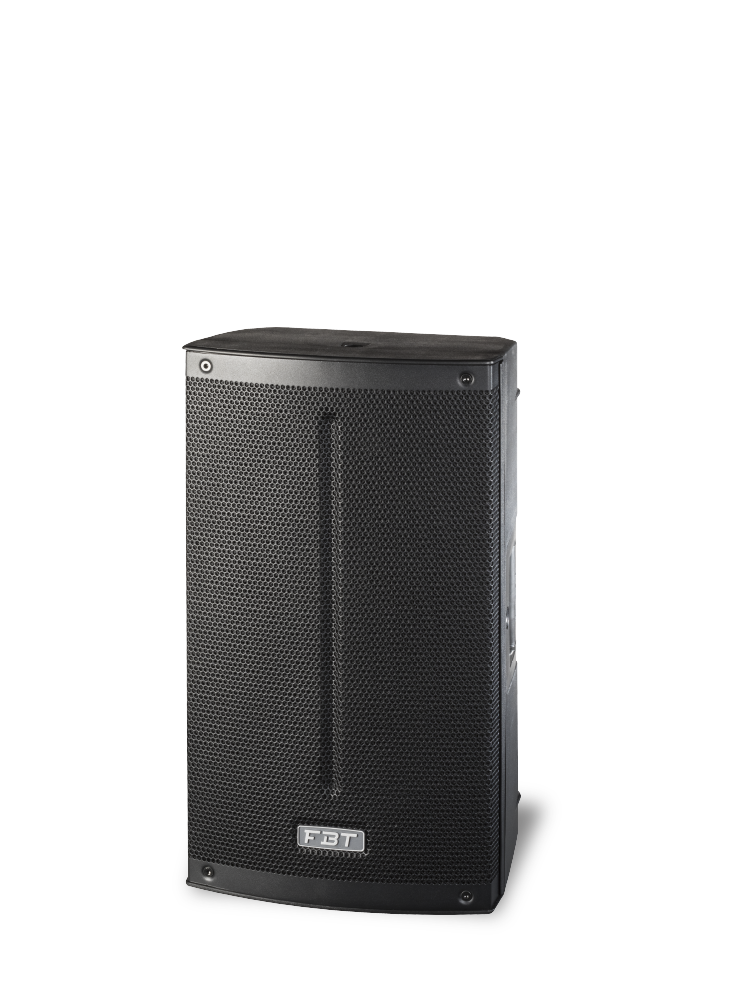

The X-Lite 110 speaker is a two-way passive reinforcement speaker that is designed for high-fidelity sound in both speech and music applications. The speaker has a frequency range of 65Hz - 20kHz and a maximum SPL of 124dB, making it ideal for small fixed installations. The X-Lite 110 speaker features a 10" low frequency woofer and a 1" HF compression driver coupled to a 90°H x 60°V constant directivity horn, providing exceptional sound quality for a variety of applications.

Constructed using gas-injected molded polypropylene, the X-Lite 110 speaker is both lightweight and rugged. The cabinet is available in a sleek black finish, giving it a modern appearance that blends seamlessly into any decor. The asymmetrical shape of the cabinet also allows for use as a floor stage monitor, making it a versatile choice for a wide range of applications.

The X-Lite 110 speaker has an impedance of 8 Ohm and the internal crossover is at a fixed frequency of 2kHz, making it easy to install and use. The control panel features 2 x NL4 Neutrik speakon, while 4 x M10 rigging points built into the cabinet along with the optional mounting brackets allow for easy surface mounting on walls or ceilings. A standard 1,38" speaker stand socket allows the X-Lite 110 to be mounted on speaker stands, while a front face steel grille protects the speaker from external damage, ensuring years of reliable and high-quality sound performance.

  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 10'' - 2.5'' VC
  • High Frequency Driver: 1 x 1'' - 1.4'' VC
  • Recommended Amplifier: 350W RMS
  • Maximum SPL: 124dB
  • Material: Plywood


The new x-series

Your music, your performance or your installation can count on FBT's new X-LITE series of portable speaker system

Technical specifications
Code: 46167
Configuration: 2 ways
Recommended amplifier: 350W RMS
Long Term power: 175W
Short term power: 700W
Nominal impedance: 8Ohm
Frequency response: 65Hz - 20kHz
Low Frequency woofer: 10'' - 2.5'' VC
High frequency driver: 1'' - 1.4'' VC
Sensitivity (@1W/1m): 96dB
Maximum SPL cont/peak: 121 / 124dB
Dispersion: 90° x 60° HxV
Crossover Frequency: 2kHz
Recommended HP filter: HP 55Hz - 12/24 dB oct.
Recommended external filter: FBT DSP Processor
Input connector: 2 x Speakon
Net Dimension (WxHxD): 300 x 536 x 301,5 mm / 11,81 x 21,10 x 11,87 inch
Net Weight: 14,5 Kg / 31,96 Lb
