VERTUS MLA 608A

MIXED CONTROL ACTIVE LINE ARRAY

digital processor

switch mode power supply

pole mounted

flying hardware

neodymium woofer

pwm amplifier

Click on the image to zoom

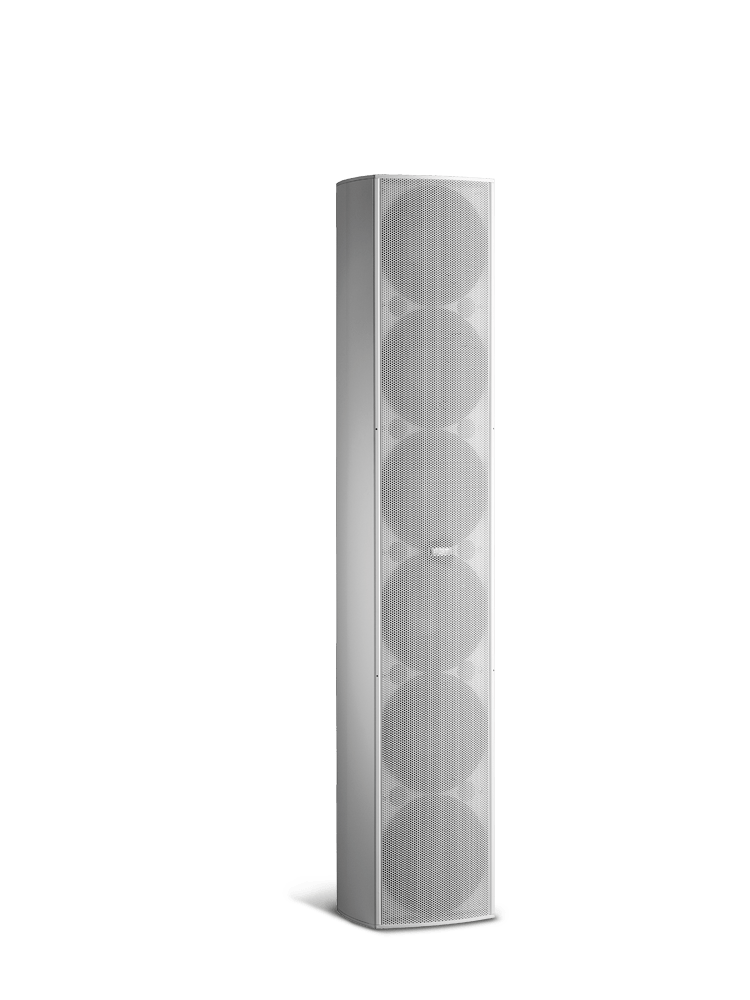

Vertus MLA 608A module is a high-quality component designed for the mid/low frequencies of the MLA column system. It is an active 6-way line array in bass reflex with digital pointing, consisting of 6 custom neodymium 200mm woofers with a 50mm coil. This module belongs to the Vertus MLA series and takes advantage of the benefits of digital and mechanical pointing control to achieve full-range directivity control.

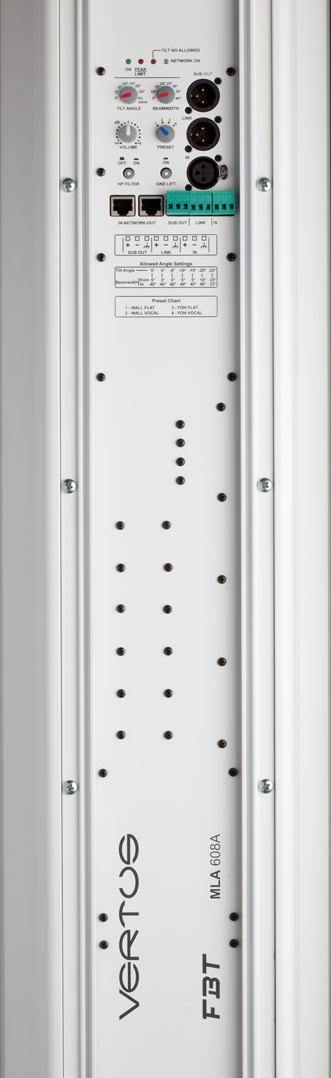

The Vertus MLA 608A module is equipped with a DSP processor for digital pointing and signal processing management, with 8 available presets. Furthermore, the full-range combined digital/mechanical pointing system allows a lobe width ranging from 5° to 25/40°, with a horizontal dispersion of 90°.

The extruded aluminum cabinet with powder coating ensures maximum strength and durability. The upper and lower attachment system for MLA series modules allows for great system modularity and the possibility of customizing the configuration according to specific event needs. Vertus MLA 608A represents a technologically advanced and professional solution for full-range directivity control, ideal for international and high-level applications.

  • Configuration: 6 way
  • Low Frequency Woofer: 6 x 8'' - 2'' VC
  • Built-in Amplifier: 6 x 500W RMS
  • Maximum SPL: 137dB
  • Material: Aluminium

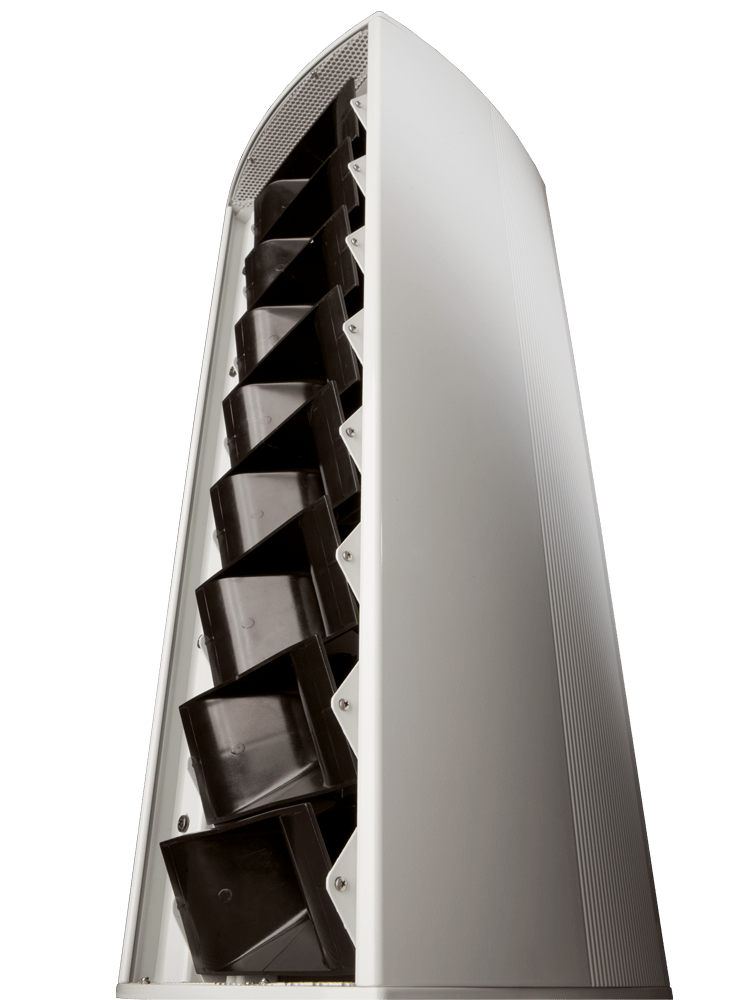

The mechanical part is entrusted to 8 hybrid stepped motors, each of which is dedicated to the rotation of wave guide by 0,01° steps on the horizontal axis. It is thus possible to activate any radiation pattern in the maximum rotation range of the wave guide which goes from +35 to -35 with respect to the horizontal axis.

Technical specifications
Code: 1350 VA
Built-in amplifier LF/HF: 6x230 W RMS
Built-in amplifier peak LF/HF: 6x500 W
Frequency response: 60Hz - 2KHz -6dB
Low frequency woofer: 6 x 8 - 2 coil - neodymium inch
Maximum SPL cont/peak: 133/137 dB
Dispersion: 90°xDigital controlled H x V
Input impedance: 22 Kohm
Crossover frequency: 1.8 KHz
Ac power requirements: 1350 VA
Input connector: XLR with loop, SUB out
Power cord: 5/16.4 mm/inch
Net Dimension (WxHxD): 240x1285x242 / 9.5x50.6x9.52 mm/inch
Net weight: 27/59.5 kg/lb
Transport Dimension (WxHxD): 320x1385x322 / 12.6x54.5x12.67 mm/inch
Transport weight: 31 / 68.4 kg/lb
