VERTUS CS 1000

COMPACT LINE ARRAY INTEGRATED SYSTEM 600W + 400W RMS 129 DB SPL

digital processor

switch mode power supply

neodymium woofer

permanent installations

Click on the image to zoom

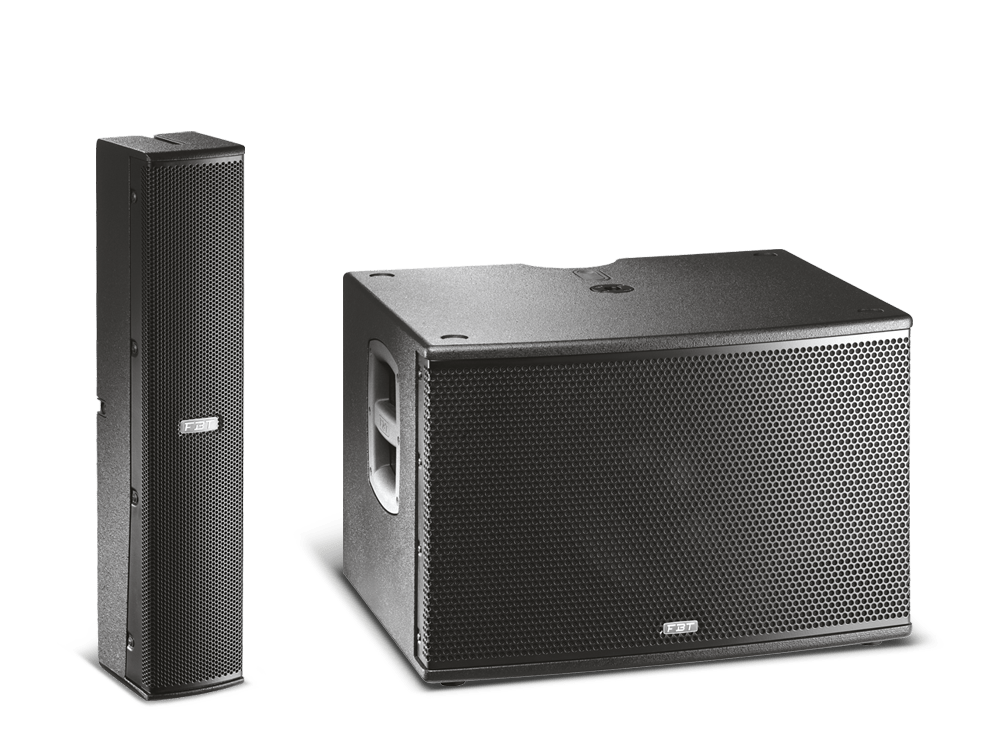

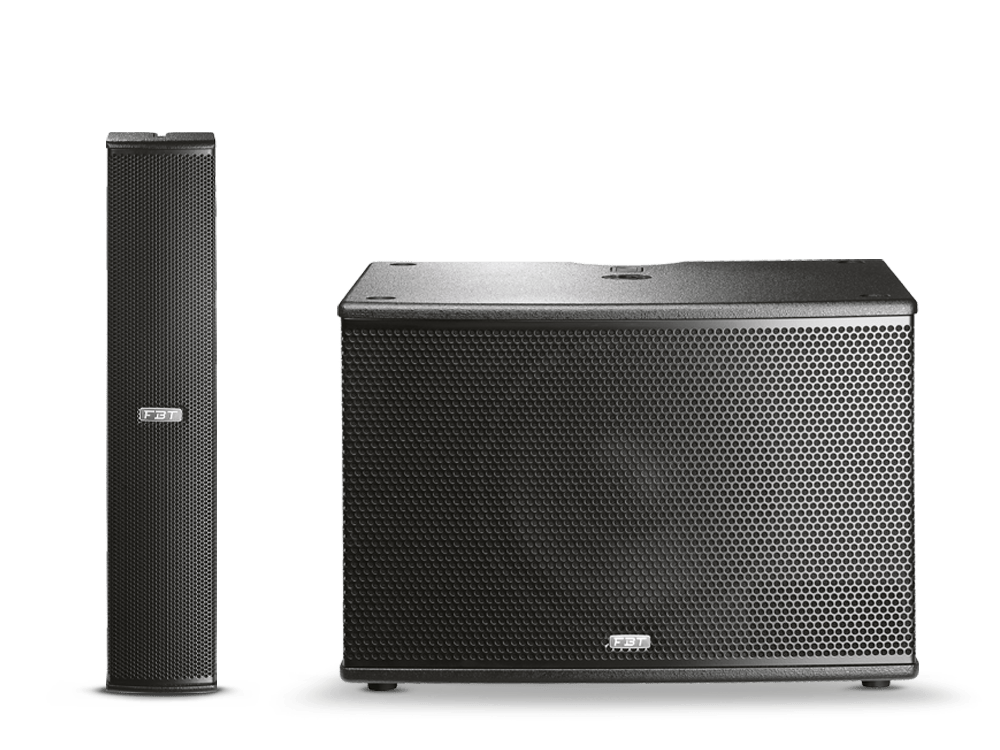

The Vertus CS 1000 is a compact system and consists of a two-way passive bi-amplified line array and a subwoofer, both equipped with high-quality, durable birch plywood cabinets.

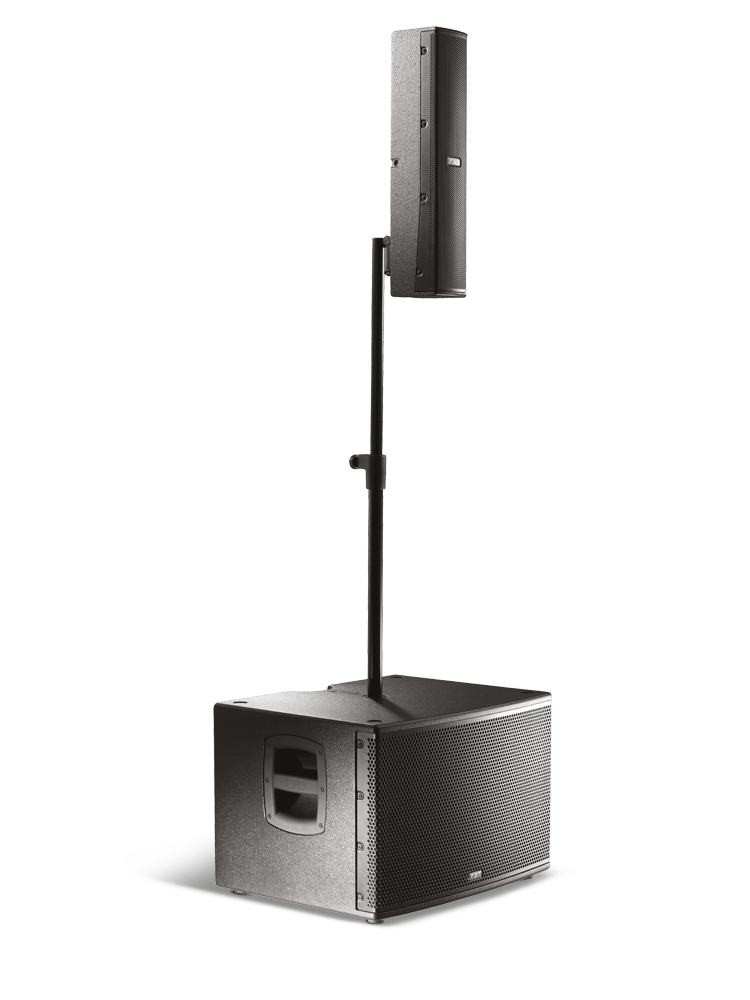

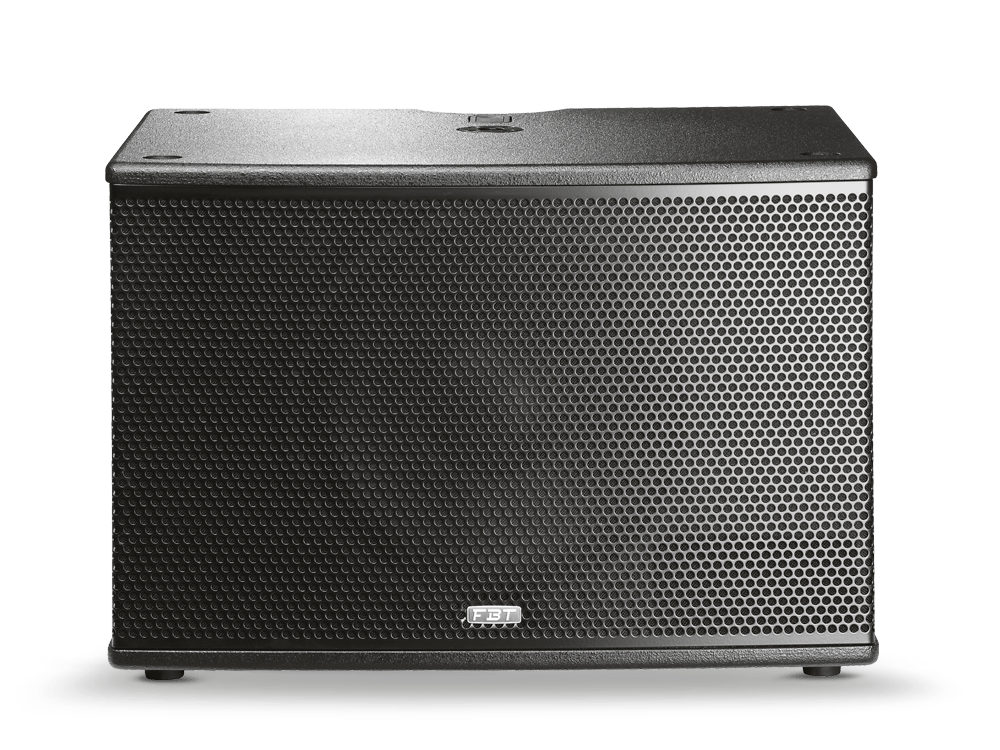

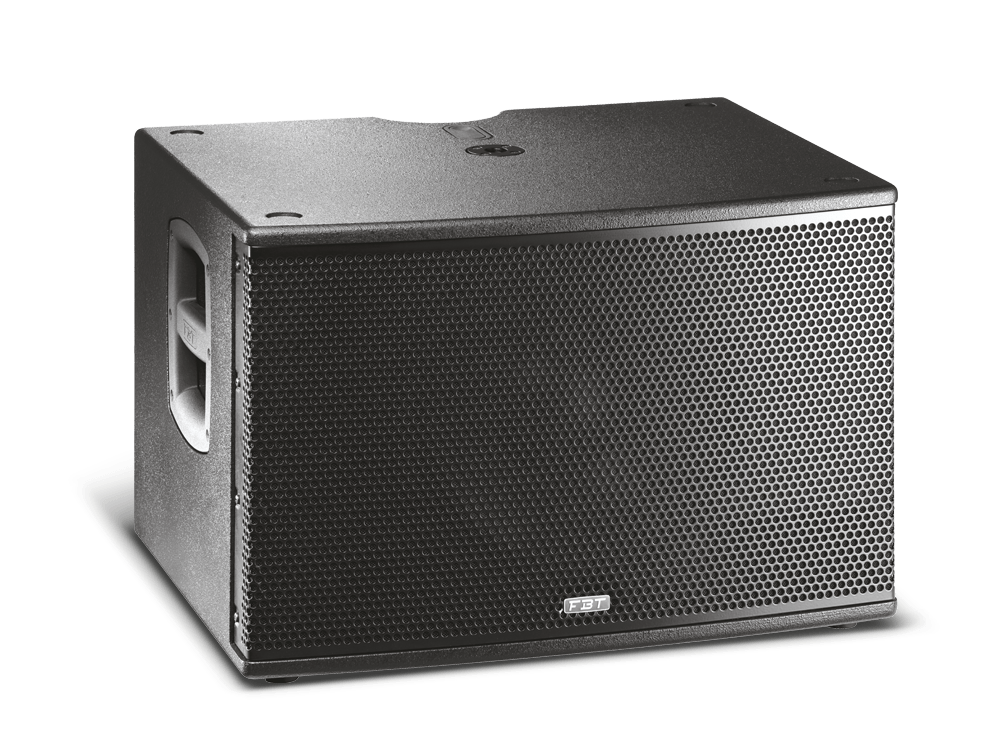

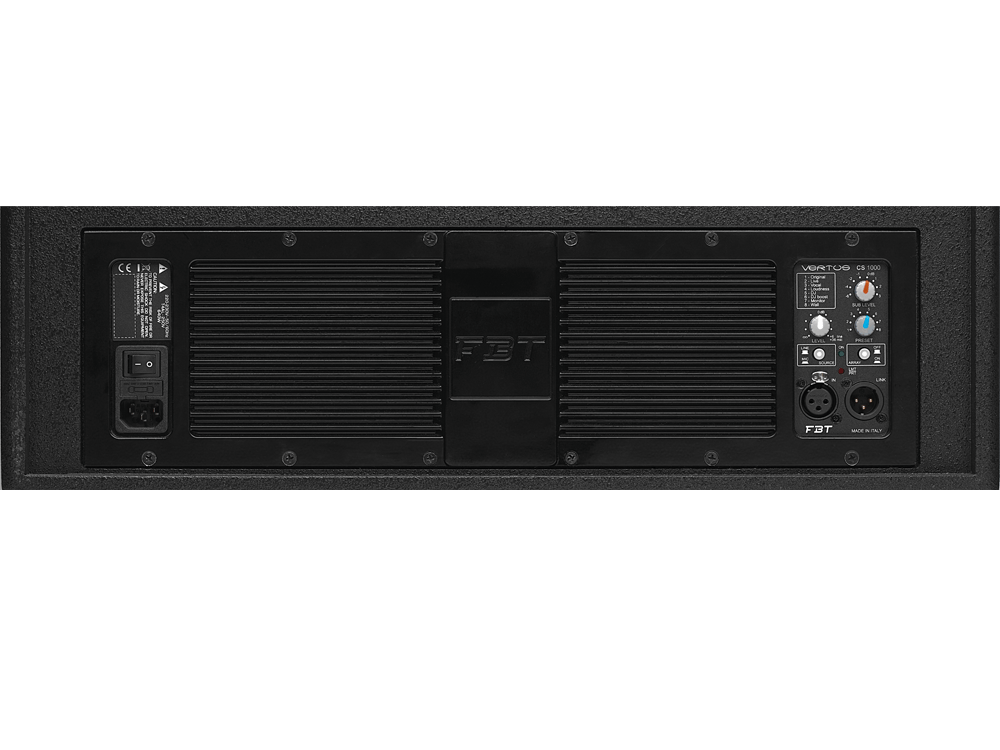

Thanks to its six custom 70mm (3") neodymium full-range woofers with a 20mm (0.75") high-efficiency voice coil, the line array can ensure a sound dispersion of 110°H x 30°V, with a frequency response from 40Hz to 20KHz. The satellite is also equipped with a hooking system for optional accessories that allow extending the length of the line array by coupling two satellites one above the other or making suspended wall installations. The custom 320mm (12") subwoofer with a 64mm (2.5") high-excursion bass-reflex voice coil is equipped with an aluminum die-cast handle with rubber inserts, an M20 support for a specific satellite support pole composed of 3 modules screwed on top of each other, and a joint that allows vertical inclination. The system is class D amplified with 600Wrms for LF and 400Wrms for HF with a switching power supply, and is equipped with a DSP processor with 8 equalization presets, guaranteeing optimal sound performance for any situation. The control panel is equipped with a master volume, presets, satellite volume, HPF, status LED, XLR input and link, and a Neutrik SPEAKON for the column connection. The Vertus CS1000 system is easily expandable for a total power of 8000W peak (stereo system composed of 4 x Vertus CS1000, two per side) thanks to the modularity of the system, which allows doubling the sub and satellite to form a single system through optional accessories. Furthermore, the satellite support pole and the satellite itself are fully integrated into the Subwoofer cabinet, and a button holding system allows locking the satellite in place for transport.

  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 12'' - 2.5'' VC
  • Mid-High Frequency Driver: 6 x 3'' - 0.8'' VC
  • Built-in Amplifier LF/HF: 600 - 400W RMS
  • Maximum SPL: 129dB
  • Material: Baltic birch plywood

LIGHTWEIGHT, POWERFUL & PRATICAL

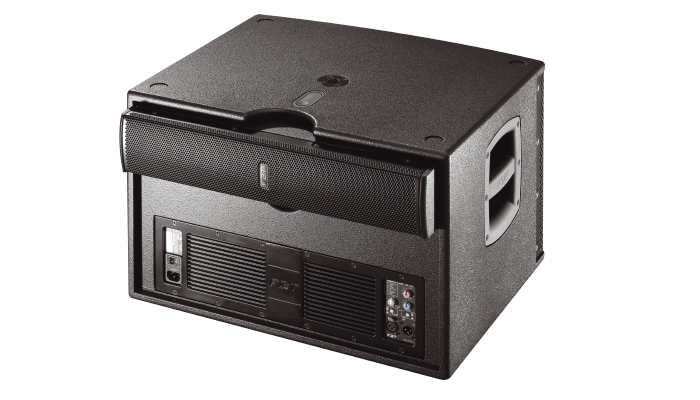

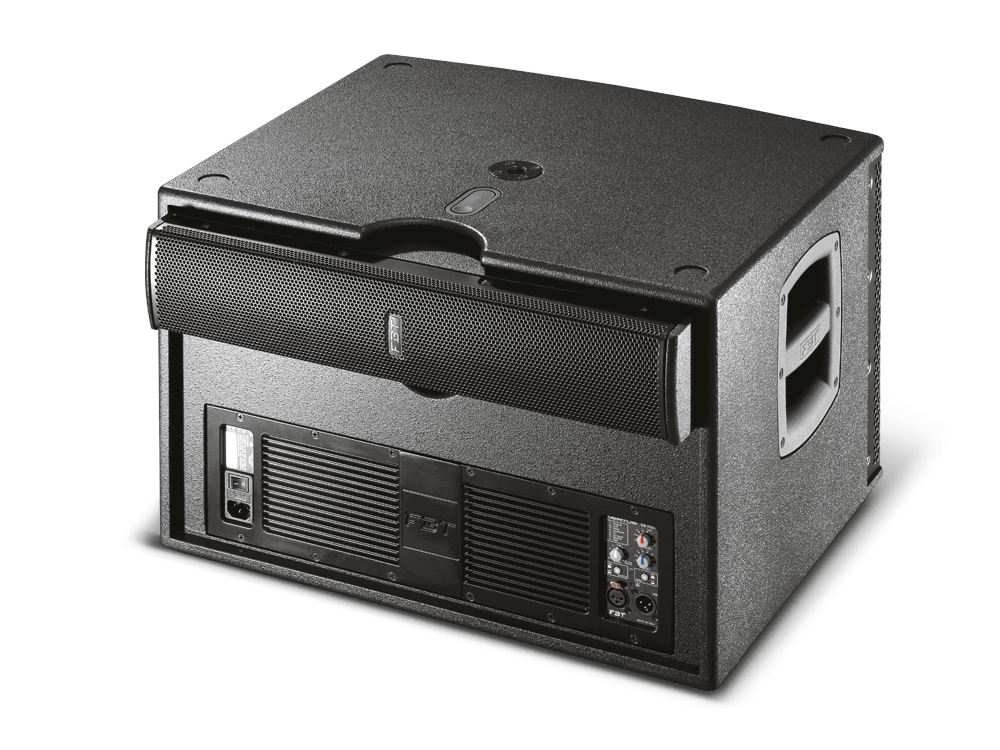

Vertus CS 1000 combines cutting-edge technology with an elegant and modern design. Thanks to the possibility of being stored in a single easily transportable cabinet, this system is extremely practical and suitable for intensive use. Perfect for those looking for a reliable audio system that enhances the listening quality in any location.

Technical specifications
Code: 640 VA
Built-in amplifier LF/HF: 600/400 W RMS
Built-in amplifier peak LF/HF: 1200/800 W
Frequency response: 40Hz - 20KHz -6dB
Low frequency woofer: 12 - 2.5 coil inch
High frequency driver: 6 x 3 - 0.8 coil neodymium inch
Maximum SPL cont/peak: 125/129 dB
Dispersion: 110° x 30° H x V
Input impedance: 22 Kohm
Crossover frequency: 180 KHz
Ac power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5/16.4 mm/inch
Net Dimension (WxHxD): satellite 105x530x120 / 4.13x20.86x4.72 Subwoofer 565x373x450 / 22.24x14.68x17.71 mm/inch
Net weight: Satellite 3.5/7.71 Subwoofer 22.4/49.38 kg/lb
Transport Dimension (WxHxD): 695x473x580 / 27.36x18.62x22.83 mm/inch
Transport weight: 33.5/73.85 kg/lb

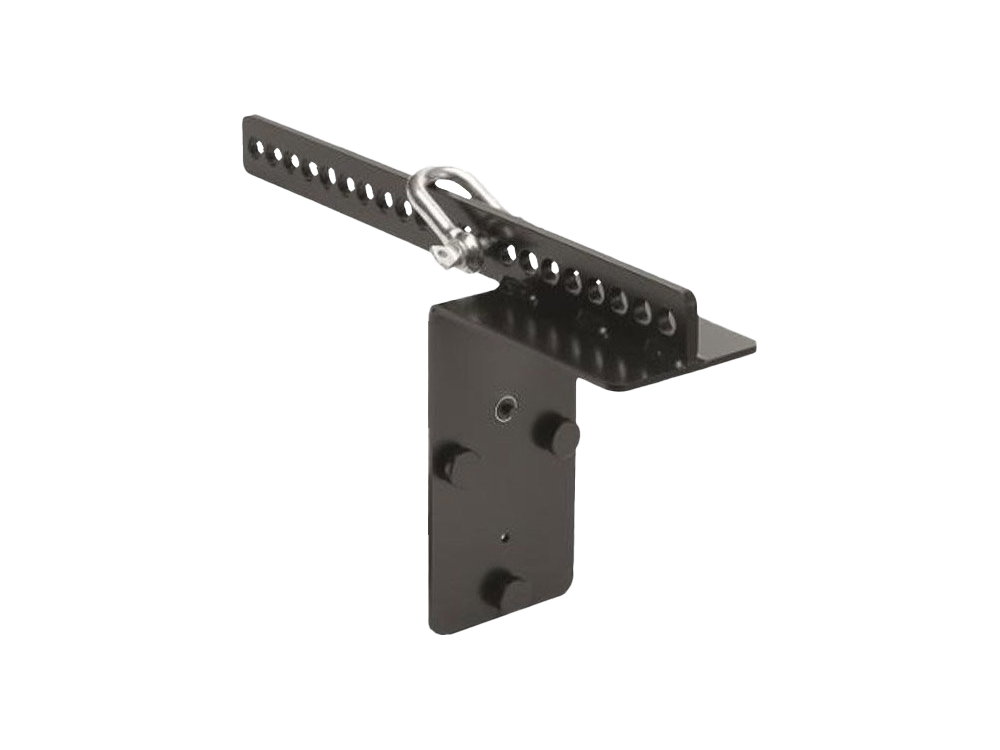

Accessories
VT-F 1000
VT-J 1000

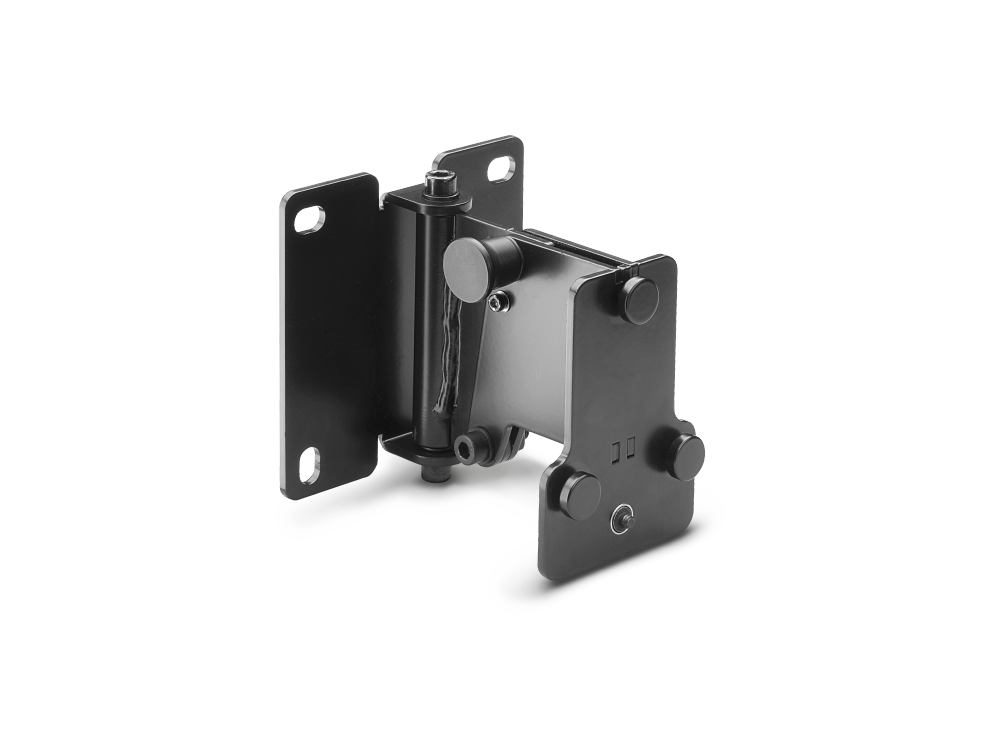

VT-W 1000
