Vertus CLA 604A is a 2-way bi-amplified line array that offers great power and dynamics thanks to its tri-amplification. The system is composed of 6 custom 100mm (4") woofers with a 25mm coil and 4 neodymium 25mm (1") dome tweeters on a waveguide, ensuring a frequency response from 130Hz to 20KHz. The class D amplifiers provide 400W RMS for LF and 100W RMS for HF with a switching power supply, ensuring a long sound range and better SPL distribution in the listening area. The Vertus CLA 604A is equipped with a DSP processor with 4 EQ presets, ensuring the best sound optimization in any situation. The extruded aluminum cabinet with powder coating ensures great durability over time. The upper and lower attachment system allows you to extend the length of the line array by adding CLA604A modules for great system modularity. In addition, it is possible to angle the columns by +/- 30° on the plane for greater flexibility in system use.

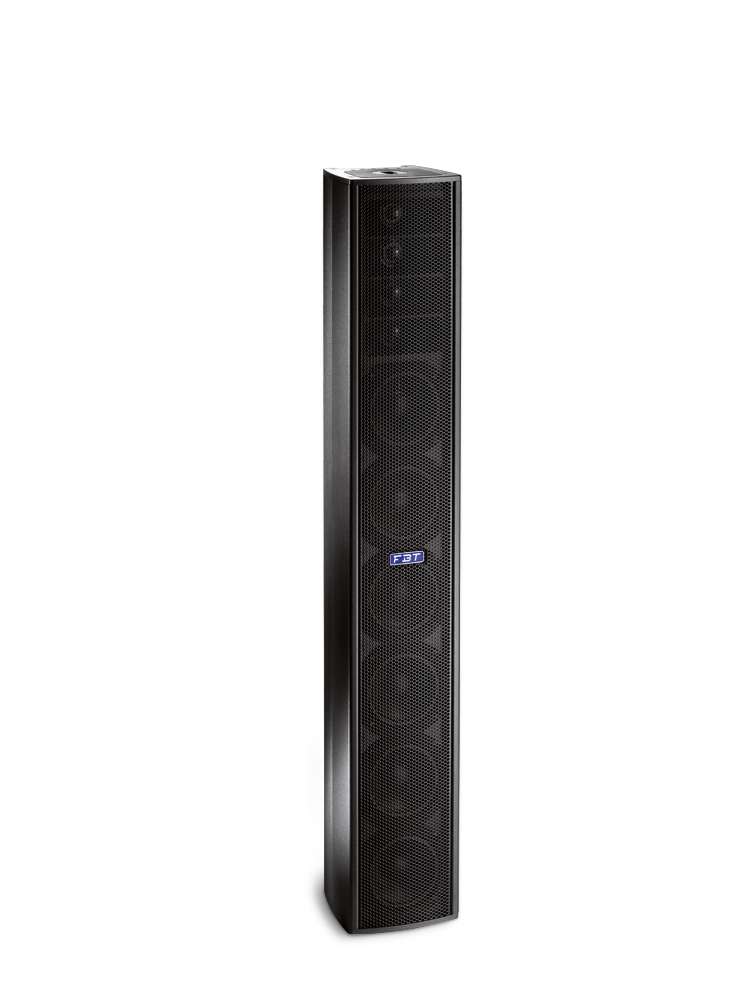

VERTUS CLA 604A
Active Column Line Array
digital processor
switch mode power supply
neodymium driver
Click on the image to zoom
- Configuration: 2 way bi-amplified
- Low Frequency Woofer: 6 x 4'' - 1'' VC
- High Frequency Driver: 4 x 1'' - 1'' VC
- Built-in Amplifier LF/HF: 800 - 200W RMS
- Maximum SPL: 125dB
- Material: Aluminium
The Vertus CLA 604A is a high-quality professional line array, ideal for applications that require great power and uniform sound distribution in the listening area. Thanks to its modularity, it is able to meet the needs of any type of event, from small concerts to large international shows. Available also in white color.
Technical specifications
Code:
34549 (Black) / 36892 (White)
Built-in amplifier LF/HF:
400/100 W RMS
Built-in amplifier peak LF/HF:
800/200 W
Frequency response:
130Hz- 20kHz - @6dB
Low frequency woofer:
6 x 4" / 1" VC
High frequency driver:
4 x 1" / 1" VC
Maximum SPL cont/peak:
122/125 dB
Dispersion:
100° x 20° HxV
Input impedance:
22 Kohm
Crossover frequency:
2.5 KHz
Ac power requirements:
450 VA
Input connector:
XLR with loop
Power cord:
16.4 inch / 5 mt
Net Dimension (WxHxD):
130x841x130 mm / 5.12x33.1x5.12 inch
Net weight:
10,5 Kg / 23,14 Lb
Transport Dimension (WxHxD):
220x930x220 mm / 8.66x36.61x8.66 inch
Transport weight:
11,5 Kg / 25,35 Lb
