The Vertus CLA 118SA is a active subwoofer in bass-reflex design with a 460mm (18") woofer from B&C in a bass reflex port with an extensive laminar airflow, minimizing turbulence and power compression. The Vertus CLA 406A amplifier module has a die-cast aluminum with natural convection 600W for LF section and 300W for HF Class D switching power. Latest generation DSP algorithms offer 8 presets, ensuring that you will achieve the perfect sound in every application, plus generous headroom for maximum reliability and signal integrity. The cabinet made in birch plywood equipped with two aluminum handles with rubber inserts and 12 anchor points, all of which combine to make the system extremely easy to carry.

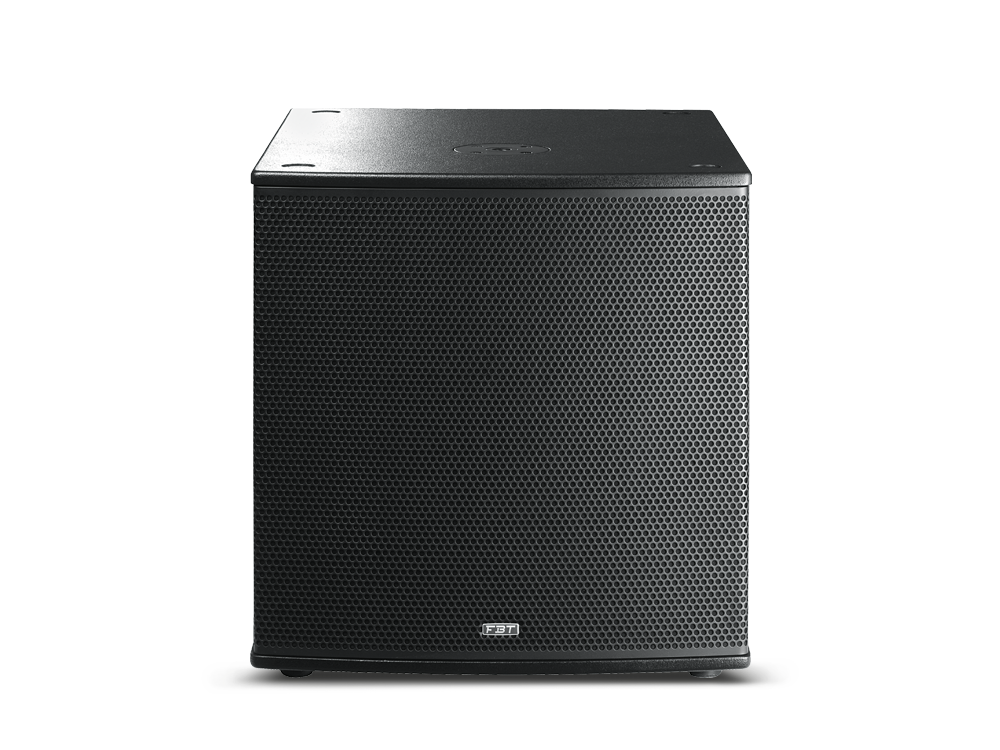

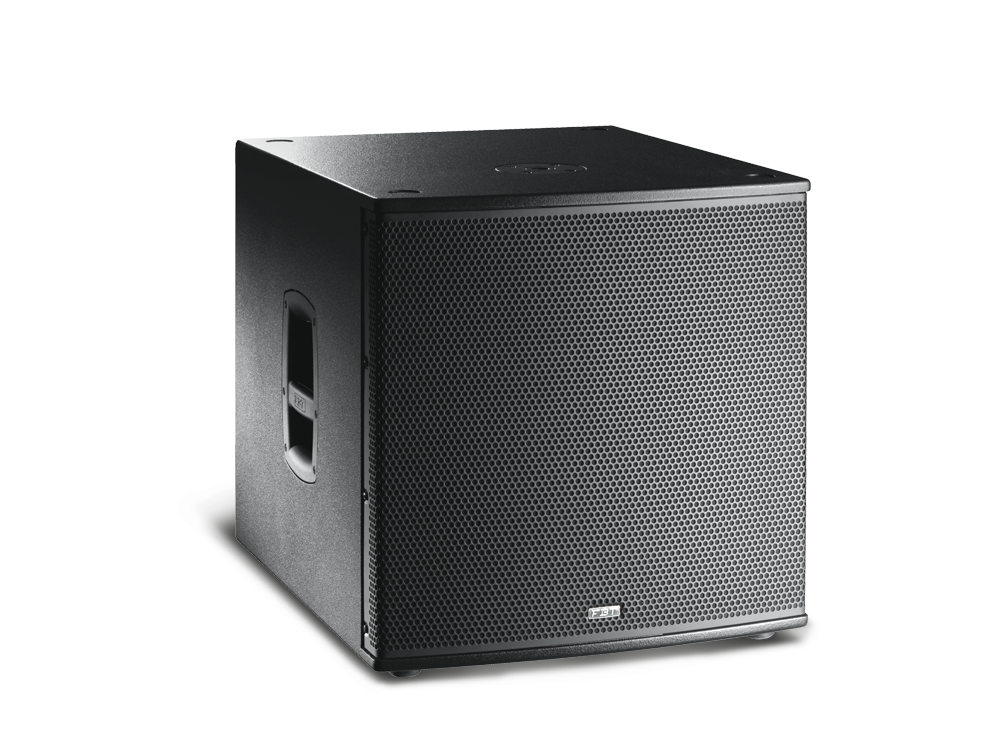

VERTUS CLA 118SA
PROCESSED ACTIVE SUBWOOFER
digital processor
switch mode power supply
flying hardware
permanent installations
pwm amplifier
Click on the image to zoom
- Configuration: Bass reflex
- Low Frequency Woofer: 1 x 18'' - 3'' VC
- Built-in Amplifier: 1200W RMS
- Maximum SPL: 138dB half space
- Material: Baltic birch plywood
Technical specifications
Code:
39681
Configuration:
1 reflex way
Built-in amplifier LF/HF:
1200 W RMS
Built-in amplifier peak LF/HF:
2400 W
Frequency response:
33Hz - 120Hz -6dB
Low Frequency woofer:
1x18 -3 coil inch
Maximum SPL cont/peak:
134/138 half-space dB
Dispersion:
omnidirectional HxV
Input impedance:
22 Kohm
Crossover Frequency:
preset dependant KHz
AC Power requirements:
640 VA
Input connector:
XLR with loop
Power cord:
5 / 16.4 m/ft
Net Dimension (WxHxD):
550x550x660 / 21.65x21.65x25.98 mm/inch
Net Weight:
40/88.18 kg/lb
Transport Dimension (WxHxD):
700x700x800 / 27.55x27.55x31.49 mm/inch
Transport Weight:
50/110.23 Kg/lb
