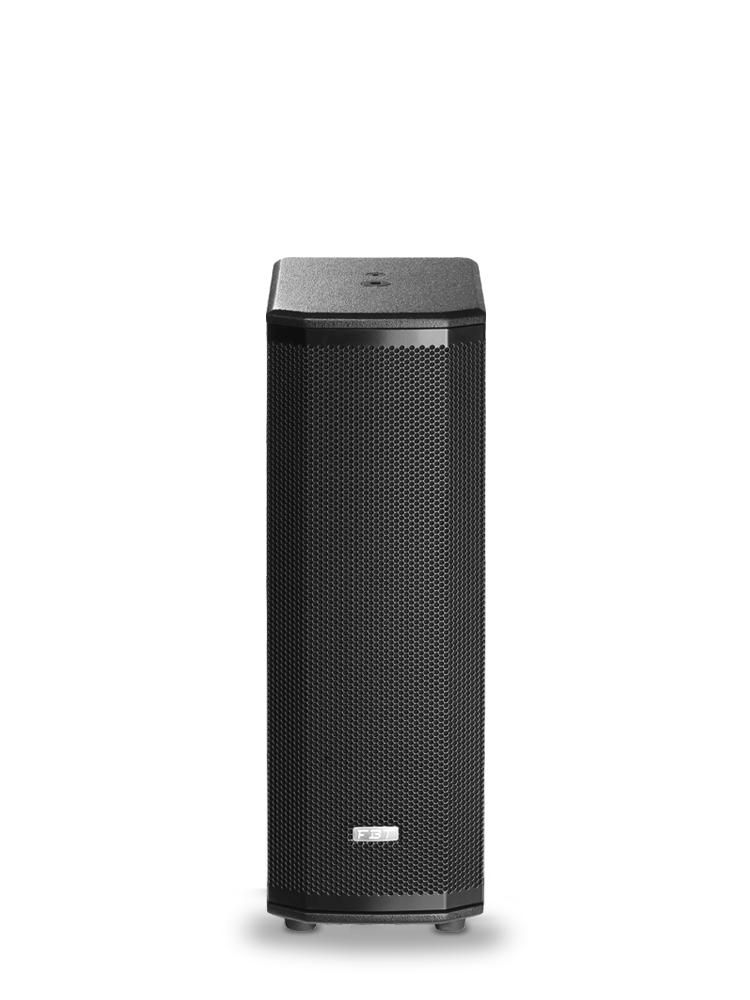

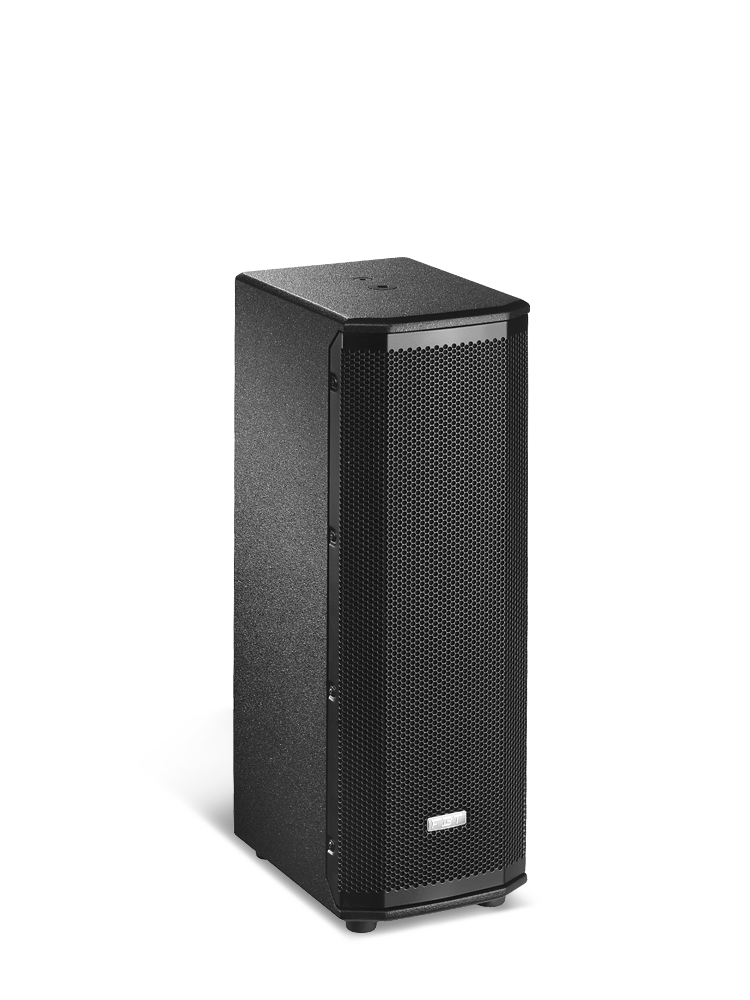

Ventis 206A is a bi-amplified point source crafted with a birch plywood cabinet scratch resistant enclosure and internal bracing.
Rotatable horns for optimal horizontal or vertical sound dispersion angle. The 70° H x 50° V coverage of this 2 woofers 6.5" LF / 1" HF point source delivers in the listening area up to 124/131 dB SPL. Frequency response from 70Hz to 20kHz. B&C compression drivers and FBT’s own custom, long excursion woofers. Power for the active Ventis models: switching mode amplifier module LF/HF of 700W/200W RMS in Class-D topology and in Class-H/AB designed in Italy. Flexible mounting hardware and different accessories for ease of installation. Equipped with 1.38" pole mount socket. 45° sloped profile for unobtrusive placement on-stage as a monitor.
The integrated rear handle makes the Ventis 206 easy to carry and safe to install. In addition, Ventis 206 offers a mounting bracket (optional). Ventis 206A can be deployed as a front fill, an under-balcony fill, as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer.
The on-board DSP is located on the rear of each enclosure, a menu-driven system is navigated via a single rotary control with push-to-select functionality. Users can choose between a total of 6 pre-optimised settings: Original, Hi-cut/Drumfill, Lo-cut/Twin, Touring, Vocal e FOH. Besides, 2 further slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, a low, medium, high and a lag line between 0 and 3.5 meters. Users can also choose between two limiter modes, MAXSPL or MAX QUALITY.
The Ventis series offers a wide range of loudspeakers built in birch plywood, as suitable for fixed installation as they are for use on the stage. The series comprises five point sources and two monitors available in either passive (Ventis 206, 115, 112, 110, 108, 115M and 112M) or bi-amplified versions (Ventis 206A, 115A, 112A, 110A,108A, 115MA and 112MA).
