VENTIS 206

PASSIVE POINT SOURCE

digital processor

pole mounted

permanent installations

Click on the image to zoom

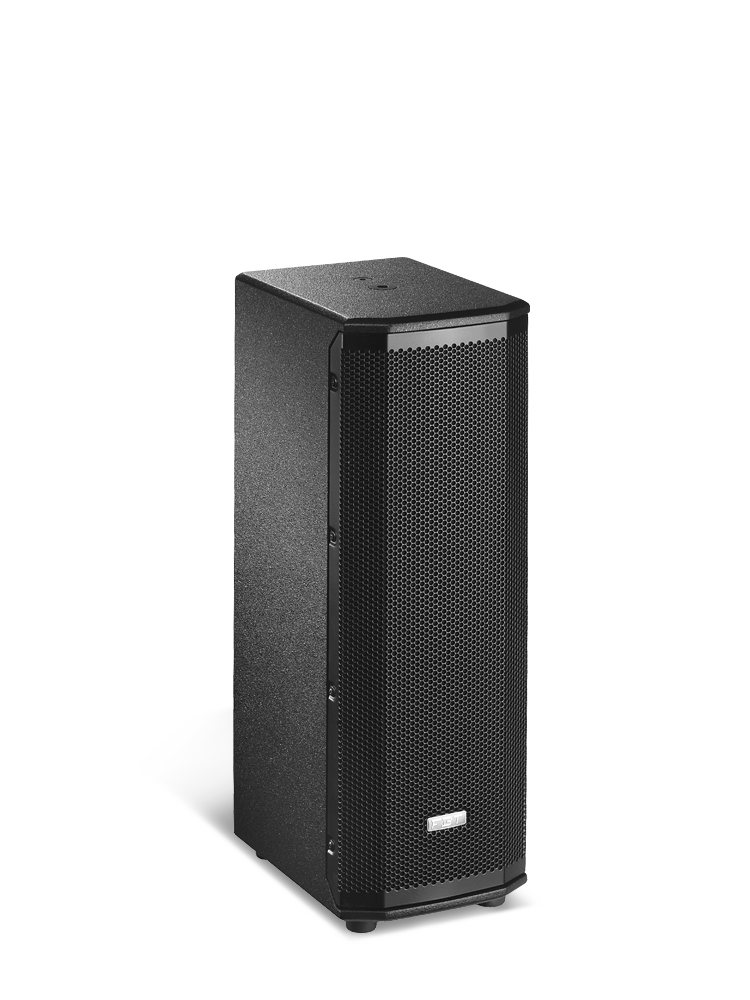

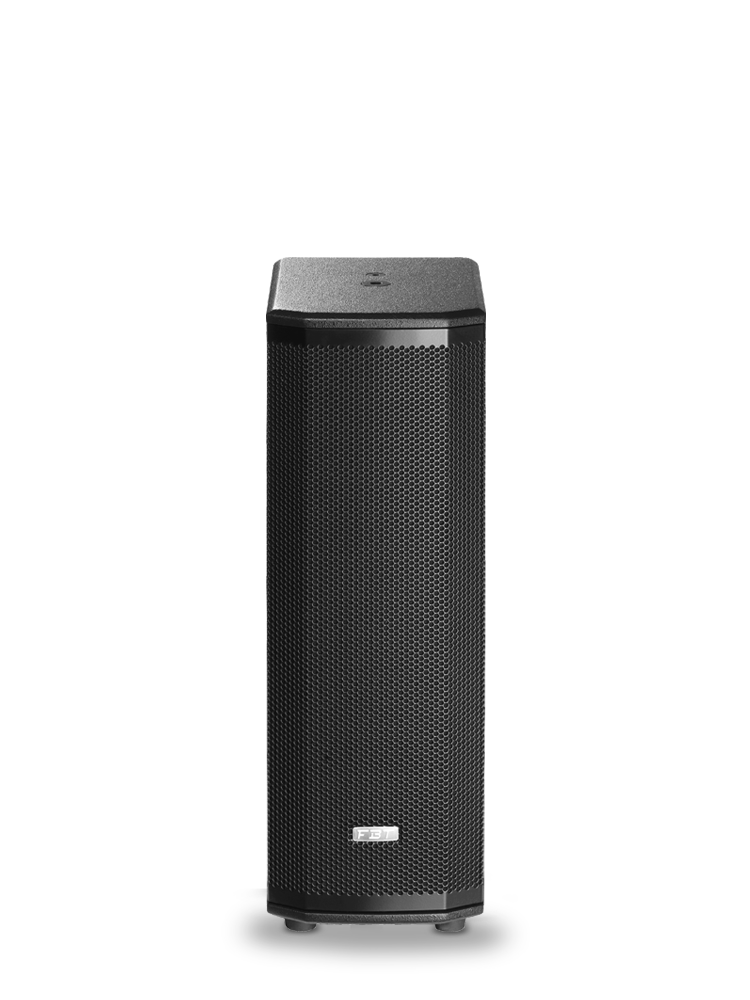

Ventis 206 is a 2 way, bass reflex passive point source crafted with a birch plywood cabinet, scratch resistant enclosure and internal bracing.

Recommended amplifier 400W RMS. Rotatable horns for optimal horizontal or vertical sound dispersion angle. The 70° H x 50° V coverage of this 2 woofers 6.5" LF / 1" HF point source delivers in the listening area up to 123/127 dB SPL. Frequency response from 75Hz to 20kHz. Built-in passive crossover with soft-trip protection for the LF woofer and HF driver. B&C compression drivers and FBT’s own custom, long excursion woofers. Flexible mounting hardware and different accessories for ease of installation. Equipped with 1.38" pole mount socket. 45° sloped profile for unobtrusive placement on-stage as a monitor.

The integrated rear handle makes the Ventis 206 easy to carry and safe to install. In addition, Ventis 206 offers a mounting bracket (optional). Ventis 206 can be deployed as a front fill, an under-balcony fill, as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer.

The Ventis series offers a wide range of loudspeakers built in birch plywood, as suitable for fixed installation as they are for use on the stage. The series comprises five point sources and two monitors available in either passive (Ventis 206, 115, 112, 110, 108, 115M and 112M) or bi-amplified versions (Ventis 206A, 115A, 112A, 110A,108A, 115MA and 112MA).

  • Configuration: 2 way
  • Low Frequency Woofer: 2 x 6.5'' - 1.5'' VC
  • High Frequency Driver: 1 x 1'' - 1.4'' VC
  • Recommended Amplifier: 400W RMS
  • Maximum SPL: 127dB
  • Material: Baltic birch plywood


Technical specifications
Code: 40679
Configuration: 2 way
Recommended amplifier: 400 W RMS
Long Term power: 200 W
Short term power: 800 W
Nominal impedance: 8 ohm
Frequency response: 75Hz - 20KHz -6dB
Low Frequency woofer: 2x6.5 - 1.5 coil inch
High frequency driver: 1 - 1.4 coil inch
Sensitivity (@1W/1m): 97 dB
Maximum SPL cont/peak: 123/127 dB
Dispersion: 70° x 50° rotatable HxV
Crossover Frequency: 2
Recommended HP filter: HP 60Hz - 12-24dB/oct
Recommended external filter: FBT DLM26
Input connector: 2 x SPEAKON
Net Dimension (WxHxD): 190x560x260 / 7.48x22.04x10.23 mm/inch
Net Weight: 11.8/26.01 kg/lb
Accessories
VN-U206
