VENTIS 115MA

ACTIVE REINFORCEMENT MONITOR

digital processor

pole mounted

switch mode power supply

Click on the image to zoom

Description Technical specifications Download Accessories Related products

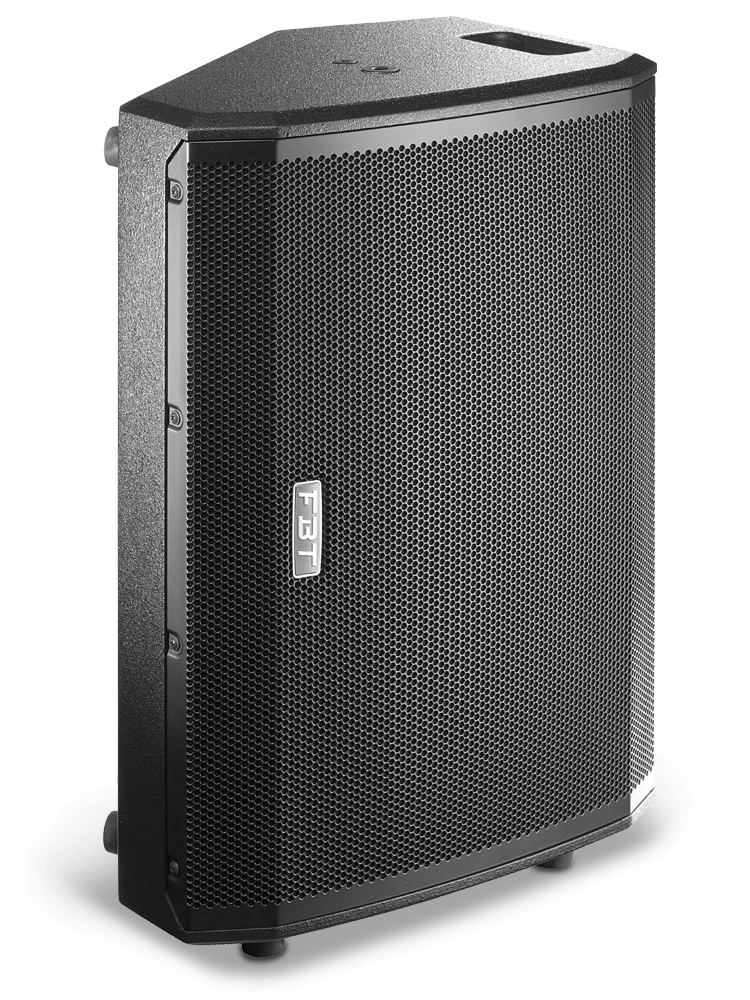

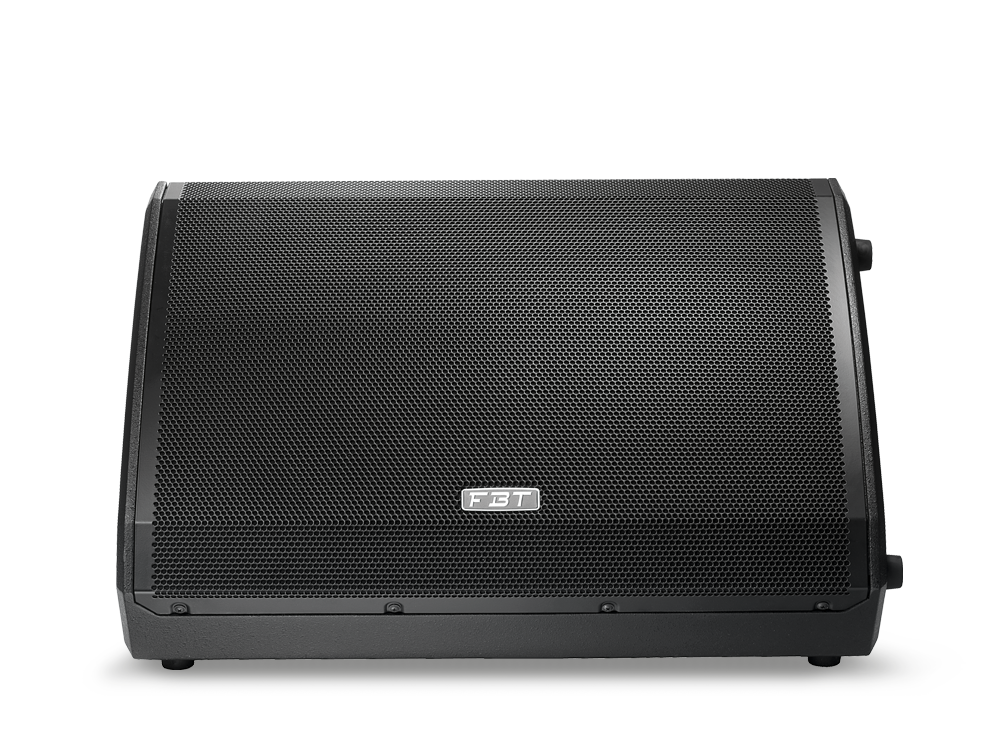

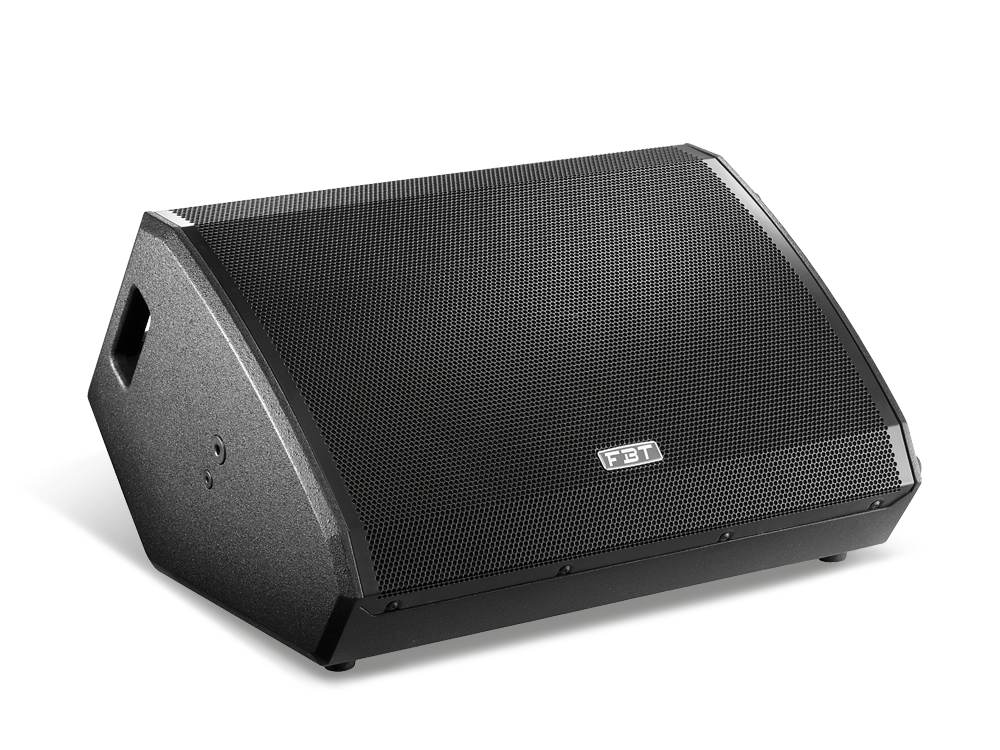

Ventis 115MA is a bi-amplified monitor crafted with a birch plywood cabinet scratch resistant enclosure and internal bracing.

The 90° constant directivity of this coaxial monitor with 15" LF / 1" HF delivers in the listening area up to 127/132 dB SPL. Frequency response from 50Hz to 20kHz. Power for the active Ventis models: switching mode amplifier module LF/HF of 700W/200W RMS in Class-D topology and in Class-H/AB designed in Italy. Equipped with B&C custom transducers. Includes two wooden handles for easy transportation. Equipped with 1.38" pole mount socket. The flexibility of this monitor makes it as suitable for fixed installation as it is for use on the stage as FOH, thanks to a 1.38" pole mount socket and inserts for optional U bracket.

Configuration: 2 way bass-reflex
Low Frequency Woofer: 1 x 12'' - 2.5''VC
High Frequency Driver: 1 x 1'' - 1.7'' VC
Built-in Amplifier LF/HF: 700 - 200W RMS
Maximum SPL: 132dB
Material: Baltic birch plywood

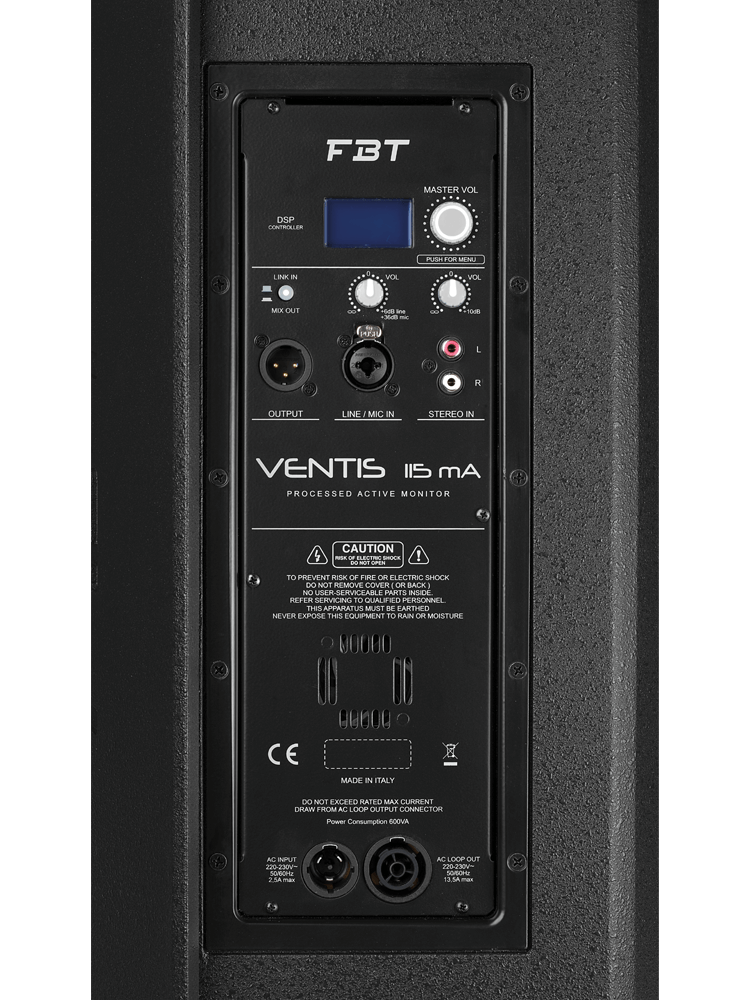

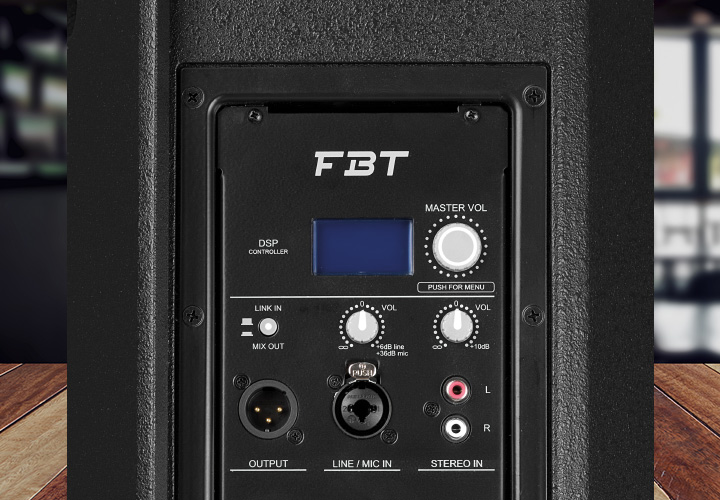

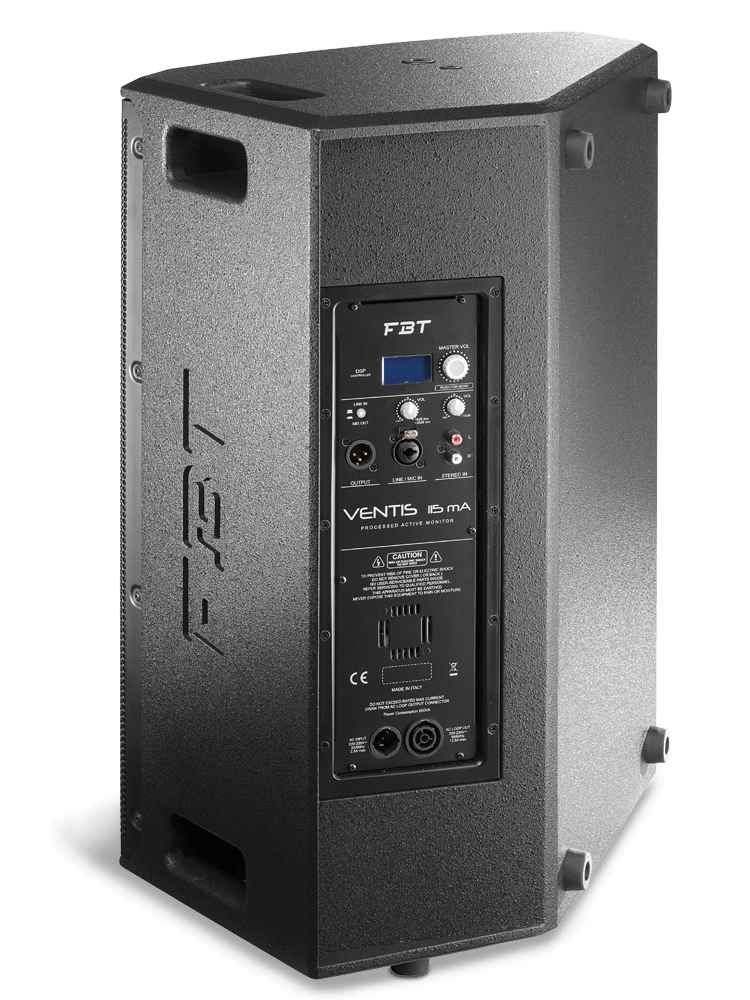

The on-board DSP is located on the rear of each enclosure, a menu-driven system is navigated via a single rotary control with push-to-select functionality. Users can choose between a total of 6 pre-optimised settings: Original, Hi-cut/Drumfill, Lo-cut/Twin, Touring, Vocal e FOH. Besides, 2 further slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, a low, medium, high and a lag line between 0 and 3.5 meters. Users can also choose between two limiter modes, MAXSPL or MAX QUALITY.

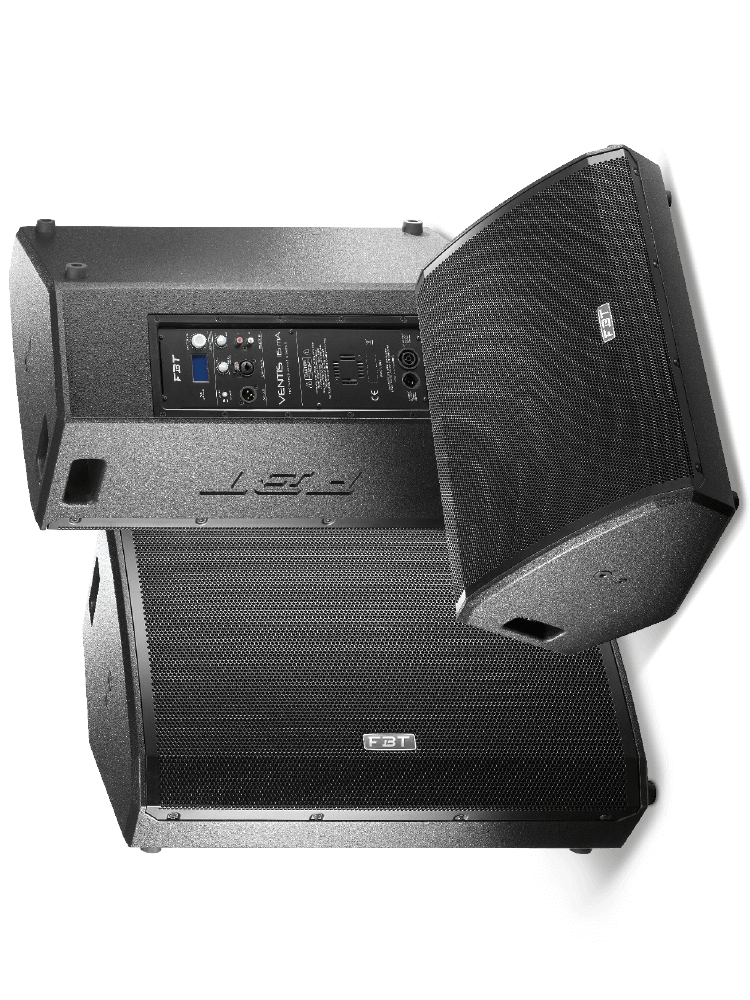

The Ventis series offers a wide range of loudspeakers built in birch plywood, as suitable for fixed installation as they are for use on the stage. The series comprises five point sources and two monitors available in either passive (Ventis 206, 115, 112, 110, 108, 115M and 112M) or bi-amplified versions (Ventis 206A, 115A, 112A, 110A,108A, 115MA and 112MA).
