VENTIS 115M

PASSIVE REINFORCEMENT MONITOR

pole mounted

Click on the image to zoom

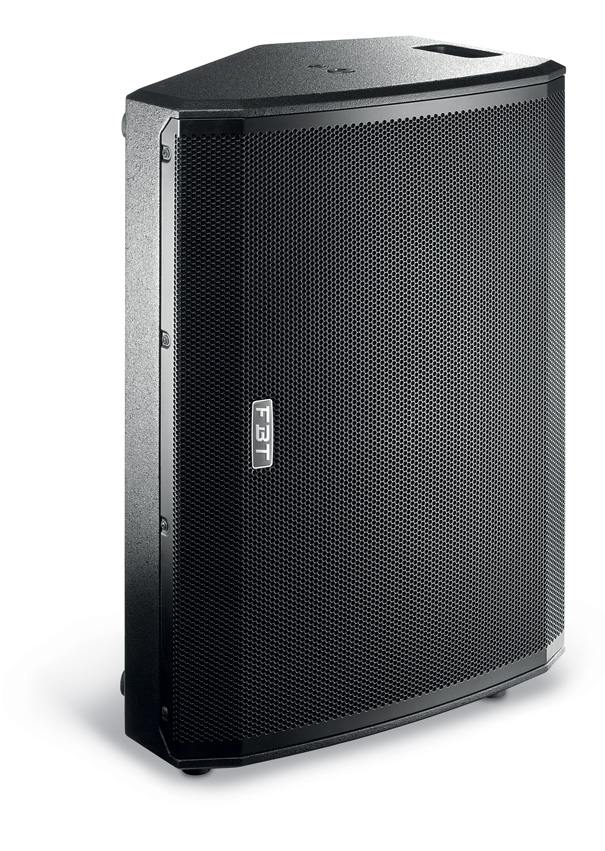

Ventis 115M is a passive monitor crafted with a birch plywood cabinet scratch resistant enclosure and internal bracing.

Recommended amplifier 500W RMS. The 90° constant directivity of this coaxial monitor with 15" LF / 1" HF delivers in the listening area up to 126/130 dB SPL. Frequency response from 55Hz to 18kHz. Built-in passive crossover with soft-trip protection for the LF woofer and HF driver. B&C compression drivers and FBT’s own custom, long excursion woofers. The flexibility of Ventis 115M makes it as suitable for fixed installation as it is for use on the stage as FOH. Includes two wooden handles. Equipped with 1.38" pole mount socket.

The Ventis series offers a wide range of loudspeakers built in birch plywood, as suitable for fixed installation as they are for use on the stage. The series comprises five point sources and two monitors available in either passive (Ventis 206, 115, 112, 110, 108, 115M and 112M) or bi-amplified versions (Ventis 206A, 115A, 112A, 110A,108A, 115MA and 112MA).

  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 15'' - 2.5'' VC
  • High Frequency Driver: 1 x 1'' - 1.7'' VC
  • Recommended Amplifier: 500W RMS
  • Maximum SPL: 130dB
  • Material: Baltic birch plywood
Technical specifications
Code: 41219
Configuration: 2 way
Recommended amplifier: 500 W RMS
Long Term power: 250 W
Short Term Power: 1000 W
Nominal impedance: 8 ohm
Frequency response: 55Hz - 18KHz -6dB
Low Frequency woofer: 15 - 2.5 coil inch
High frequency driver: 1 - 1.7 coil inch
Sensitivity (@1W/1m): 99 dB
Maximum SPL cont/peak: 126/130 dB
Dispersion: 90° HxV
Crossover Frequency: 1.4 KHz
Recommended HP filter: 50Hz - 12-24db/oct
Recommended external filter: FBT DLM 26
Input connector: 2 x SPEAKON
Net Dimension (WxHxD): 632x354x516 / 24.9x11.9x20.3 mm/inch
Accessories
VN-U115M
