VENTIS 115

PASSIVE POINT SOURCE

digital processor

pole mounted

switch mode power supply

permanent installations

Click on the image to zoom

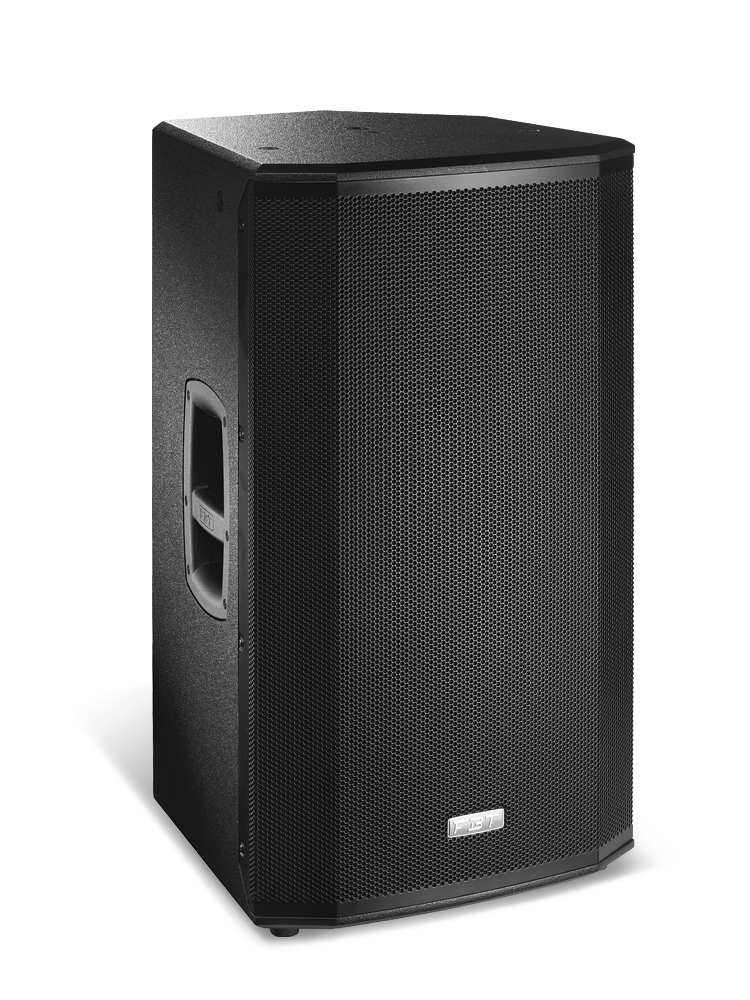

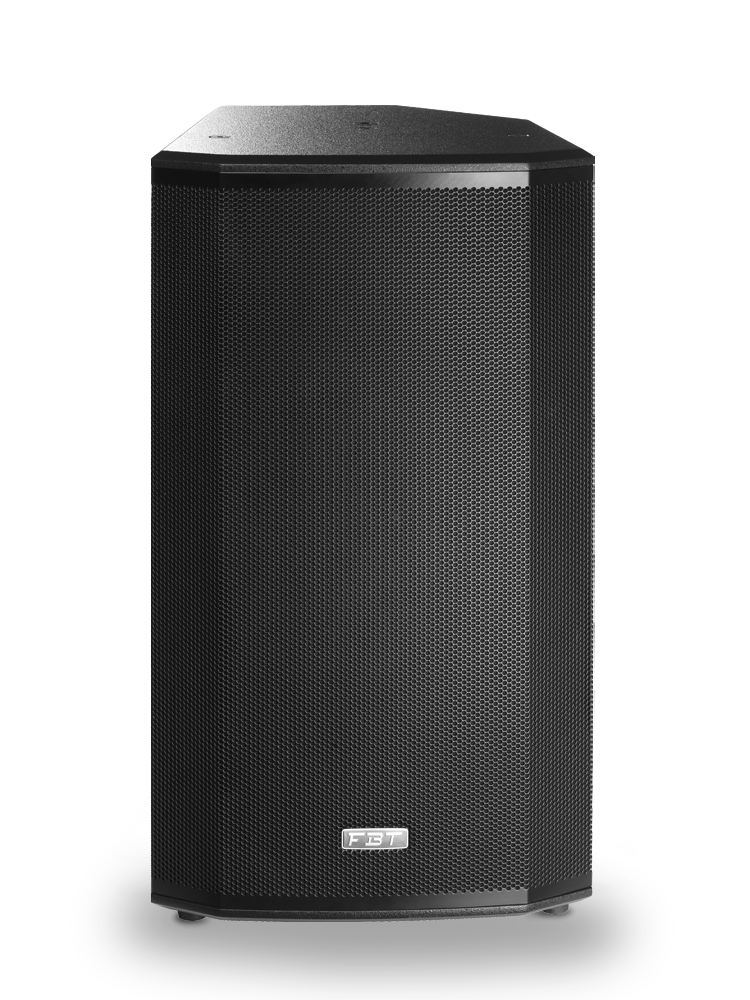

Ventis 115 is a passive point source crafted with a birch plywood cabinet scratch resistant enclosure and internal bracing.

Recommended amplifier 500W RMS. Rotatable horns for optimal horizontal or vertical sound dispersion angle. The 80° H x 50° V constant directivity of this point source 15" LF / 1" HF delivers in the listening area up to 126/130 dB SPL. Frequency response from 50Hz to 18kHz. Built-in passive crossover with soft-trip protection for the LF woofer and HF driver. B&C compression drivers and FBT’s own custom, long excursion woofers. Full suspension possibility through 6 M10 rigging points. The flexibility of Ventis 115 makes it as suitable for fixed installation as it is for use on the stage as FOH. Includes two aluminum handles with rubber inserts. Equipped with 1.38" pole mount socket and a 45° sloped profile for unobtrusive placement on-stage as a monitor.

The Ventis series offers a wide range of loudspeakers built in birch plywood, as suitable for fixed installation as they are for use on the stage. The series comprises five point sources and two monitors available in either passive (Ventis 206, 115, 112, 110, 108, 115M and 112M) or bi-amplified versions (Ventis 206A, 115A, 112A, 110A,108A, 115MA and 112MA).

  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 15'' - 2.5'' VC
  • High Frequency Driver: 1 x 1'' - 1.7'' VC
  • Recommended Amplifier: 500W RMS
  • Maximum SPL: 130dB
  • Material: Baltic birch plywood


Technical specifications
Code: 40680
Configuration: 2 way
Recommended amplifier: 500 W RMS
Long Term power: 250 W
Short term power: 1000 W
Nominal impedance: 8 ohm
Frequency response: 50Hz - 18KHz -6dB
Low Frequency woofer: 15 - 2.5 coil inch
High frequency driver: 1 - 1.7 coil inch
Sensitivity (@1W/1m): 99 dB
Maximum SPL cont/peak: 126/130 dB
Dispersion: 80° x 50° rotatable HxV
Crossover Frequency: 1.4 KHz
Recommended HP filter: HP 40 Hz - 12-24dB/oct
Recommended external filter: FBT DLM26
Input connector: 2xSpeakon
Net Dimension (WxHxD): 427x765x420 / 16.81x30.11x16.53 mm/inch
Net Weight: 24.5/54.01 kg/lb
Accessories
VN-U115
