VENTIS 112

PASSIVE POINT SOURCE

digital processor

pole mounted

permanent installations

Click on the image to zoom

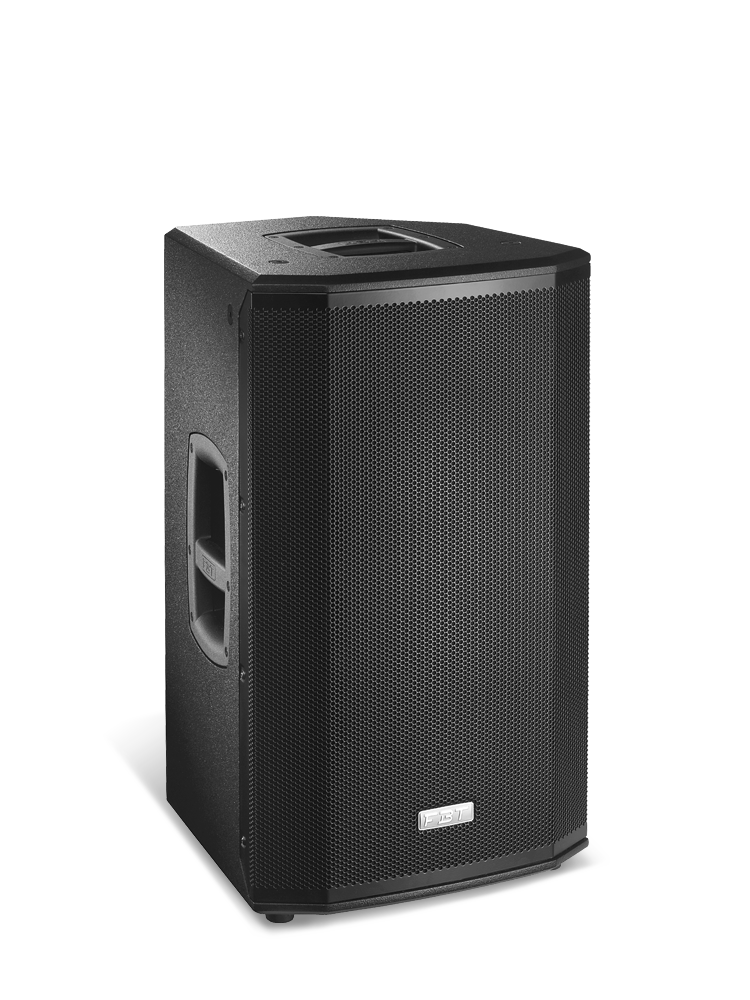

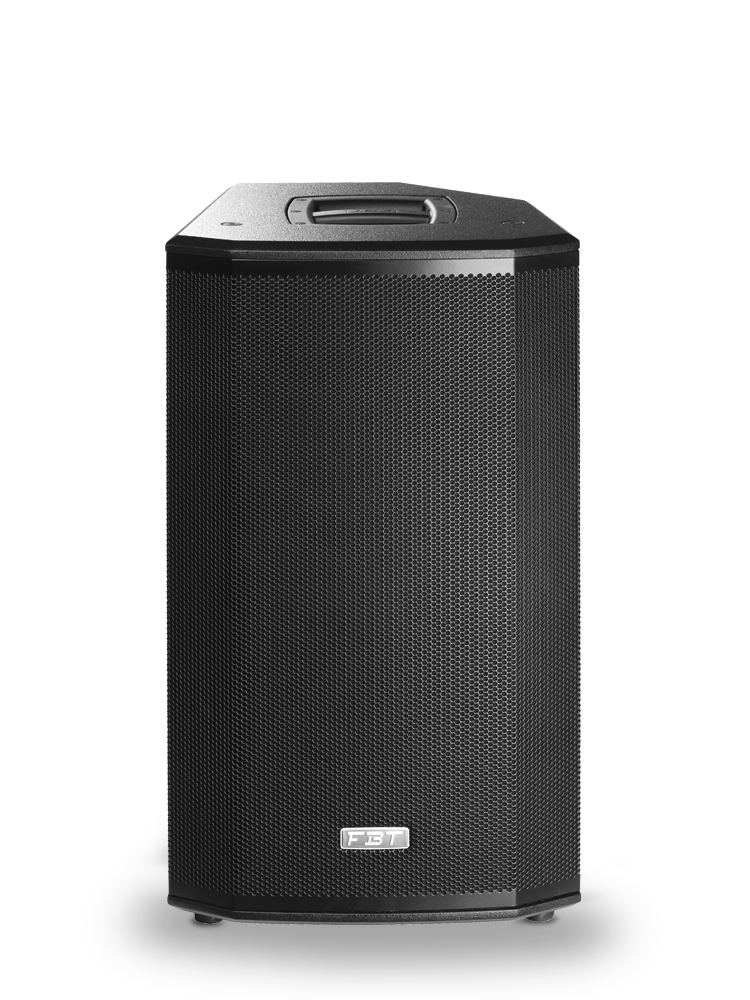

Ventis 112 is a two-way point source crafted with a birch plywood cabinet scratch resistant enclosure and internal bracing.

Recommended amplifier 400W RMS. Rotatable horns for optimal horizontal or vertical sound dispersion angle. The 80° H x 50° V constant directivity of this point source 12" LF / 1" HF delivers in the listening area up to 125/129 dB SPL. Frequency response from 55Hz to 18kHz. Built-in passive crossover with soft-trip protection for the LF woofer and HF driver. Full suspension possibility through 6 M10 rigging points. The flexibility of Ventis 112 makes it as suitable for fixed installation as it is for use on the stage as FOH. Includes aluminum handles with rubber inserts. Equipped with 1.38" pole mount socket and a 45° sloped profile for unobtrusive placement on-stage as a monitor. B&C compression drivers and FBT’s own custom, long excursion woofers.

The Ventis series offers a wide range of loudspeakers built in birch plywood, as suitable for fixed installation as they are for use on the stage. The series comprises five point sources and two monitors available in either passive (Ventis 206, 115, 112, 110, 108, 115M and 112M) or bi-amplified versions (Ventis 206A, 115A, 112A, 110A,108A, 115MA and 112MA).

  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 12'' - 2.5'' VC
  • High Frequency Driver: 1 x 1'' - 1.4'' VC
  • Recommended Amplifier: 400W RMS
  • Maximum SPL: 129dB
  • Material: Baltic birch plywood
Technical specifications
Code: 40681
Configuration: 2 way
Recommended amplifier: 400 W RMS
Long Term power: 200 W
Short term power: 800 W
Nominal impedance: 8 ohm
Frequency response: 55Hz - 18KHz -6dB
Low Frequency woofer: 12 - 2.5 coil inch
High frequency driver: 1 - 1.4 coil inch
Sensitivity (@1W/1m): 98 dB
Maximum SPL cont/peak: 125/129 dB
Dispersion: 80° x 50° HxV
Crossover Frequency: 1.6 KHz
Recommended HP filter: HP 45Hz - 12-24dB/oct
Recommended external filter: FBT DLM26
Input connector: 2 x SPEAKON
Net Dimension (WxHxD): 387x665x380 / 12.23x26.18x14.96 mm/inch
Net Weight: 20.1/44.31 kg/lb
Accessories
VN-U112
