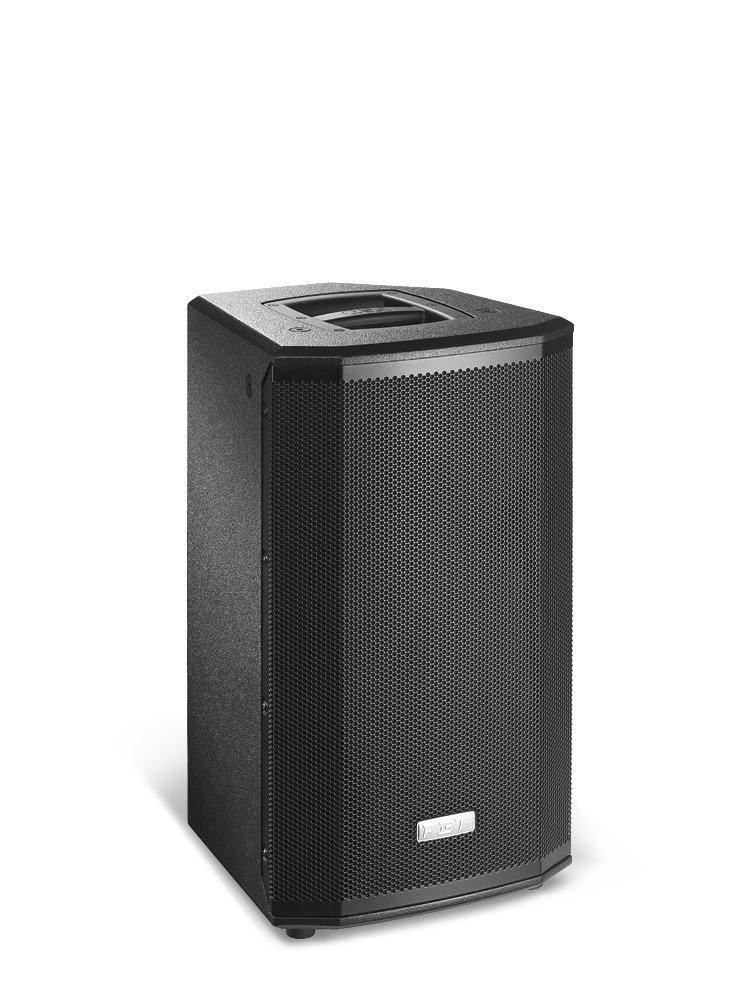

Ventis 110A is a two-way point source crafted with a birch plywood cabinet scratch resistant enclosure and internal bracing.
Rotatable horns for optimal horizontal or vertical sound dispersion angle. The 80° H x 50° V constant directivity of this point source 10" LF/1" HF delivers in the listening area up to 124/131 dB SPL. Frequency response 58Hz to 20KHz. Power for the active Ventis models: switching mode amplifier module LF/HF of 700W/200W RMS in Class-D topology and in Class-H/AB designed in Italy.Equipped with B&C compression drivers and FBT’s own custom, long excursion woofers. Full suspension possibility through 6 M10 rigging points. The flexibility of Ventis 110A makes it as suitable for fixed installation as it is for use on the stage as FOH. Includes two aluminum handles with rubber inserts. Equipped with 1.38" pole mount socket and a 45° sloped profile for unobtrusive placement on-stage as a monitor. B&C compression drivers and FBT’s own custom, long excursion woofers.
The on-board DSP is located on the rear of each enclosure, a menu-driven system is navigated via a single rotary control with push-to-select functionality. Users can choose between a total of 6 pre-optimised settings: Original/Live, Vocal, DJ, Touring, Loudness and Warm. Besides, 2 further slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, a low, medium, high and a lag line between 0 and 3.5 meters. Users can also choose between two limiter modes, MAXSPL or MAX QUALITY.
The Ventis series offers a wide range of loudspeakers built in birch plywood, as suitable for fixed installation as they are for use on the stage. The series comprises five point sources and two monitors available in either passive (Ventis 206, 115, 112, 110, 108, 115M and 112M) or bi-amplified versions (Ventis 206A, 115A, 112A, 110A,108A, 115MA and 112MA).
