SUBLINE 218SA

PROCESSED ACTIVE SUBWOOFER 1200W RMS - 140DB SPL

digital processor

switch mode power supply

pwm amplifier

Click on the image to zoom

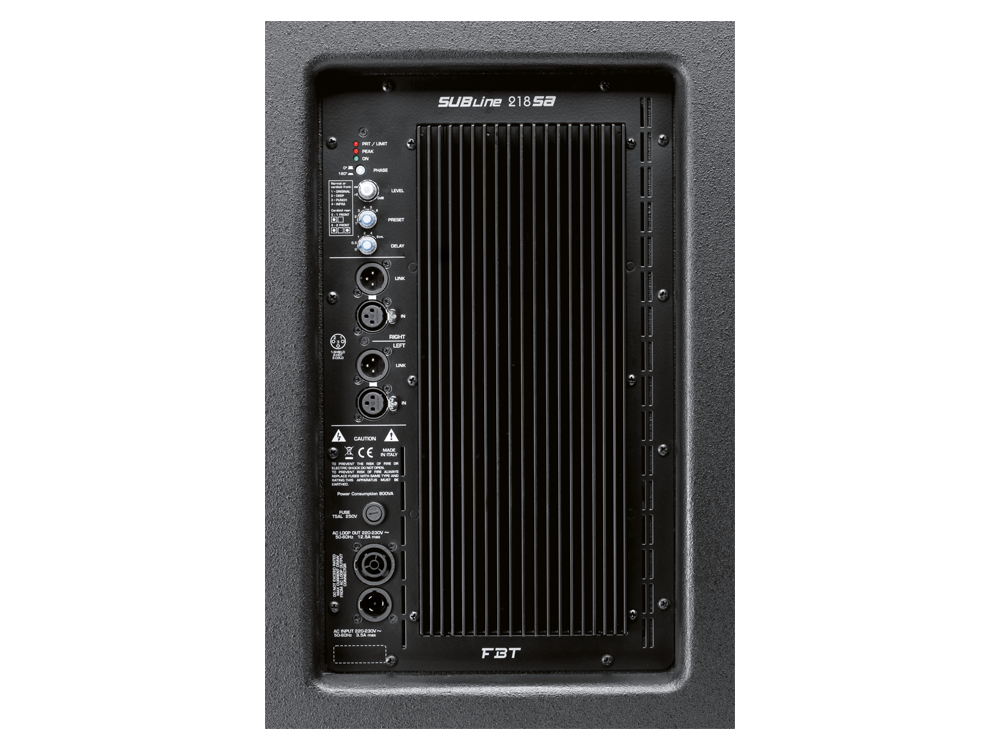

The Subline 218SA is a powerful active bass-reflex subwoofer designed to deliver exceptional sound quality for any event. This processed active subwoofer has a frequency response ranging from 30Hz to 120Hz, making it perfect for any music genre, and incorporates two 460mm (18") B&C woofers with a 75mm (3") voice coil, custom made for FBT. The subwoofer also features a 1200W RMS Class D power amplifier with switch mode power supply, ensuring that it can handle high volumes with ease. The Subline 218SA also comes equipped with DSP with 6 presets, 3 EQ with 2 LPF crossover settings, and a 6-step digital delay line, providing a range of options for users to customize their sound. The control panel features stereo XLR in/out, Volume, EQ presets, Delay, Phase reversal switch 0°-180°, and 3 status LED indicators, making it easy to adjust settings and monitor performance. The Subline 218SA is built to last, with an 18mm Baltic birch plywood enclosure with heavy-duty coating and 4 aluminum ergonomic FBT handles. It also has 2 M20 threads for stand pole mount and optional wheels for easy transportation. When used along with the Muse 210LA active line array system, the Subline 218SA provides additional low-frequency extension, creating a complete and powerful sound system.

  • Configuration: Bass reflex
  • Low Frequency Woofer: 2 x 18'' - 3'' VC
  • Built-in Amplifier: 1200W RMS
  • Maximum SPL: 140dB
  • Material: Baltic birch plywood
Technical specifications
Code: 38774
Configuration: 1 way
Built-in amplifier LF/HF: 1200 W RMS
Built-in amplifier peak LF/HF: 2400 W
Frequency response: 30Hz - 100Hz -6dB
Low Frequency woofer: 2 x 460 - bobina 75 inch
Maximum SPL cont/peak: 137 / 140 dB
Dispersion: omnidirezionale HxV
Input impedance: 22 Kohm
Crossover Frequency: 100 KHz
AC Power requirements: 800 VA
Input connector: XLR con loop
Power cord: 7 m/ft
Net Dimension (WxHxD): 975 x 661 x 670 mm/inch
Net Weight: 83 kg/lb
Transport Dimension (WxHxD): 1150 x 830 x 800 mm/inch
Transport Weight: 96 Kg/lb
