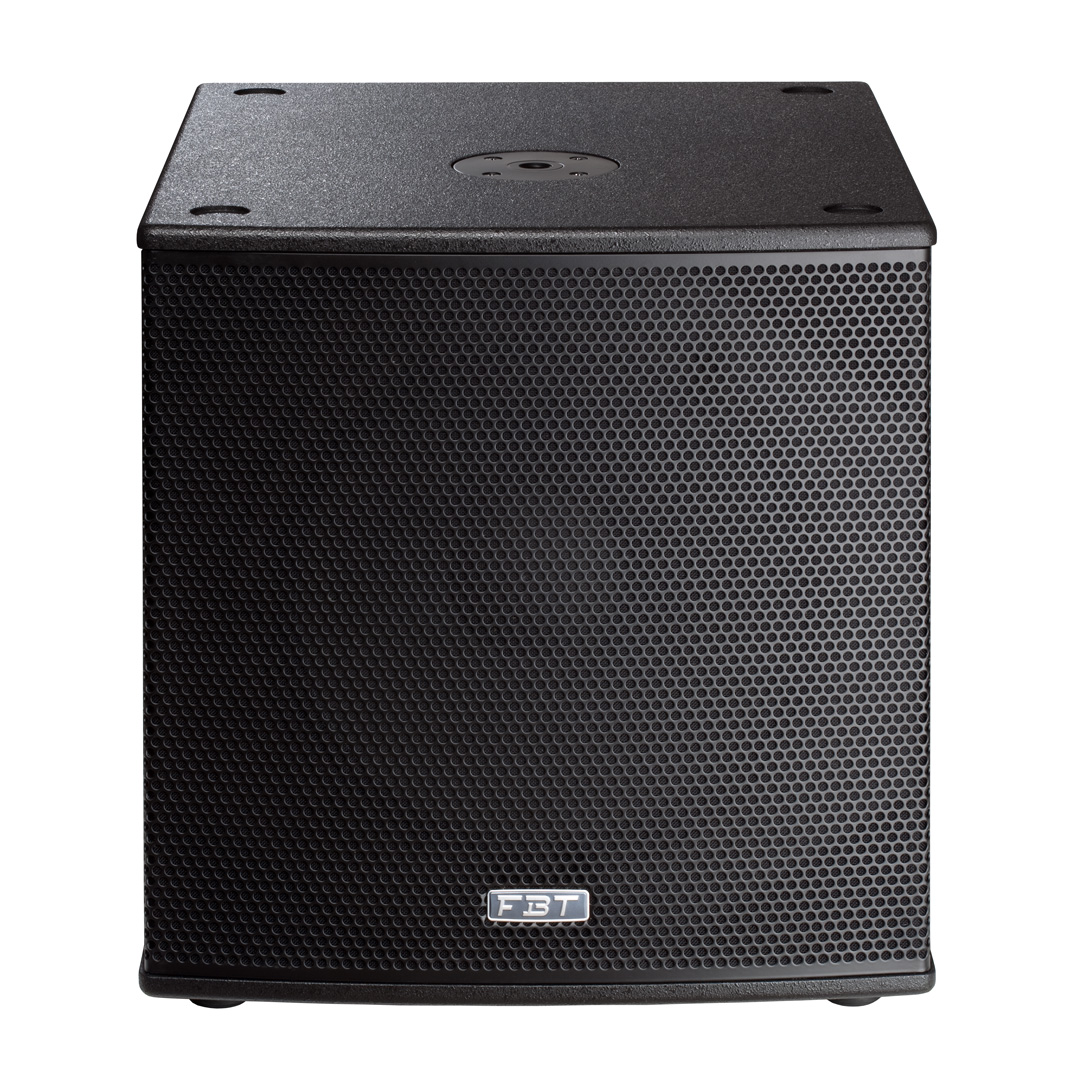

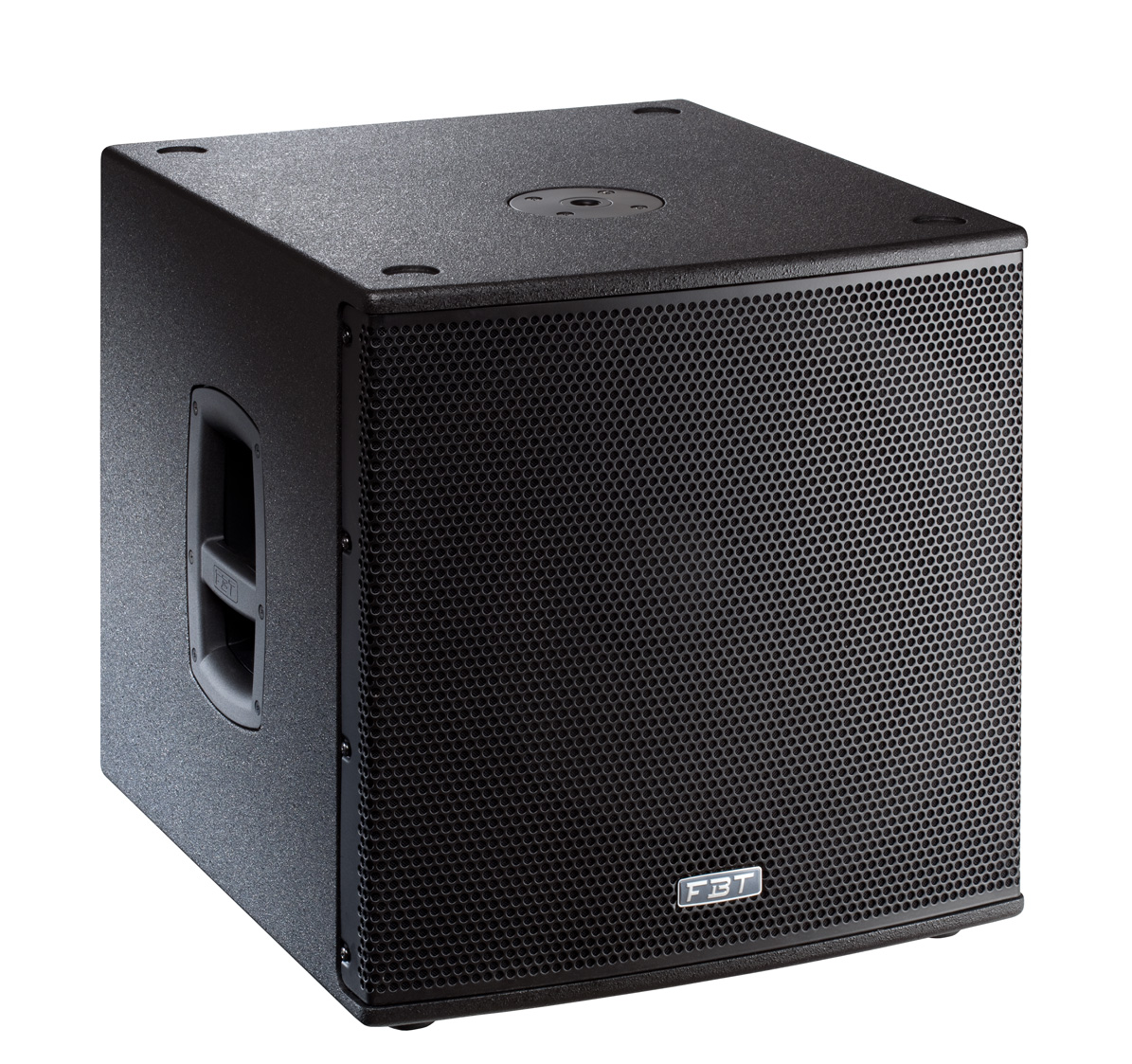

The FBT Subline 115S is a bass-reflex speaker that is designed to deliver powerful and impactful bass. With a 380mm (15”) magnet woofer and a 75mm (3”) voice coil, it can handle high excursion and deliver high sound pressure levels of 132/135 DB SPL at 700W RMS. This makes it perfect for large venues and outdoor events where powerful sound is required. The enclosure of the Subline 115S is made of 15mm (0.59”) birch plywood, which is not only scratch-resistant but also has internal bracing for added durability. It also features an M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles for easy transport. Additionally, the subwoofer comes equipped with Connettori Neutrik Speakon NL4MD-V IN & LINK OUT, making it easy to connect to other sound reinforcement systems. Overall, the FBT Subline 115S is an excellent choice for anyone looking for a powerful and durable subwoofer that delivers high-quality sound. Its design and features make it ideal for use in large venues and outdoor events where the sound needs to be heard clearly and with impact.
SUBLINE 115S
SOUND REINFORCEMENT SUBWOOFER 700W RMS - 132/135 dB SPL
Click on the image to zoom
- Configuration: Bass reflex
- Low Frequency Woofer: 1 x 15'' - 3'' VC
- Recommended Amplifier: 700W RMS
- Maximum SPL: 135dB
- Material: Baltic birch plywood
Technical specifications
Code:
omnidirectional
Configuration:
1
Recommended amplifier:
700
Long Term power:
350
Short term power:
1400
Nominal impedance:
8
Frequency response:
40Hz - 140Hz
Low Frequency woofer:
15 - 3 coil
Maximum SPL cont/peak:
132/135 half-space
Dispersion:
omnidirectional
Crossover Frequency:
FBT DLM 26
Input connector:
2 x Speakon NL4 in & throu
Net Dimension (WxHxD):
500x517x570 - 19.7x20.3x22.4
Net Weight:
26/57.3
Transport Dimension (WxHxD):
600x617x670 - 23.6x24.3x26.4
Transport Weight:
28/61.7
