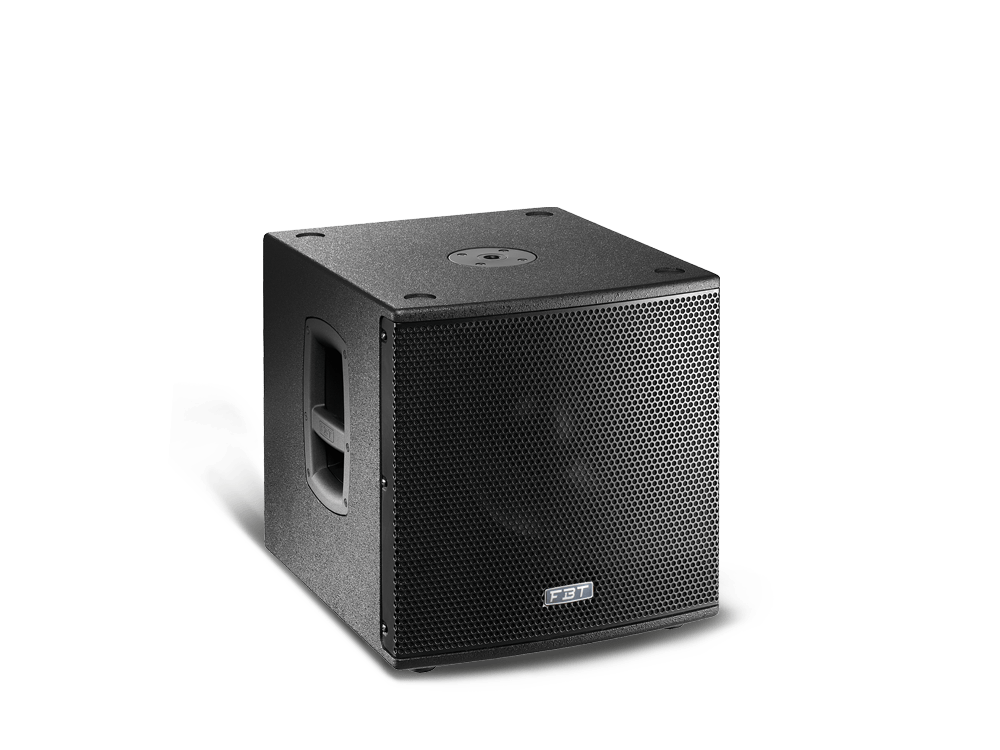

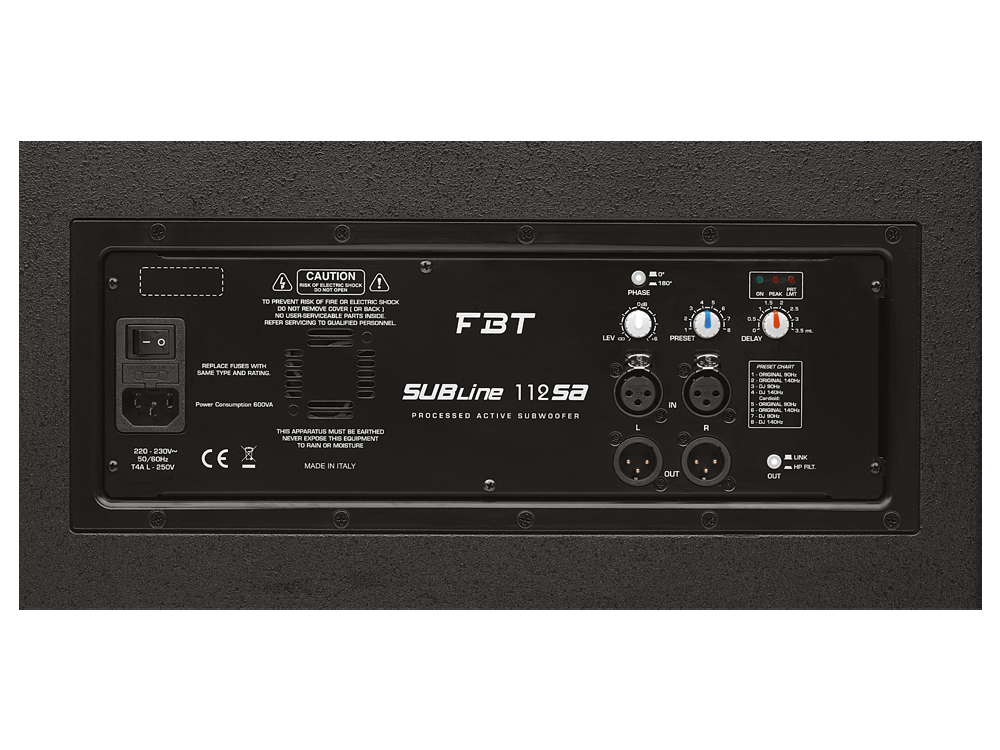

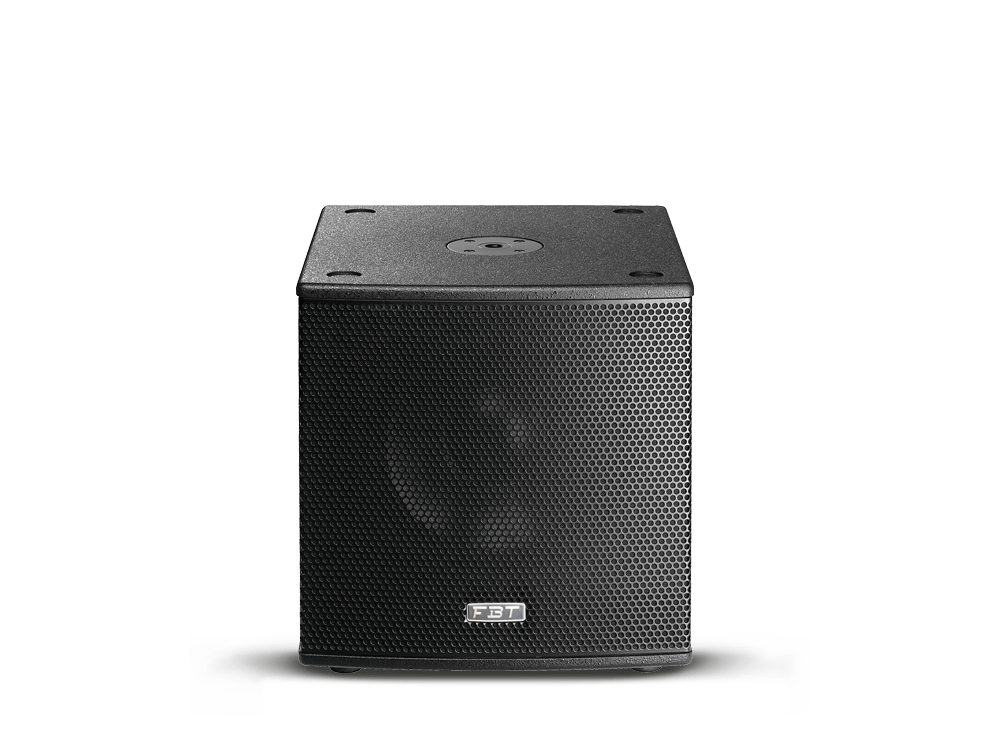

The Subline 112SA is a subwoofer that boasts a bass-reflex design and an impressive high SPL and punch. It features a 320mm (12”) high excursion magnet woofer with a 75mm (3”) voice coil, and a frequency response range of 40Hz to 140Hz. The new amplifier that powers this subwoofer is engineered and manufactured by FBT, and it delivers 700W RMS LF in Class D. The Subline 112SA also includes a digital signal processor with 8 presets, 2 equalization with 2 LPF crossover settings, and the ability to configure it in cardioid mode. The control panel features stereo XLR in/outs, volume control, EQ presets, 8-step delay from 0.25m to 3.5m, phase reversal switch 0°-180°, and 3 status LED indicators. The subwoofer is built to last with a 15mm (0.59”) birch plywood scratch-resistant enclosure with internal bracing. It also has an M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles for easy transport. Overall, the Subline 112SA is a powerful and versatile subwoofer that is perfect for any professional sound system setup.
SUBLINE 112SA
PROCESSED ACTIVE SUBWOOFER 700W RMS - 130/133DB SPL
digital processor
Click on the image to zoom
- Configuration: Bass reflex
- Low Frequency Woofer: 1 x 12'' - 3'' VC
- Built-in Amplifier: 700W RMS
- Maximum SPL: 133dB
- Material: Baltic birch plywood
Technical specifications
Code:
41223
Configuration:
1 way
Built-in amplifier LF/HF:
700 W RMS
Built-in amplifier peak LF/HF:
1400 W
Frequency response:
42Hz - 140Hz -6dB
Low Frequency woofer:
12 - 2.5 coil inch
Maximum SPL cont/peak:
129/133 half-space dB
Dispersion:
omnidirectional HxV
Input impedance:
22 Kohm
Crossover Frequency:
90 or 140Hz KHz
AC Power requirements:
640 VA
Input connector:
stereo XLR with loop, HP out
Power cord:
5/16.4 m/ft
Net Dimension (WxHxD):
430x447x480 / 16.9x21.5x18.9 mm/inch
Net Weight:
23./50.7 kg/lb
Transport Dimension (WxHxD):
530x547x580 / 20.9x21.5x22.8 mm/inch
Transport Weight:
27/59.5 Kg/lb
