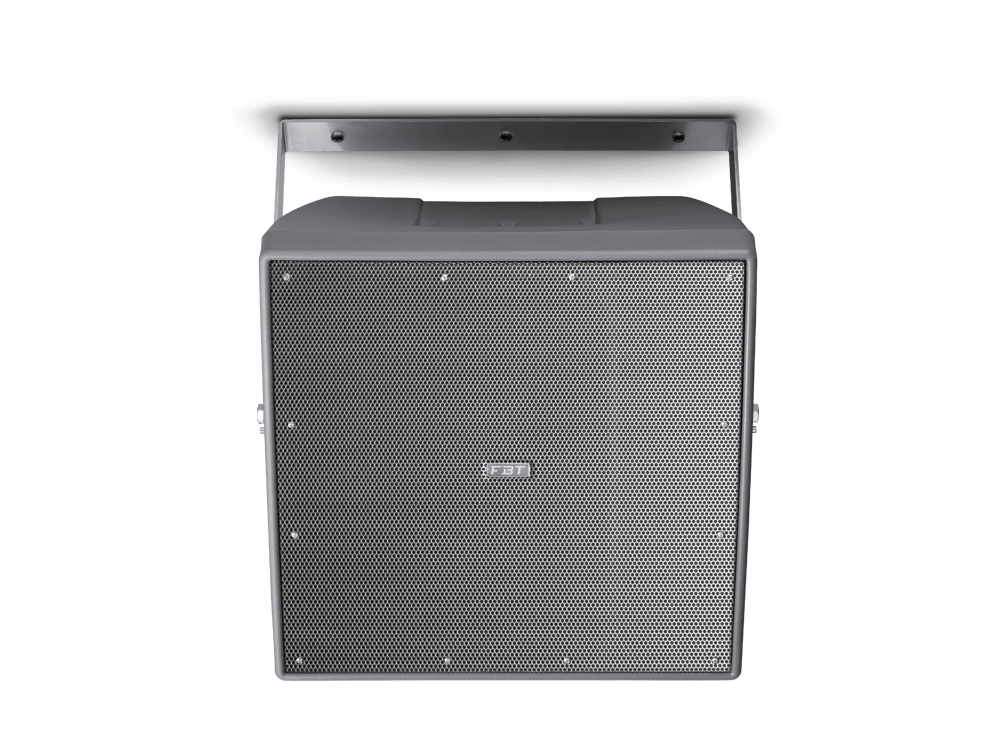

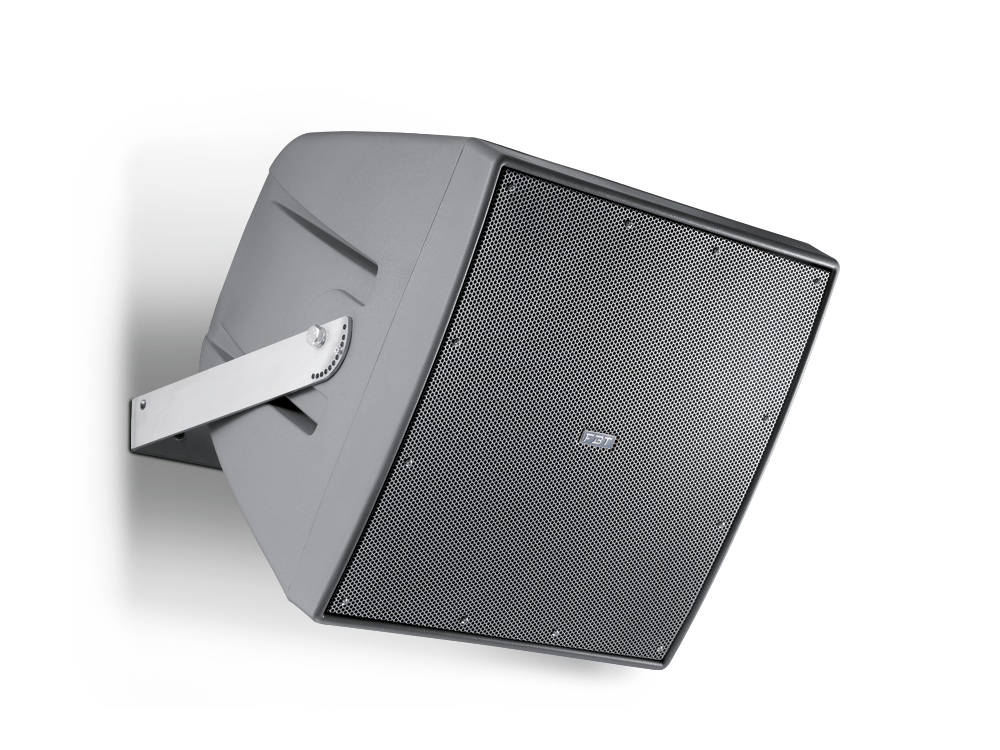

The Shadow 114S T is a compact, low frequency sound system that offers an improved low end. It has the same enclosure and hardware accessories of the Shadow 112. However, the Shadow 114S T provides extended low frequency reproduction for a wider range of applications. The system features a 14” subwoofer with a 700W/8ohm - 129,5dB SPL and a 14” woofer with a 3” coil. Additionally, the Shadow 114ST model is available as an option providing impedance matching to 100V lines with 300W power. The system includes a 4-wire cable to select the desired power tapping and features a sturdy molded polyethylene curved enclosure, water-stop grill with 3 layers of protection, steel U bracket, and other hardware accessories that are IP55 weather resistant. The system comes in a standard grey finish RAL 7011.
SHADOW 114S T
14” SUBWOOFER 700W/8OHM - 129,5DB SPL
Click on the image to zoom
- Configuration: Subwoofer
- Low Frequency Woofer: 1 x 14'' - 3'' VC
- Recommended Amplifier: 700W RMS
- Maximum SPL: 129.5dB
- Material: Polyethylene rotomolded
Technical specifications
Code:
omnidirectional HxV
Configuration:
2 way
Recommended amplifier:
700 W RMS
Long Term power:
350 W
Short term power:
1400 W
Nominal impedance:
8 ohm
Frequency response:
60Hz - 400Hz -6dB
Low Frequency woofer:
14 - 3 coil inch
Maximum SPL cont/peak:
125.5 / 129.5 dB
Dispersion:
omnidirectional HxV
Crossover Frequency:
external KHz
Input connector:
4 wire cable
Net Dimension (WxHxD):
430x430x400 - 16.92x16.92x15.74x mm/inch
Net Weight:
17/37.4 Kg/lb
Transport Dimension (WxHxD):
530x530x500 mm/inch
Transport Weight:
20.86x20.86x19.68 kg/lb
Download
