The SHADOW 112HC/HC T is an exceptional horn loaded system that offers top-notch performance, all packed in a compact enclosure with the same dimensions as the SHADOW 112CT. This system is ideal for voice announcements and music reproduction, as it is incredibly powerful. The SHADOW 112HC is designed to function as both a musical entertainment loudspeaker and a voice PA loudspeaker, ensuring that you get the best of both worlds. With a wide range, smooth frequency response, and high efficiency, this system guarantees excellent quality music playback and crystal-clear speech with minimal distortion. Additionally, the Shadow 112HC features a constant directivity horn 1" HF driver with a 1,7" coil, a 12" woofer with a 2.5" coil horn loaded, and a high-performance 12" coax horn loaded, medium/long throw 600W/8ohm - 132dB SPL. It also comes with a sturdy molded polyethylene curved enclosure, a water-stop grill with three layers of protection, steel U bracket, and other hardware accessories, all in an IP55 weather-resistant design with a standard grey finish RAL 7011. Furthermore, an optional transformer model, the Shadow 112HCT, is available with 200W/100W power tapping selection, and a 90°H x 60°V coverage alongside a four-wire cable to choose the desired power tapping.

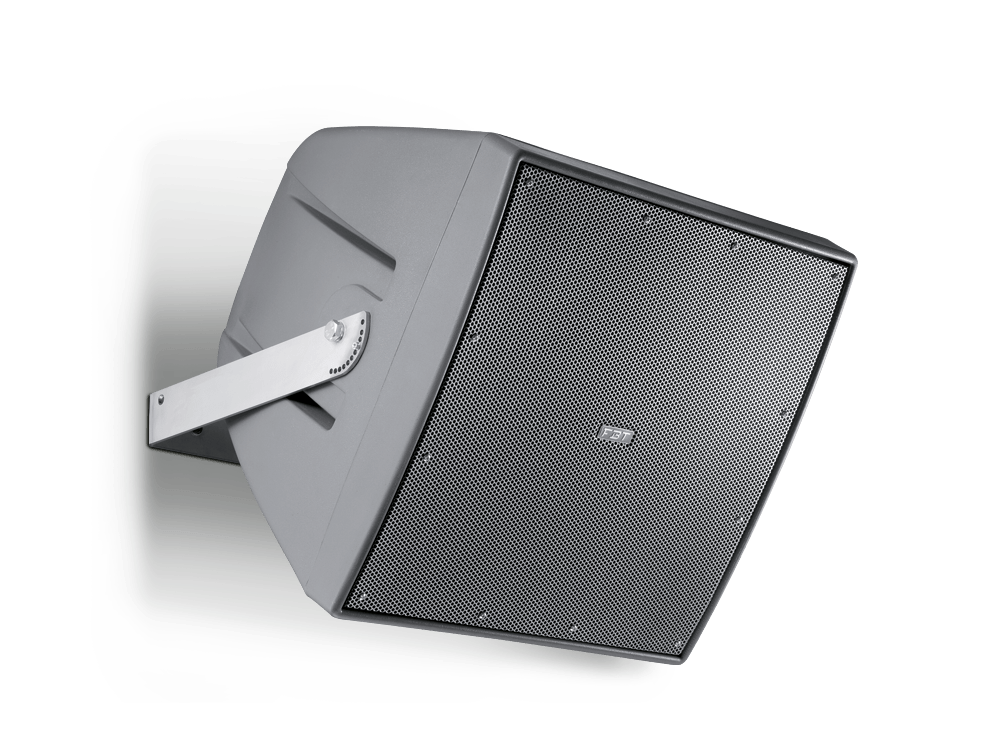

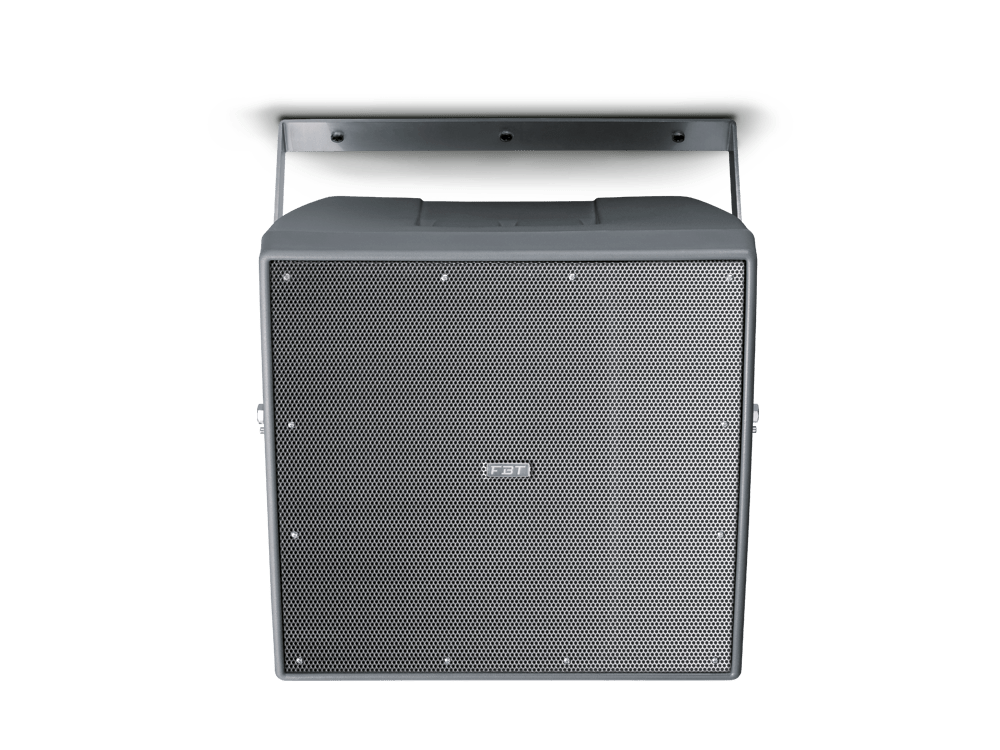

SHADOW 112HC/HC T
HIGH PERFORMANCE 12” COAX HORN LOADED, MEDIUM/LONG THROW 600W/8OHM - 132DB SPL
Click on the image to zoom
- Configuration: 2 way
- Low Frequency Woofer: 1 x 12'' - 2.5'' VC
- High Frequency Driver: 1 x 1'' - 1.7'' VC
- Recommended Amplifier: 600W RMS
- Maximum SPL: 132dB
- Material: Polyethylene rotomolded
Technical specifications
Code:
36159
Configuration:
2 way
Recommended amplifier:
600 W RMS
Long Term power:
300 W
Short term power:
1200 W
Nominal impedance:
8 ohm
Frequency response:
95Hz - 20KHz -6dB
Low Frequency woofer:
12 - 2.5 coil inch
High frequency driver:
1 - 1.7 coil inch
Sensitivity (@1W/1m):
101 dB
Maximum SPL cont/peak:
128/132 dB
Dispersion:
90°x60° HxV
Crossover Frequency:
1.6 KHz
Recommended HP filter:
70hz - 24dboct
Input connector:
4 wire cable
Net Dimension (WxHxD):
430x430x400 - 16.92x16.92x15.74 mm/inch
Net Weight:
21/46.3 kg/lb
