SHADOW 108CT

MULTIPURPOSE 8” COAX 450W/8OHM - 124DB SPL

Click on the image to zoom

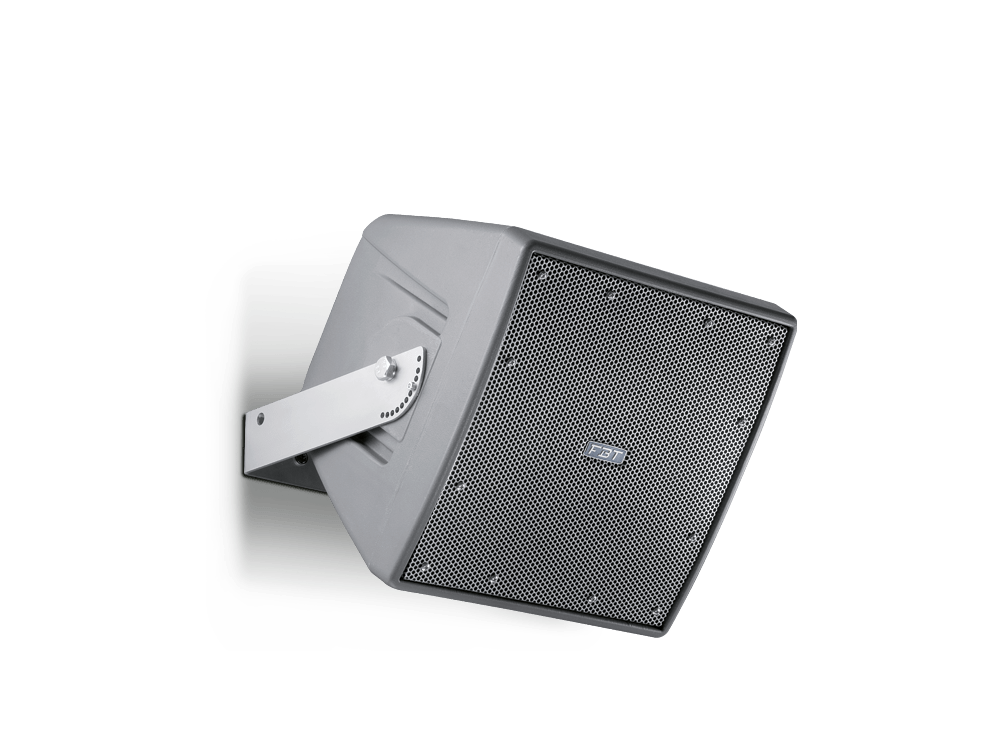

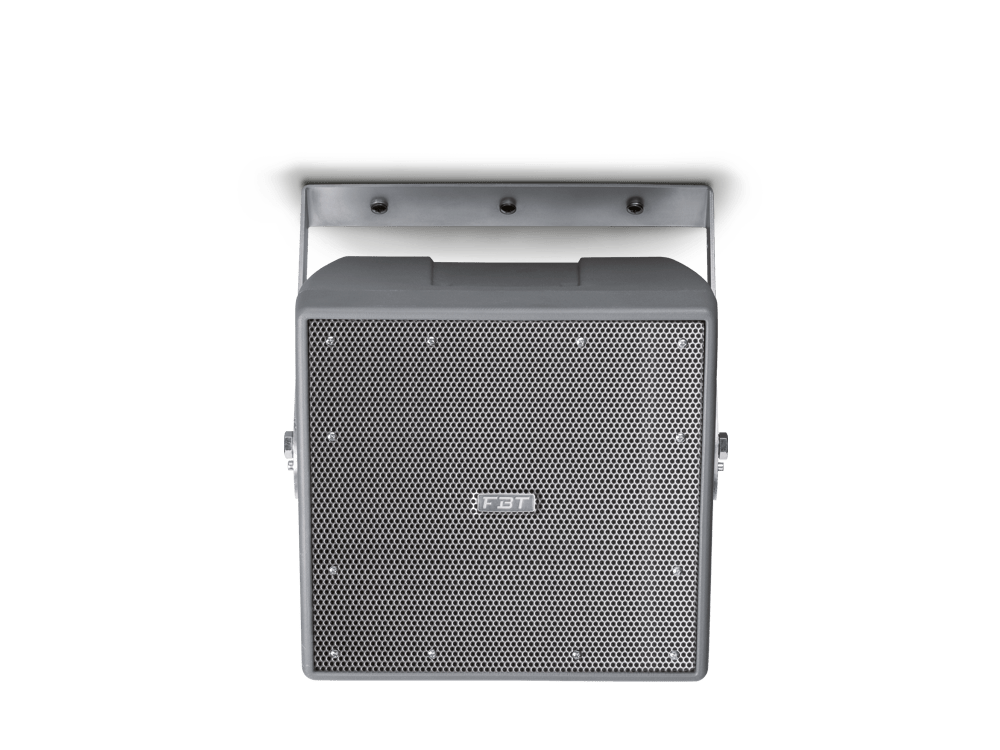

Shadow 108CT is a multipurpose 8” coax, an exceptional sound system that delivers high-quality music and speech reproduction in a compact package. The system is designed to provide a clear, intelligible sound with very low distortion even over long distances. Shadow 108CT features an 8” coaxial woofer with a 2” coil and a 1” HF driver with a 1,4” coil on a conical 90° horn. It also includes a 100V line transformer with selectable 100W/50W power tapping, a sturdy molded polyethylene curved enclosure, and a steel U bracket and other included hardware accessories. The system comes with a 4 wires cable to select the desired power tapping, and a water-stop grill with 3 layers of protection. Additionally, the system is IP55 weather resistant and comes in a standard grey finish with RAL 7011. Overall, Shadow 108CT is an outstanding sound system that provides exceptional quality and reliability for a variety of applications. Whether you need to deliver background music, make announcements, or provide entertainment, this system will deliver excellent results.

  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 8'' - 2'' VC
  • High Frequency Driver: 1 x 1'' - 1.4'' VC
  • Recommended Amplifier: 450W RMS
  • Maximum SPL: 124dB
  • Material: Polyethylene rotomolded


Technical specifications
Code: 36193
Configuration: 2 way
Recommended amplifier: 450 W RMS
Long Term power: 225 W
Short term power: 900 W
Nominal impedance: 8 ohm
Frequency response: 80Hz - 20KHz -6dB
Low Frequency woofer: 8 - 2 coil inch
High frequency driver: 1 - 1.4 coil inch
Sensitivity (@1W/1m): 95 dB
Maximum SPL cont/peak: 120/124 dB
Dispersion: 90° conical HxV
Crossover Frequency: 1.8 KHz
Recommended HP filter: 60hz - 24dboct
Input connector: 4 wire cable
Net Dimension (WxHxD): 285x285x250 - 11.22x11.22x9.84 mm/inch
Net Weight: 7/15.4 kg/lb
