PROMAXX 114

Passive Point Source

pole mounted

neodymium woofer

permanent installations

lightweight

Click on the image to zoom

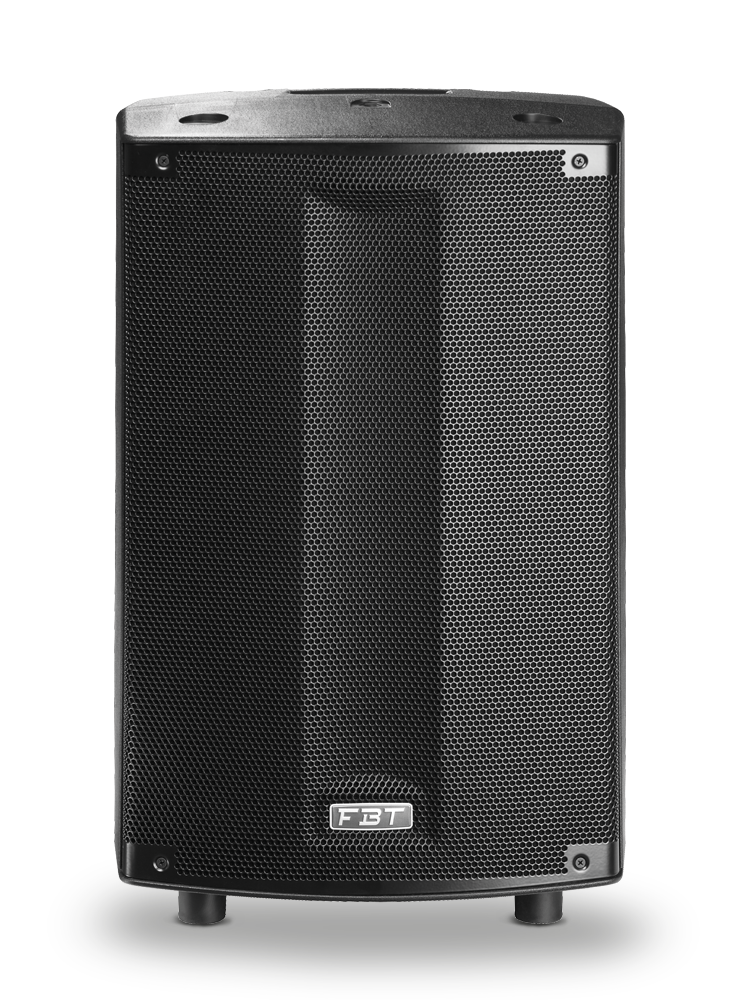

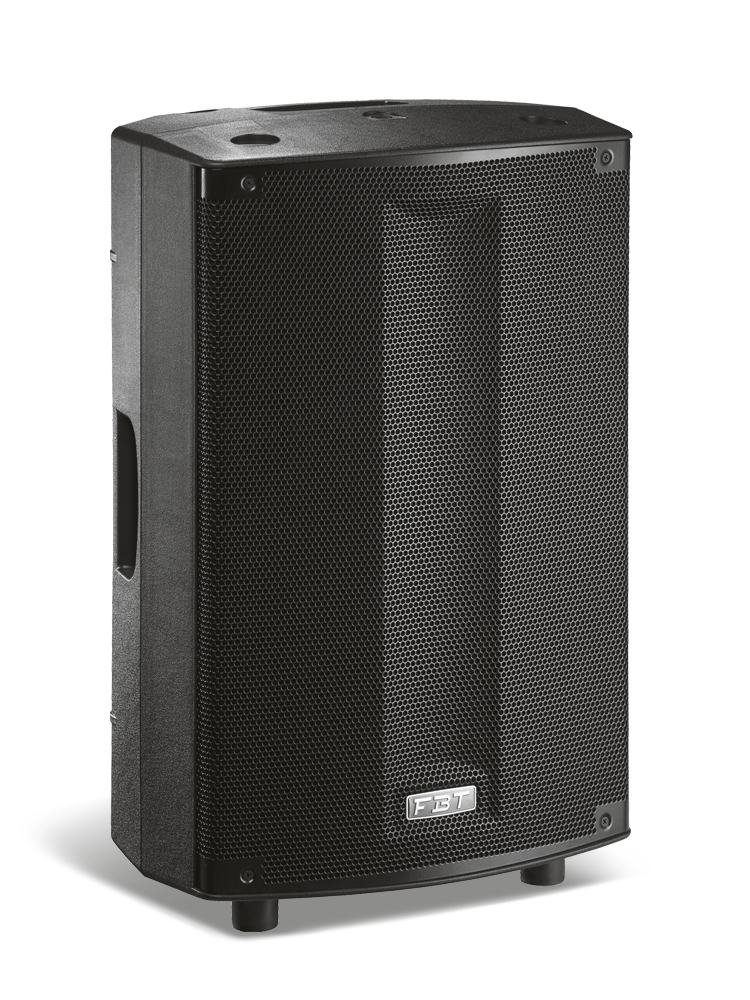

Promaxx 114 is a powerful passive reinforcement speaker designed to deliver an outstanding audio experience for audiences. With a 14" woofer and 700W/8ohm power handling, this speaker is capable of producing sound levels of up to 132DB SPL2-way, making it ideal for large events and venues.

Featuring a 2-way, bass reflex design cabinet, the Promaxx 114 also boasts a 90°H x 60°V constant directivity horn for optimal sound dispersion. It comes with 2 x M10 suspension points, a 35 mm (1,3/8”) top-hat speaker stand socket, and wall bracket mount flange plate for easy and flexible installation.

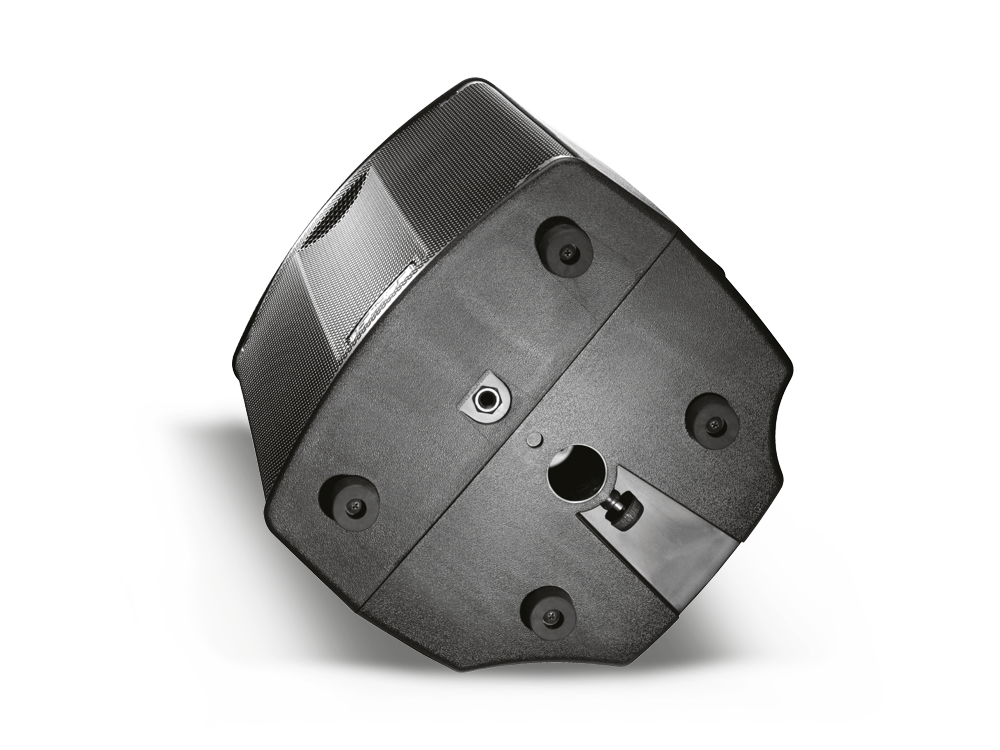

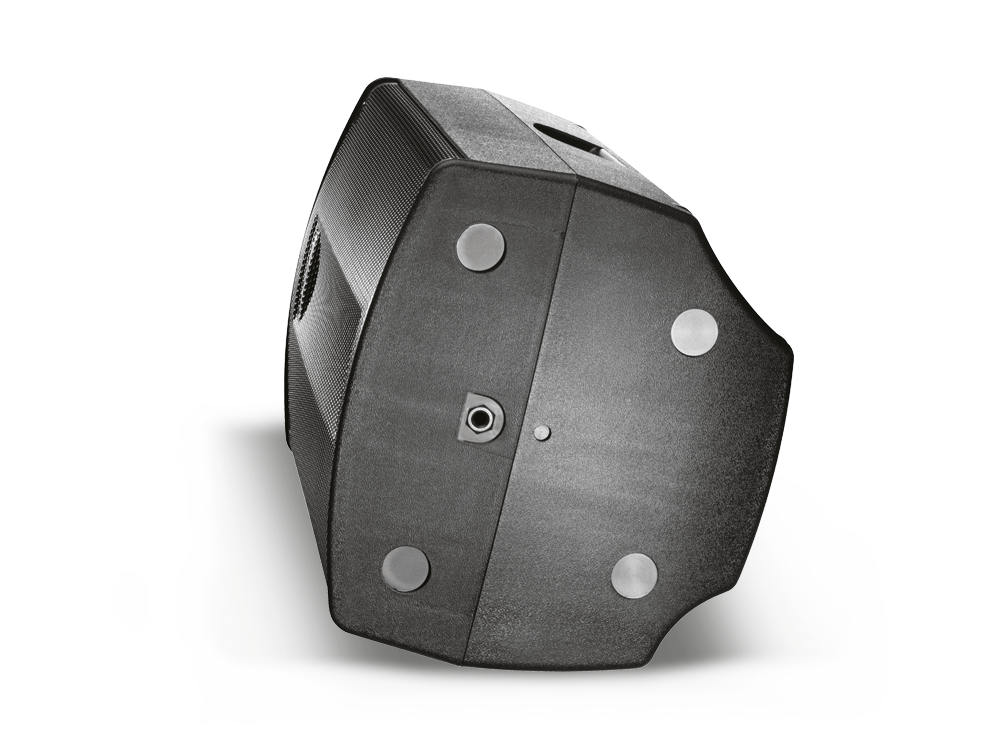

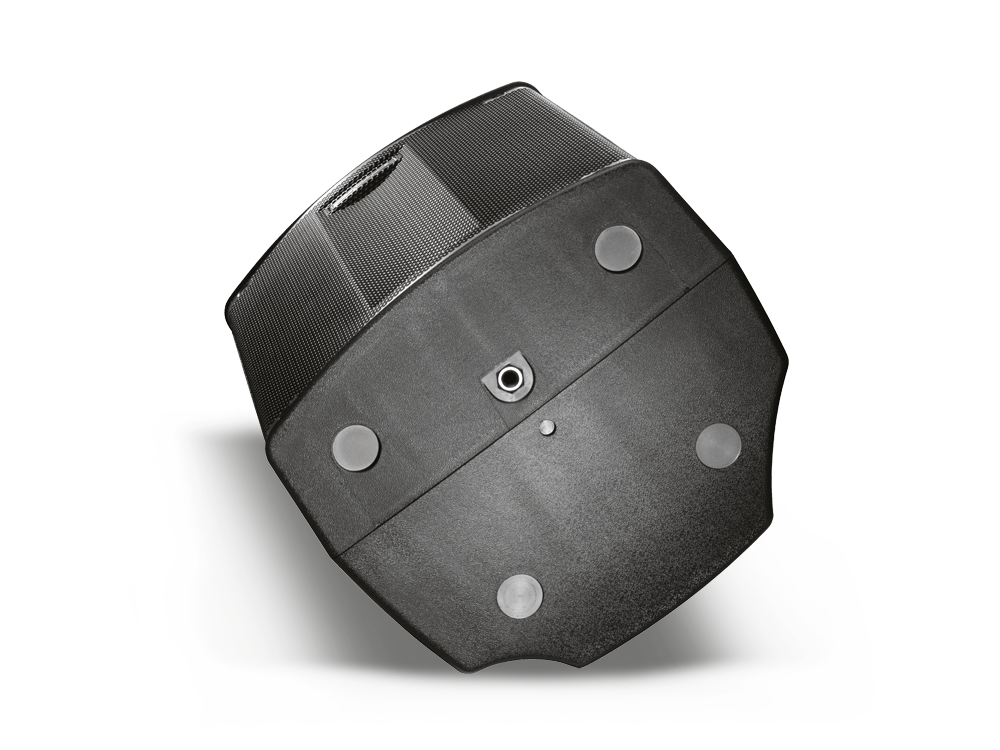

Whether you need a Front of House or Stage Floor Monitor, the Promaxx 114 has got you covered with 12°, 40°, and 55° monitoring angles. The built-in passive crossover with soft-trip protection for the LF woofer and HF driver ensures smooth and reliable performance.

Connectivity is a breeze with Speakon NL-4 IN and LINK OUT connectors, making it easy to link multiple speakers together for a truly immersive audio experience. Overall, the Promaxx 114 is a versatile and reliable speaker that delivers exceptional sound quality and performance.

  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 14'' - 3'' VC
  • High Frequency Driver: 1 x 1.4'' - 2.5'' VC
  • Recommended Amplifier: 700W RMS
  • Maximum SPL: 132dB
  • Material: Polypropylene
Technical specifications
Code: 40683
Configuration: 2 way
Recommended amplifier: 700 W RMS
Long Term power: 350 W
Short term power: 1400 W
Nominal impedance: 8 ohm
Frequency response: 50Hz - 18KHZ -6dB
Low Frequency woofer: 14 - 3 coil neodymium inch
High frequency driver: 1.4 2.5 coil inch
Sensitivity (@1W/1m): 100 dB
Maximum SPL cont/peak: 128/132 dB
Dispersion: 90° x 60° HxV
Crossover Frequency: 1.3 KHz
Recommended HP filter: 40Hz - 24dB oct
Recommended external filter: FBT DSP Processor
Input connector: 2 x Speakon NL4 in&throu
Net Dimension (WxHxD): 402x644x345 / 15.8x25.4x13.6 mm/inch
Net Weight: 15/33.06 kg/lb
Accessories
BOX128
