PROMAXX 110

Passive Point Source

pole mounted

permanent installations

lightweight

Click on the image to zoom

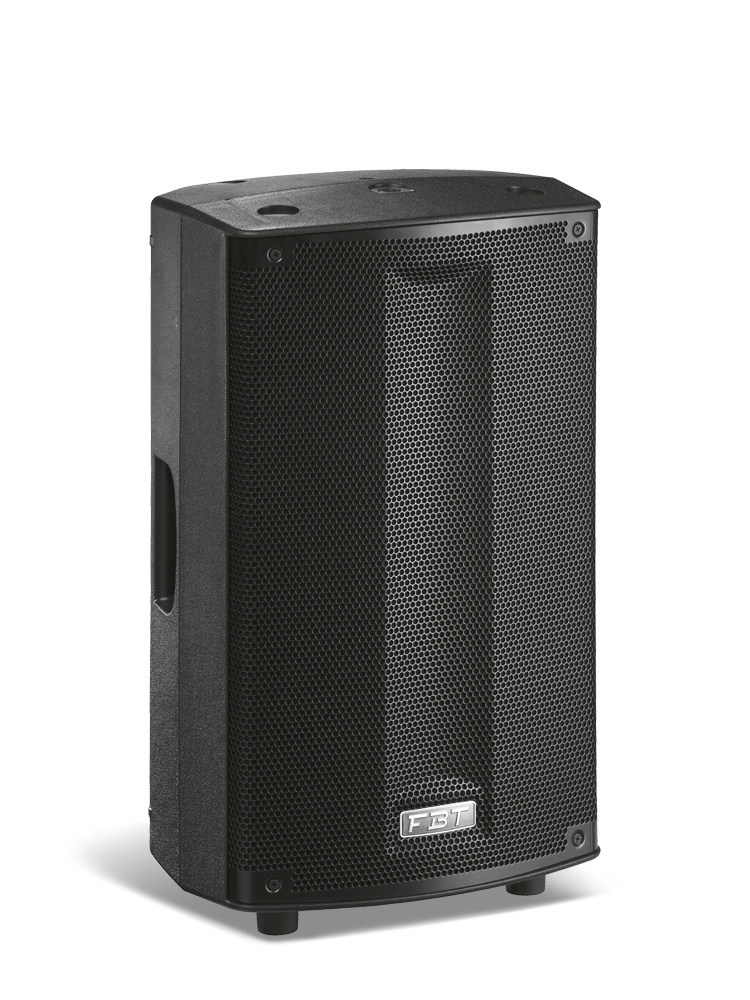

?Promaxx 110 is a high-quality speaker cabinet designed for optimal sound performance. Its 2-way, bass reflex design with a 10" woofer and 300W/8OHM - 127DB SPL produces a clear and powerful sound that is perfect for use in various settings. The speaker also features a 90°H x 60°V constant directivity horn that ensures an even sound dispersion throughout the room.

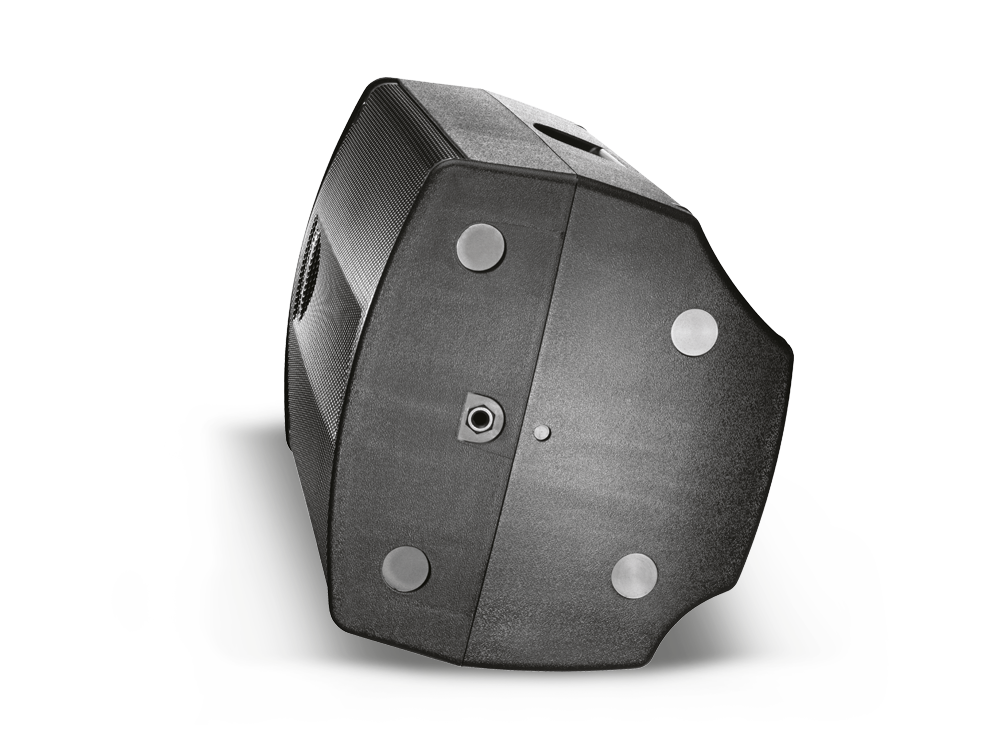

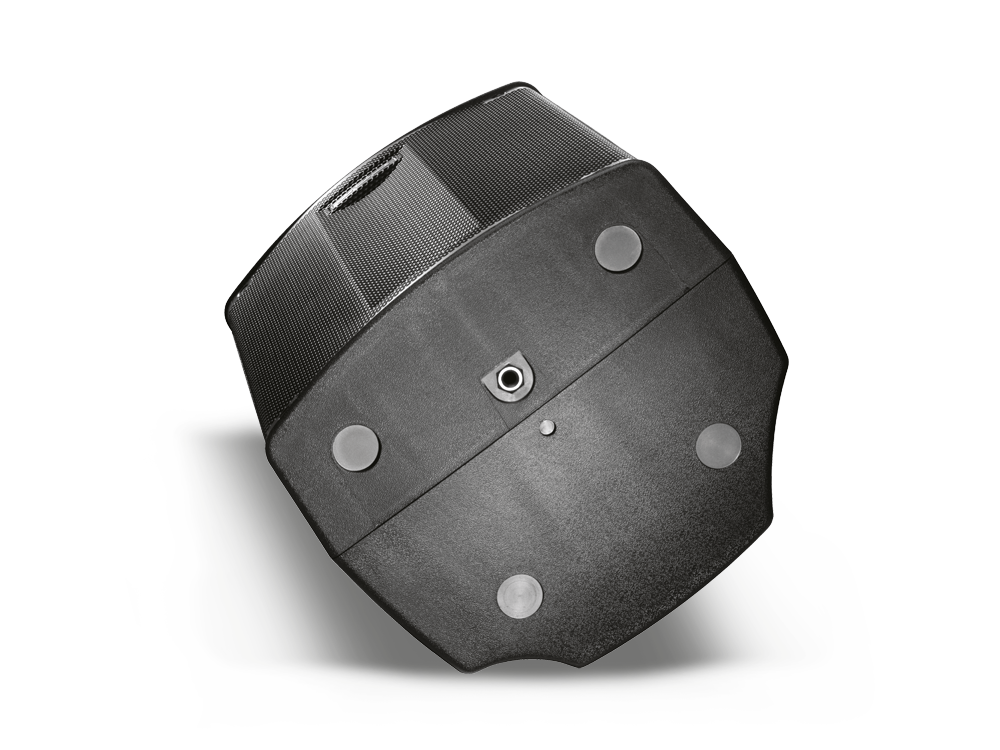

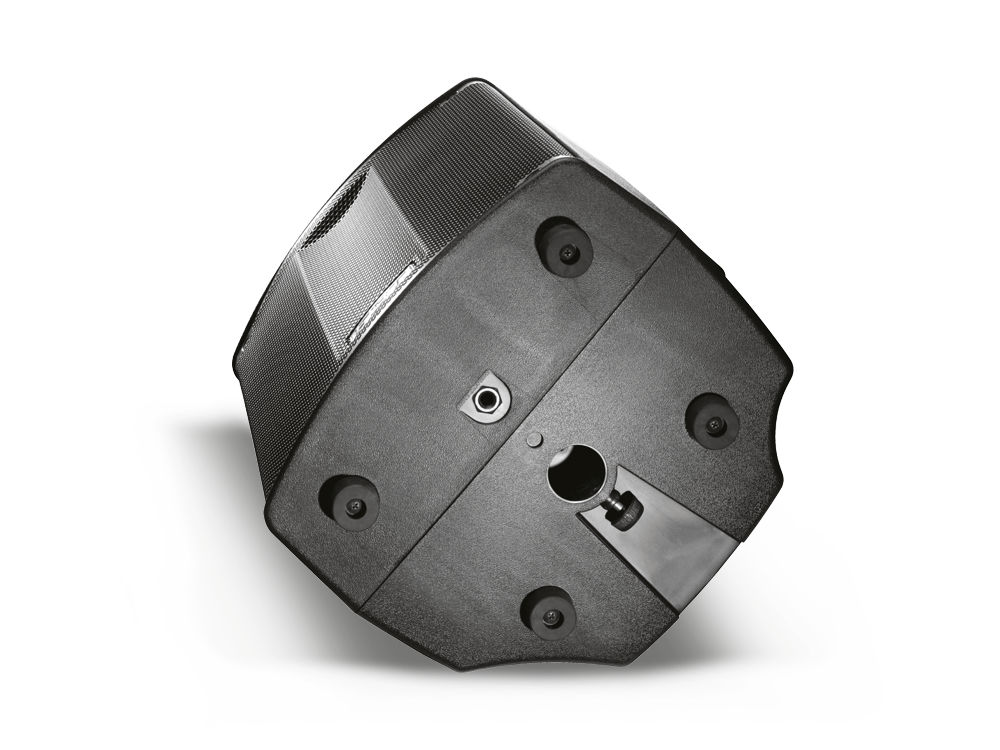

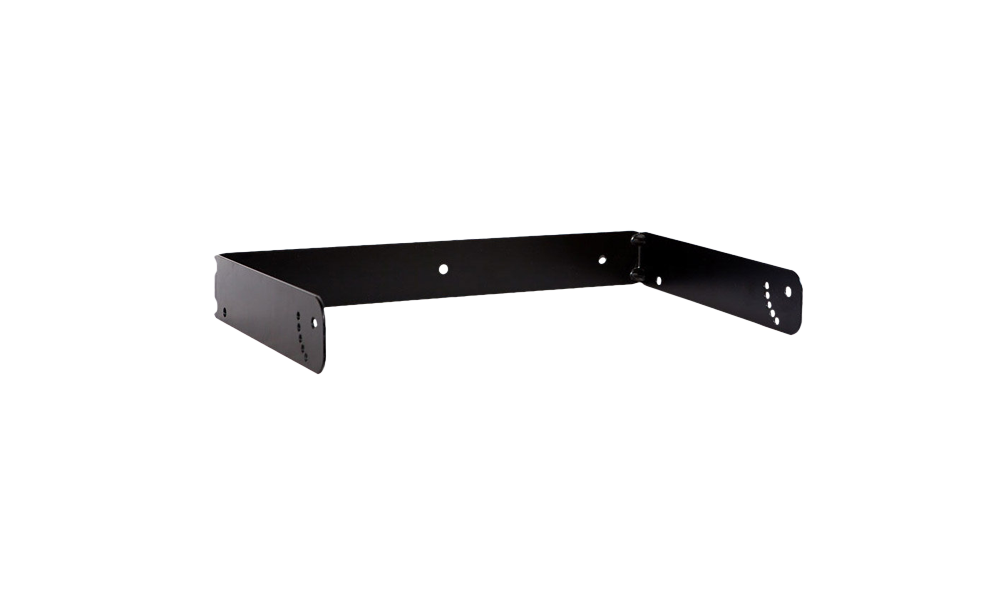

Furthermore, the Promaxx 110 is versatile in its mounting options, with 2 x M10 suspension points, a 35 mm (1,3/8”) top-hat speaker stand socket, and a wall bracket mount flange plate. This makes it easy to install and set up in various locations. Additionally, it can function as either a Front of House speaker or a Stage Floor Monitor with 12°, 40° and 55° monitoring angles.

The Promaxx 110 also includes a built-in passive crossover with soft-trip protection for the LF woofer and HF driver, which helps to prevent damage to the speaker components. The Speakon NL-4 IN and LINK OUT connectors make it easy to connect to other audio equipment. Overall, the Promaxx 110 is a high-quality speaker cabinet that offers versatility, durability, and exceptional sound performance.

  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 10'' - 2'' VC
  • High Frequency Driver: 1 x 1'' - 1.4'' VC
  • Recommended Amplifier: 300W RMS
  • Maximum SPL: 127dB
  • Material: Polypropylene
Technical specifications
Code: 40685
Configuration: 2 way
Recommended amplifier: 300 W RMS
Long Term power: 150 W
Short term power: 600 W
Nominal impedance: 8 ohm
Frequency response: 60Hz - 18KHz -6dB
Low Frequency woofer: 10 - 2 coil inch
High frequency driver: 1 - 1.4 coil inch
Sensitivity (@1W/1m): 97 dB
Maximum SPL cont/peak: 122/127 dB
Dispersion: 90° x 60° HxV
Crossover Frequency: 1.8 KHz
Recommended HP filter: 50Hz - 24dBoct
Recommended external filter: FBT DSP Processor
Input connector: 2 x Speakon NL4 in&throu
Net Dimension (WxHxD): 320x550x275 / 12.6x21.6x10.8 mm/inch
Net Weight: 8.9/19.62 kg/lb
Accessories
BOX127
