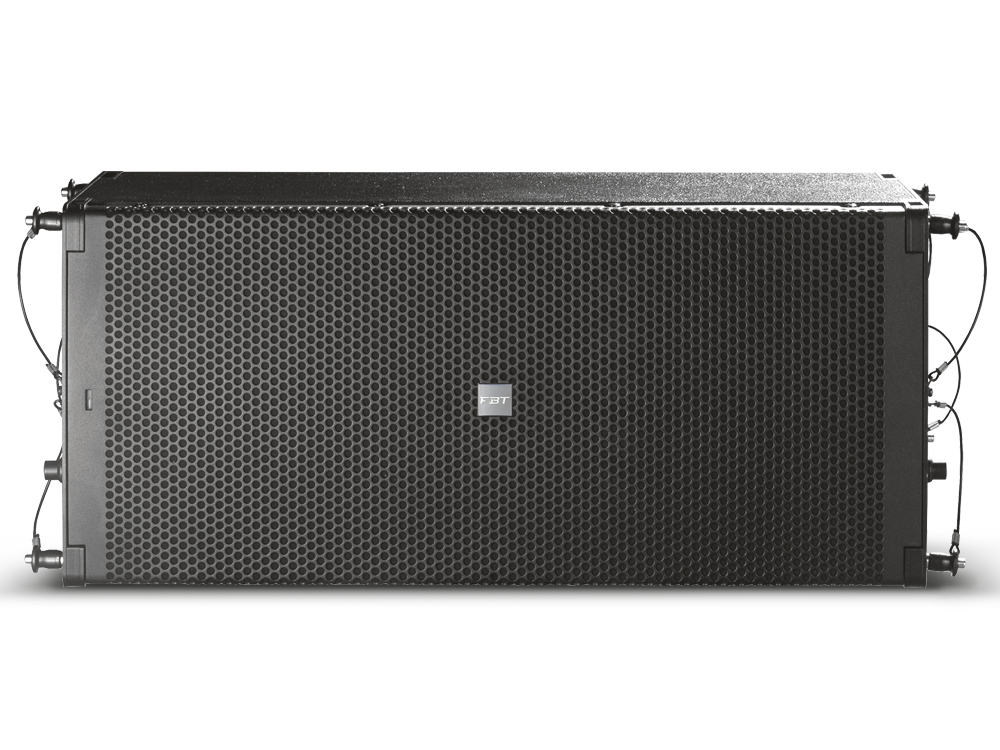

MUSE 210LND/210LN

ACTIVE LINE ARRAY

Powered by Infinito

digital processor

Powered by Dante

switch mode power supply

flying hardware

permanent installations

Click on the image to zoom

An innovative line array system with refined, technologically advanced engineering. These are the qualities of the new speaker that redefines the concept of line array in terms of power, size, lightness, flexibility and practicality of use. The modularity from 2 to 16 speakers allows use in a wide variety of situations, from small band to large outdoor concert.

The hardware integrated in the cabinet allows the suspension of 16 boxes with a 10:1 safety factor and an inclination from 0° to 10° at a step of 1°. The design of the no-compromise mechanics in terms of practicality and speed of set-up of the system makes it particularly suitable for daily touring movements.The aesthetic elegance also makes it very suitable for fixed installations.

The pinnacle of the entire project is the 800+400W RMS amplification module with TCP/IP network interface. Based on the OCA ALLIANCE AES70 standard, the new MUSE family receives 24-bit 48-96Khz digital audio streaming from all devices compatible with the DANTE standard and communicates with the INFINITO System Management Suite remote control software. The module is contained in an aluminium chassis with intelligent forced ventilation and is equipped with an OLED display with encoder for parameter setting and a high-brightness blue front LED allows remote identification of the device, also in daylight. Fully developed in house by the FBT R&D team, INFINITO is the revolution that enhances the user experience, reaching new heights in terms of performance and simplicity.

  • Configuration: 2 way reflex
  • Low Frequency Woofer: 2 x 10'' - 2.5'' VC Neodymium
  • High Frequency Driver: 2 x 1'' - 1.7'' VC Neodymium
  • Built-in Amplifier LF/HF: 800 - 400W RMS LF
  • Maximum SPL: 136dB
  • Material: Baltic birch plywood


Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi vehicula, libero ac iaculis pulvinar, est nisi malesuada augue, ut pharetra urna diam ac magna. Aenean porttitor cursus risus, id varius enim iaculis vel. Duis sollicitudin ultricies orci a ornare. Praesent eget euismod mi. Maecenas blandit urna quis dignissim hendrerit. Suspendisse potenti. Phasellus nec nisi eu sem tempus lobortis.

Donec varius nisl sed volutpat ornare. Nunc ullamcorper, purus ut lacinia finibus, nisi ligula sollicitudin mauris, sit amet consectetur tellus tellus lacinia tortor. In accumsan feugiat risus ac mollis. Phasellus porttitor facilisis ex a fringilla. Praesent id tincidunt lectus, ut consequat velit. Donec pulvinar, lorem ac vulputate rhoncus, purus lectus elementum leo, sit amet egestas ipsum felis vel orci. Sed tincidunt porta euismod. Maecenas id erat ac neque hendrerit maximus non at justo. Cras ligula mauris, hendrerit non ligula nec, bibendum vestibulum nisi. Proin congue ornare risus ac congue. Cras aliquet non erat in viverra.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi vehicula, libero ac iaculis pulvinar, est nisi malesuada augue, ut pharetra urna diam ac magna. Aenean porttitor cursus risus, id varius enim iaculis vel. Duis sollicitudin ultricies orci a ornare. Praesent eget euismod mi. Maecenas blandit urna quis dignissim hendrerit. Suspendisse potenti. Phasellus nec nisi eu sem tempus lobortis.

Donec varius nisl sed volutpat ornare. Nunc ullamcorper, purus ut laci.


Technical specifications
Code: 44258
Built-in amplifier LF/HF: 800 / 400
Built-in amplifier peak LF/HF: 1600 / 800
Frequency response: 55Hz - 20kHz @.6dB
Low frequency woofer: 2 x 10’’ / 2,5’’ VC
High frequency driver: 2 x 1’’ / 1,7’’ VC
Maximum SPL cont/peak: 129 / 136 dB
Dispersion: 90° x 10° (dependant upon n. of elements)
Input impedance: 22
Crossover frequency: 1,1
Ac power requirements: 600
Input connector: XLR IN / OUT
Power cord: 16.4ft / 5mt
Net Dimension (WxHxD): 652 x 296 x 515 mm / 25,66 x 11,65 x 16,73 inch
Net weight: 38 kg / 83,77 lb
Transport Dimension (WxHxD): 790 x 382 x 515 mm / 31,10 x 14,765 x 20,47 inch
Transport weight: 41.5 kg / 91.49 lb
Accessories
MS-F 210
MS-J 210
MS-C 210
MS-T 210
