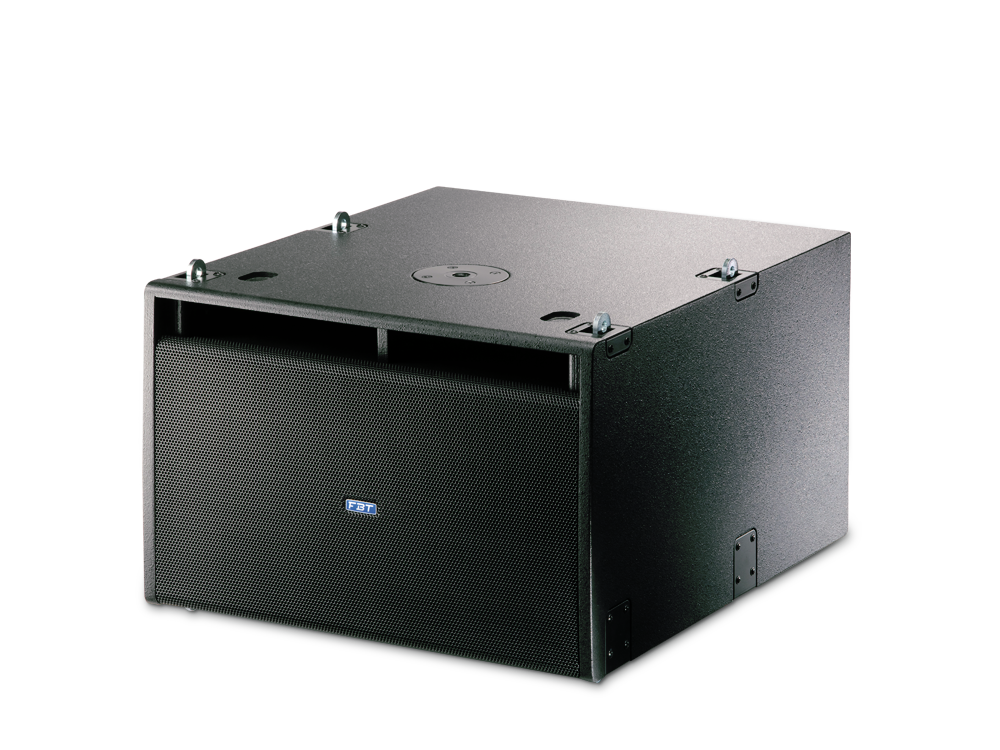

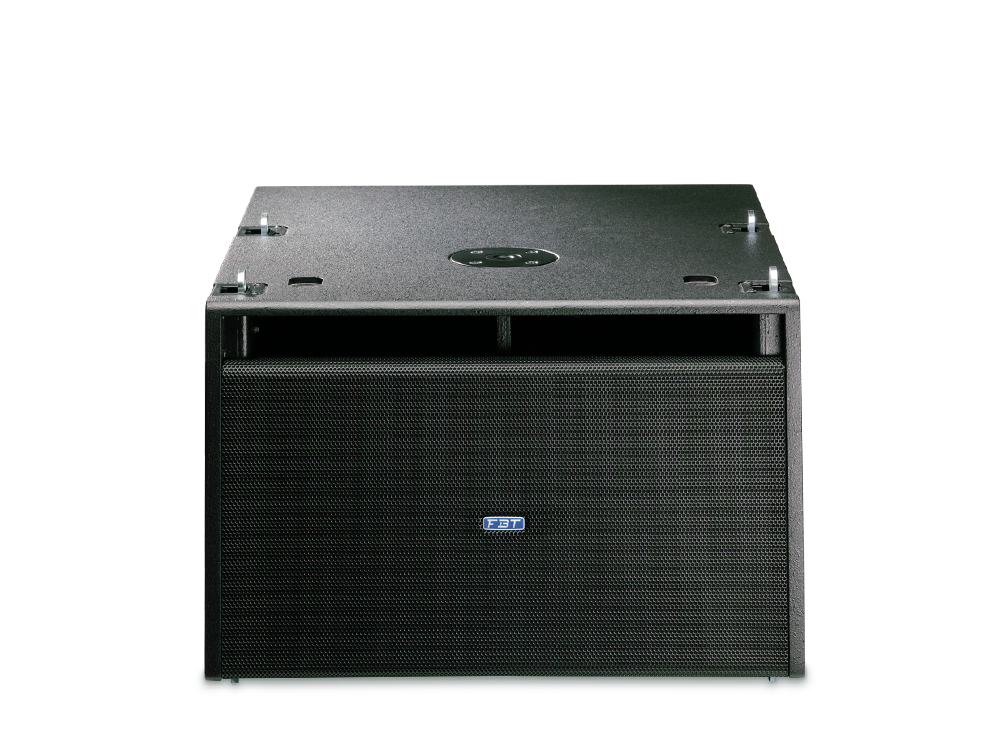

Vented band pass subwoofer designed to be compact. Mitus 212FSA is equipped with two 320 mm (12 inch) B&C neodymium magnet high excursion subwoofers that have 75 mm (3 inch) voice coils. Its frequency response ranges from 45 Hz to 120 Hz, and it has a Class D amplifier that delivers 1200W RMS. Additionally, it features a switch mode power supply DSP with 8 presets, cardioid and infra configurations, delay, and a control panel with XLR input and link, volume, presets, delay, phase 0°-180°, ground-lift. The enclosure is made of 15 mm (5/8 inch) birch plywood and has a scratch-resistant black paint. This subwoofer also comes with a low frequency extension cabinet that can be used for flying or ground stacked configurations with the MITUS 206LA line array. Lastly, it has an M20 top mount stand socket.
MITUS 212FSA
ACTIVE FLYABLE SUBWOOFER
digital processor
switch mode power supply
permanent installations
flying hardware
neodymium woofer
lightweight
pwm amplifier
Click on the image to zoom
- Configuration: 1 way vented band pass
- Low Frequency Woofer: 2 x 12'' - 3'' VC Neodymium
- Built-in Amplifier: 1200W RMS
- Maximum SPL: 138dB
- Material: Baltic birch plywood
Technical specifications
Code:
31709
Configuration:
1 way
Built-in amplifier LF/HF:
1200 W RMS
Built-in amplifier peak LF/HF:
2400 W
Frequency response:
45Hz-120Hz -6dB
Low Frequency woofer:
2x12 - 3 coil - neodymium inch
Maximum SPL cont/peak:
134/138 half-space dB
Dispersion:
omnidirectional HxV
Input impedance:
22 Kohm
Crossover Frequency:
preset dependant KHz
AC Power requirements:
640 VA
Input connector:
XLR with loop
Power cord:
5/16.4 m/ft
Net Dimension (WxHxD):
574x420x660 - 22.6x16.5x26 mm/inch
Net Weight:
36.5 - 80.5 kg/lb
Transport Dimension (WxHxD):
780x710x520 - 30.7x28x20.5 mm/inch
Transport Weight:
41 / 90.4 Kg/lb
Accessories
MT-F 212
MT-F 206
MT-B 206
MT-S 206
MT-J 206
MT-F 212
MT-F 212
Code: 31804
Flying bar Mitus 212FSA/118FSA
MT-F 206
MT-F 206
Code: 31805
Flying bar Mitus 206 LA
MT-B 206
Code: 31888
Metal base to ground 206 array or stack on 118/121 subs
MT-S 206
Code: 33324
Cluster bracket with speaker pole for 2 x Mitus 206
MT-J 206
Code: 31806
Joint Bar Mitus 212 FSA/118 FSA with Mitus 206 LA
