This compact vented band pass subwoofer features two 320 mm (12'') B&C neodymium magnet high excursion subwoofers with 75 mm (3'') voice coils, providing a frequency response from 50Hz to 120Hz. The recommended amplifier for the passive version is 1000Wrms / 8ohm. The Neutrik Speakon NL-4MDV connectors are available for IN & LINK OUT. An external digital processor is required for this subwoofer. The enclosure is made of 15 mm (5/8'') birch plywood and features a scratch-resistant black paint. This subwoofer is a low frequency extension cabinet for the MITUS 206L line array, suitable for both flying and ground stacked configurations. It also has an M20 top mount stand socket.

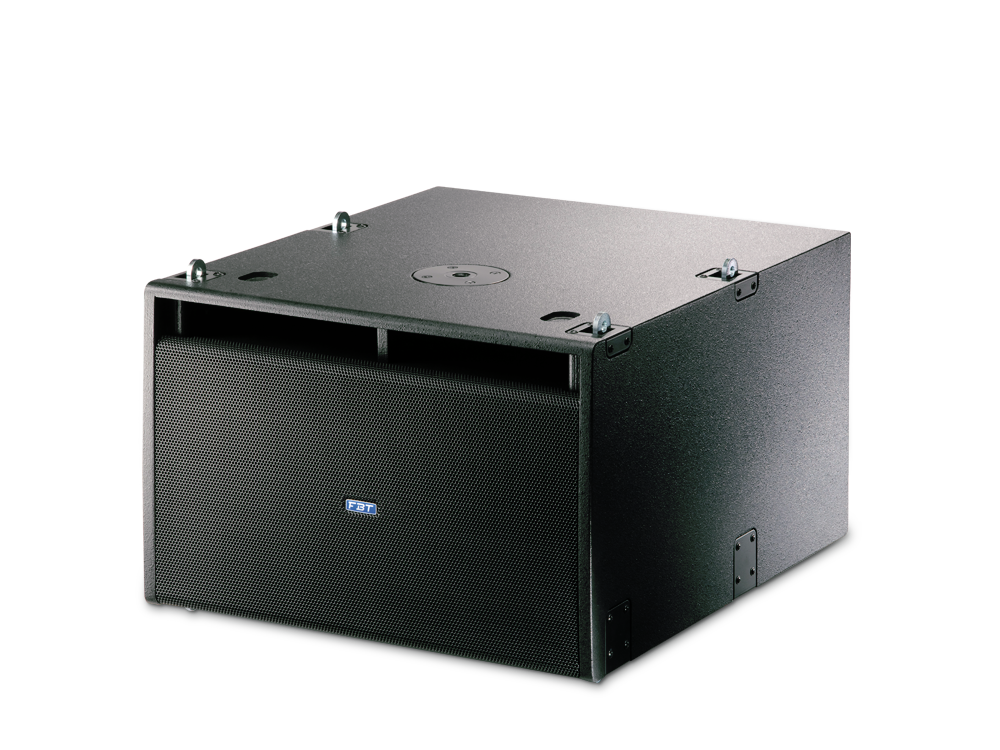

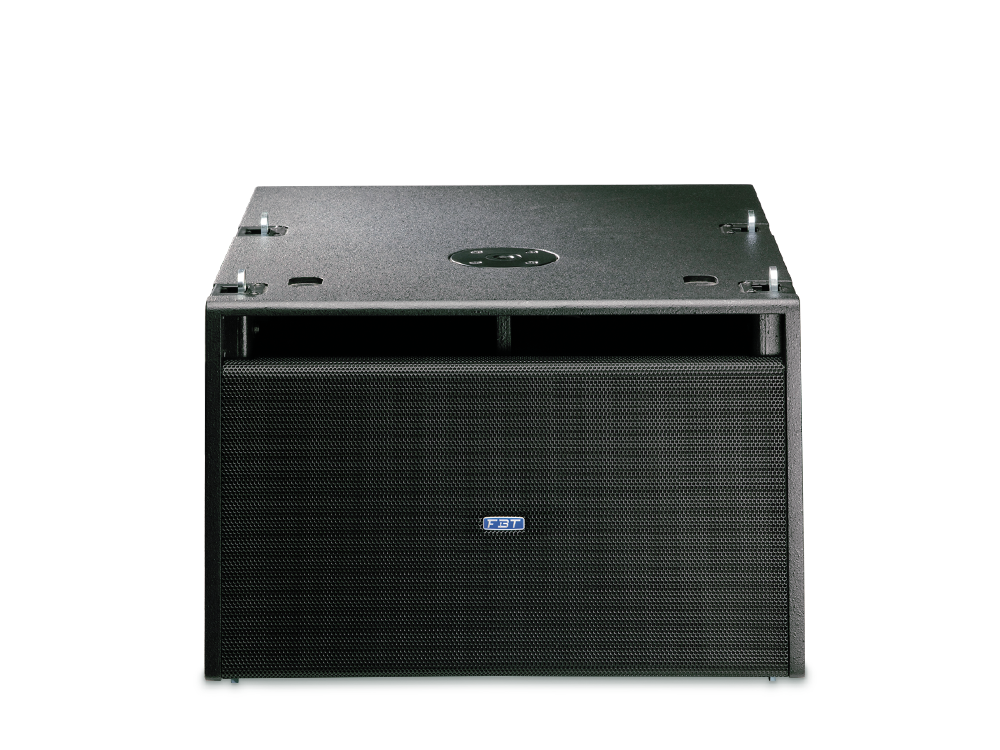

MITUS 212FS
PASSIVE FLYABLE SUBWOOFER
neodymium woofer
permanent installations
Click on the image to zoom
- Configuration: 1 way vented band pass
- Low Frequency Woofer: 2 x 12'' - 3'' VC Neodymium
- Recommended Amplifier: 1000W RMS
- Maximum SPL: 138dB
- Material: Baltic birch plywood
Technical specifications
Code:
omnidirectional HxV
Configuration:
1 way
Recommended amplifier:
1000 W RMS
Long Term power:
500 W
Short term power:
2000 W
Nominal impedance:
8 ohm
Frequency response:
50Hz - 120Hz -6dB
Low Frequency woofer:
2x12 - 3 coil neodymium inch
Maximum SPL cont/peak:
134/138 half-space dB
Dispersion:
omnidirectional HxV
Crossover Frequency:
external active KHz
Input connector:
2 x speakon NL4MD-V in & thru
Net Dimension (WxHxD):
574x420x660 - 22.6x16.5x26 mm/inch
Net Weight:
35/77.2 Kg/lb
Transport Dimension (WxHxD):
780x710x520 - 30.7x28x20.5 mm/inch
Transport Weight:
39.5x87 kg/lb
Accessories
MT-F 212
MT-F 206
MT-B 206
MT-S 206
MT-J 206
MT-F 212
MT-F 212
Code: 31804
Flying bar Mitus 212FSA/118FSA
MT-F 206
MT-F 206
Code: 31805
Flying bar Mitus 206 LA
MT-B 206
Code: 31888
Metal base to ground 206 array or stack on 118/121 subs
MT-S 206
Code: 33324
Cluster bracket with speaker pole for 2 x Mitus 206
MT-J 206
Code: 31806
Joint Bar Mitus 212 FSA/118 FSA with Mitus 206 LA
