MITUS 210MA

ACTIVE STAGE MONITOR

digital processor

pole mounted

switch mode power supply

flying hardware

neodymium woofer

permanent installations

pwm amplifier

lightweight

Click on the image to zoom

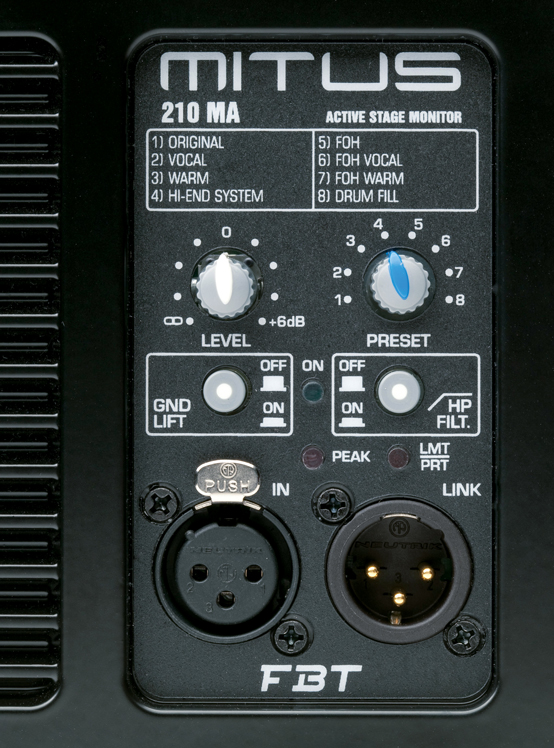

Mitus 210MA is a 2-way bi-amplified active stage monitor with bass-reflex configuration, featuring a coaxial driver. The speaker includes two 250 mm (10 inch) custom neodymium magnet speakers from B&C, one of which is coaxial and features a 36 mm (1.4 inch) exit titanium compression driver and a 64 mm (2.5 inch) voice coil. The frequency response ranges from 60Hz to 20KHz, and the built-in Class D amplifiers provide 600WRMS to the LF and 300WRMS to the HF with a switch mode power supply. The system also includes a DSP with eight EQ presets, as well as a control panel with XLR input and link, volume, presets, HP-filter, and ground-lift. Mitus 210MA has a 70° conical dispersion and is housed in a 15 mm (5/8 inch) birch plywood enclosure with a scratch-resistant black paint finish. It also features a 35 mm (1.38 inch) stand socket and backside carrying handle. This speaker system is lightweight, weighing only 19Kg, and is perfect for live sound stage monitoring applications and as a front of house main PA speaker.

  • Configuration: 2 way bi-amplified
  • Low Frequency Woofer: 2 x 10'' - 2.5'' VC Neodymium
  • High Frequency Driver: 1 x 1.4'' - 2.5'' VC
  • Built-in Amplifier LF/HF: 600 - 300W RMS
  • Maximum SPL: 134dB
  • Material: Baltic birch plywood


Technical specifications
Code: 31761
Configuration: 2 way
Built-in amplifier LF/HF: 600/300 W RMS
Built-in amplifier peak LF/HF: 1200/600 W
Frequency response: 60Hz - 20KHz -6dB
Low Frequency Woofer 2x10 - 2.5 coil neodymium inch
High Frequency driver: 1x1.4 - 2.5 coil neodymium-coax inch
Maximum SPL cont/peak: 127/134 dB
Dispersion: 70°conical HxV
Input impedance: 22 Kohm
AC Power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5/16.4 m/ft
Net Dimension (WxHxD): 547x290x402 - 22.6x11.4x15.8 mm/inch
Net Weight: 19/41.9 kg/lb
Transport Dimension (WxHxD): 890x390x510 - 35x15.4x20.1 mm/inch
Transport Weight: 21.1 / 46.5 kg/lb
