MITUS 118FSA/FSCA

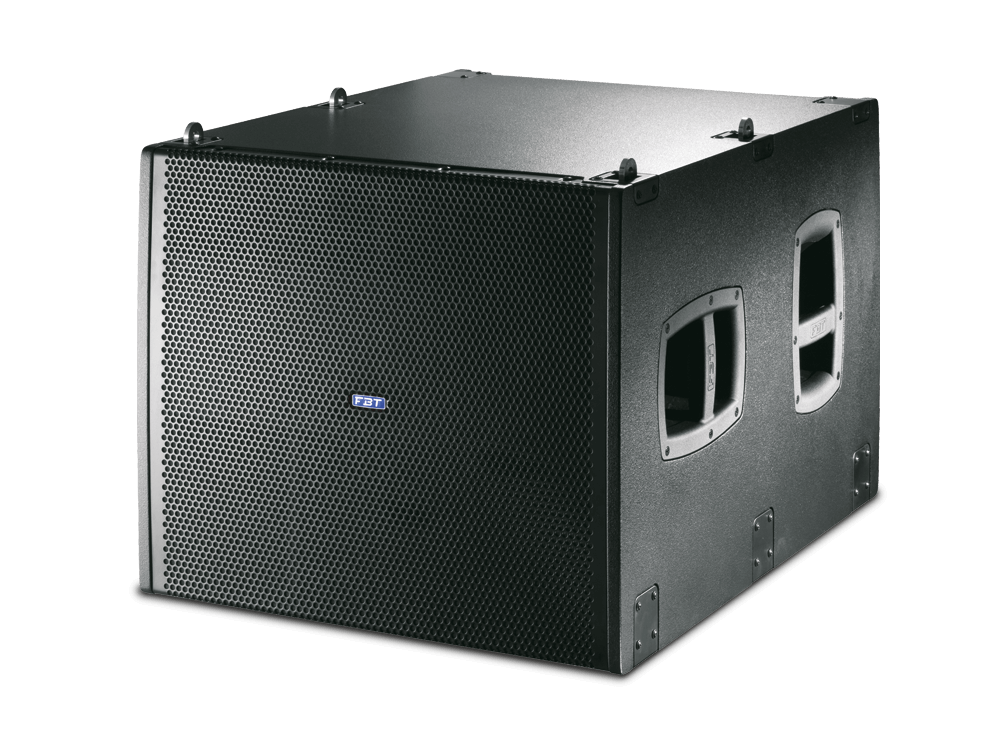

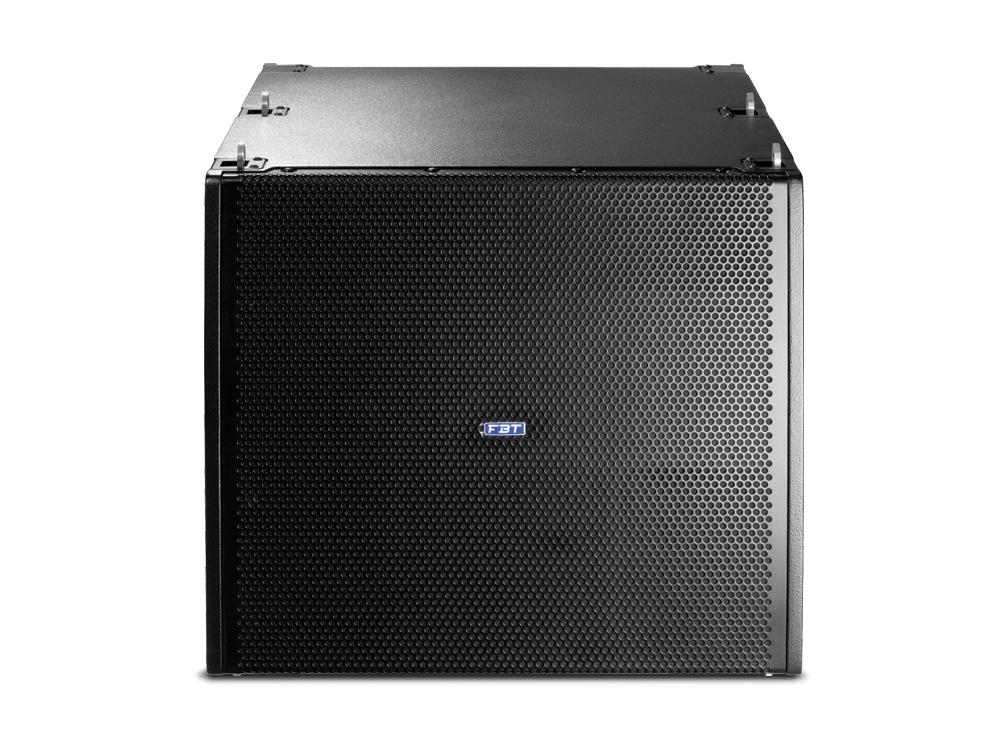

Mitus FSA/FSC is a processed cardioid-flyable active subwoofer with a hybrid configuration. It allows a combination of the extension and speed of vented configurations with the high SPL and acoustic filtering of band pass configurations. The suspension hardware is fully compatible with the Mitus 206LA, which allows for easy cardioid configurations when the enclosure is suspended front (FSA model) or rear-firing (FSCA model). The subwoofer has a very large area laminar-flow port, which helps to ensure there is no power compression and very low port turbulence. When using a cardioid configuration with one sub rear-firing and two subs front-firing, more than 15dB SPL rejection can be achieved behind the array. The subwoofer comes with an 18" (460mm) custom B&C neodymium magnet high excursion woofer with a 3.5" (88mm) voice coil, and has a frequency response from 33Hz to 1Hz. The subwoofer is powered by a Class D amplifier delivering 1200WRMS, and has a switch mode power supply. The subwoofer also features DSP with 8 presets, cardioid and with infra configurations, delay, and a control panel with XLR input and link, volume, presets, delay, phase 0°-180°, and ground-lift. The enclosure is made of 5/8" (15mm) birch plywood and has a scratch resistant black paint. The subwoofer is designed to have a very low profile for an 18" size woofer, and can be used as a low frequency extension cabinet for the Mitus 206LA line array for flying or ground stacked configurations.

• Configuration: Hybrid band pass
• Low Frequency Woofer: 1 x 18'' - 3.5''VC Neodymium
• Built-in Amplifier: 1200W RMS
• Maximum SPL: 139dB half space
• Material: Baltic birch plywood
