Mitus 118FS/FSC flyable passive subwoofer is a remarkable audio equipment designed to provide high-quality sound. It features an 18" custom B&C neodymium magnet high excursion woofer with a 3,5" voice coil, making it a remarkable subwoofer. The recommended amplifier for this equipment is 1200Wrms/8ohm, and it has NeutrikSpeakon NL-4MDV connectors IN & LINK OUT. However, an external digital processor is required to use it. Despite having an 18-inch size woofer, it has a very low profile. The suspension hardware is fully compatible with Mitus 206L, allowing the enclosure to be suspended. Additionally, it has a very large area laminar-flow port to prevent power compression and low port turbulence. The enclosure is made of 5/8" (15mm) birch plywood with scratch-resistant black paint, making it durable. This equipment is perfect for low frequency extension cabinet for the MITUS 206L line array for flying or ground stacked configurations.

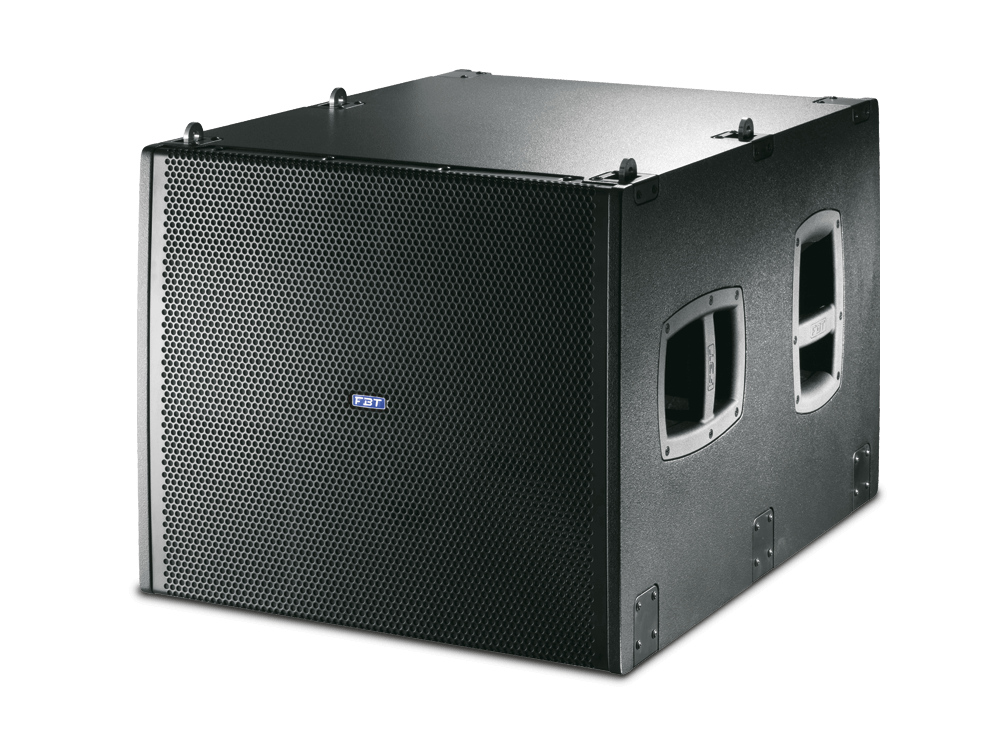

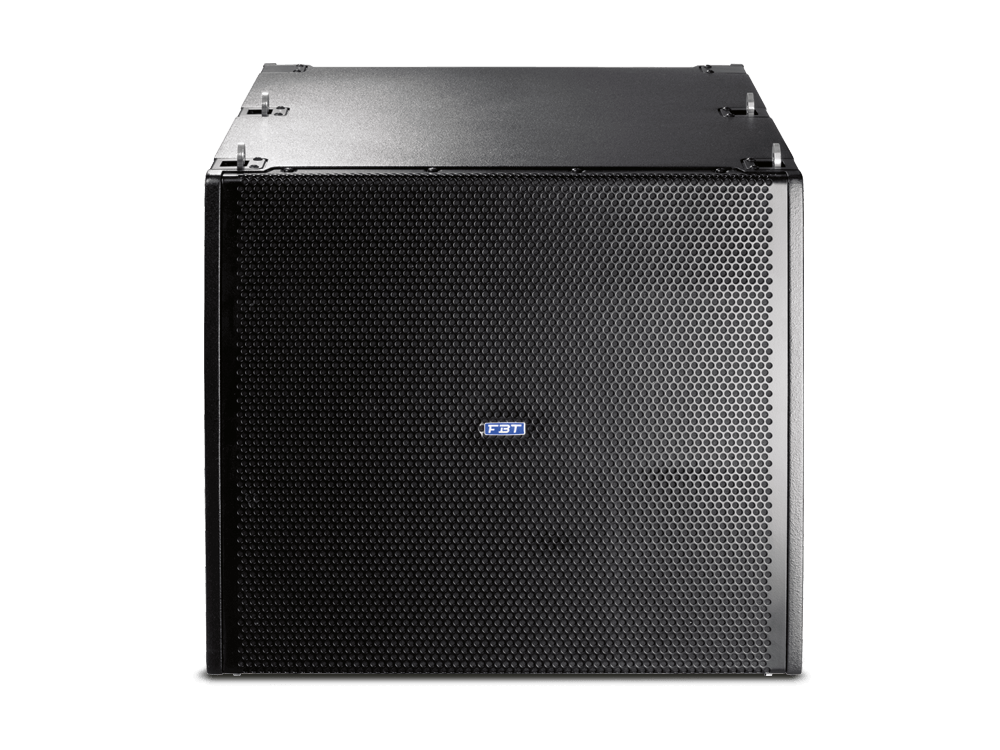

MITUS 118FS/FSC
PASSIVE FLYABLE SUBWOOFER
neodymium woofer
permanent installations
Click on the image to zoom
- Configuration: Hybrid band pass
- Low Frequency Woofer: 1 x 18'' - 3.5''VC Neodymium
- Recommended Amplifier: 1200W RMS
- Maximum SPL: 138dB half space
- Material: Baltic birch plywood
Technical specifications
Code:
Omnidirectional
Configuration:
1 Hybrid Bandpass way
Recommended amplifier:
1200 W RMS
Long Term power:
600 W
Short term power:
2400 W
Nominal impedance:
8 Ohm
Frequency response:
33Hz - 250Hz @-6dB
Low Frequency woofer:
1x18'' - 3.5'' VC neodymium
Maximum SPL cont/peak:
135 / 139dB half space
Dispersion:
Omnidirectional
Crossover Frequency:
external active
Input connector:
2 x Speakon NL4M in & throu
Net Dimension (WxHxD):
576x500x756 mm / 22.7x19.68x29.7 inch
Net Weight:
43Kg / 94.8LB
Transport Dimension (WxHxD):
620x570x790 mm / 24.40x22.44x31.10 inch (with pallet)
Transport Weight:
53 / 116.8 kg/lb
