The design of the Mitus 115 includes a 2-way bass-reflex system. The woofer is 380mm (15") in diameter and contains a powerful neodymium magnet and a 75mm (3") voice coil. The HF driver is 25mm (1") with a neodymium magnet and a 44mm (1,7") voice coil. This passive reinforcement speaker requires an amplifier with a recommended power of 800Wrms / 8ohm. The horn has an 80°H x 50°V rotatable feature. The speaker's frequency response ranges from 50Hz to 18KHz. The passive internal crossover is of high quality and features "soft-trip" circuitry protection for both LF and HF. The speaker uses Speakon NL - 4MDV connectors for IN & LINK OUT. The enclosure is made of 15mm (5/8") birch plywood, has a scratch-resistant black paint finish, eight M10 fly points, two FBT design aluminium handles, and a 35mm (1,38") speaker stand socket. The speaker is ideal for live sound reinforcement applications as front of house main PA and is also suitable for permanent installations.

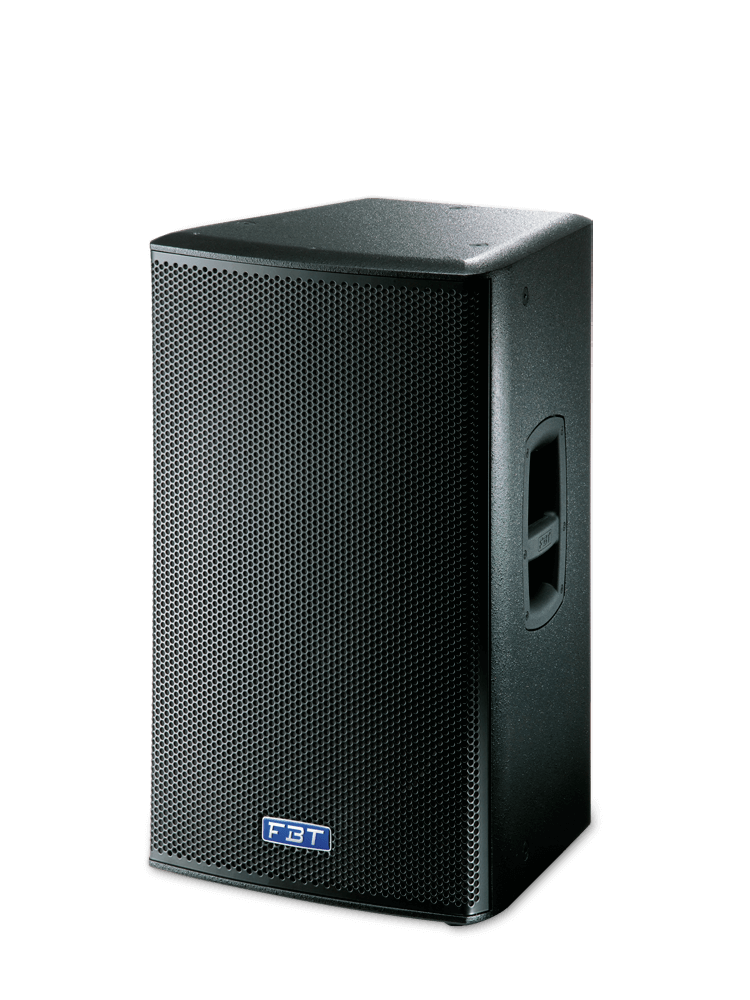

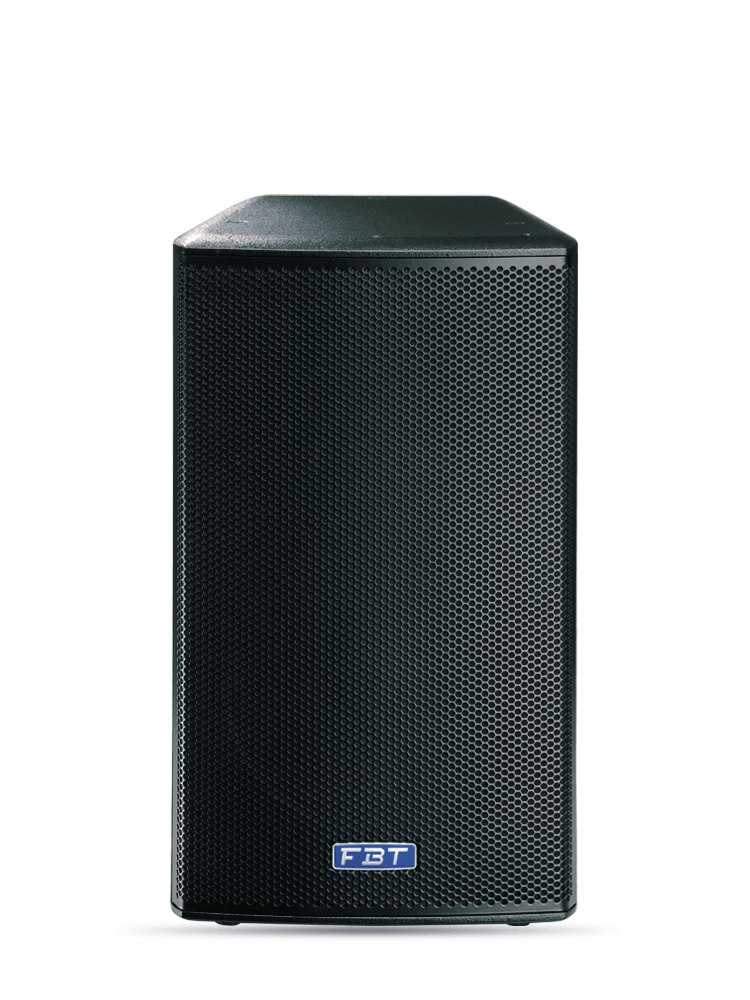

MITUS 115
PASSIVE POINT SOURCE
pole mounted
flying hardware
neodymium woofer
permanent installations
Click on the image to zoom
- Low Frequency Woofer: 1 x 12'' - 3''VC Neodymium
- High Frequency Driver: 1 x 1'' - 1.7'' VC Neodymium
- Recommended Amplifier: 800W RMS
- Maximum SPL: 132dB
- Material: Baltic birch plywood
Technical specifications
Code:
31860
Configuration:
2 way
Recommended amplifier:
800 W RMS
Long Term power:
400 W
Short term power:
1400 W
Nominal impedance:
8 ohm
Frequency response:
50Hz-18Khz -6dB
Low Frequency woofer:
1x15 - 3 coil noedymium inch
High frequency driver:
1 x 1 - 1.7 coil inch
Sensitivity (@1W/1m):
100 dB
Maximum SPL cont/peak:
128/132 dB
Dispersion:
80°x50° HxV
Crossover Frequency:
1.6 KHz
Recommended HP filter:
4oHz - 24dboct
Input connector:
2 x speakon NL4MD-V in & thru
Net Dimension (WxHxD):
425x750x421 - 16.7x29.5x16.6 mm/inch
Net Weight:
26/57.3 kg/lb
