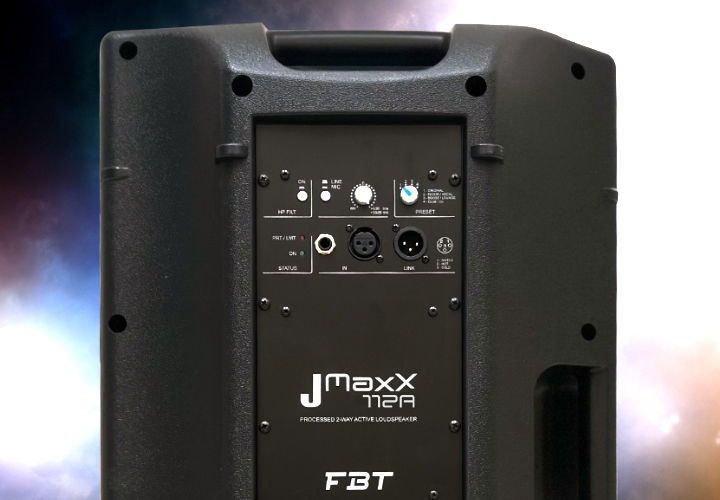

The J Maxx 112A is a 2-way, bi-amplified bass reflex design cabinet that packs a punch with its powerful features. This speaker is equipped with a 12” LF woofer with 2" voice coil and a 1" exit throat HF compression driver with 1” voice coil, providing a frequency response from 48Hz to 20 kHz. Additionally, the J Maxx 112A is incredibly lightweight, weighing in at only 13.8Kg. The J Maxx 112A is powered by Class D power amplifiers with switch mode power supply, delivering 700W RMS LF and 200W RMS HF. The speaker also features DSP with 4-EQ presets, allowing for customization of the sound output. The control panel includes XLR IN and XLR LINK, Volume, EQ presets, HP filter, and GND LFT switch, providing a comprehensive range of options for sound management.
In terms of design, the J Maxx 112A features 2 x M10 suspension points, a 35mm (1.3/8”) top-hat speaker stand socket, and a wall bracket mount flange plate. The speaker also boasts a 90°H x 60°V constant directivity horn and a stage monitor angling facility with 12°, 40° or 55° taper, making it versatile for different performance settings. J Maxx 112A is a top-of-the-line speaker that delivers exceptional sound quality and design features for professional use.
