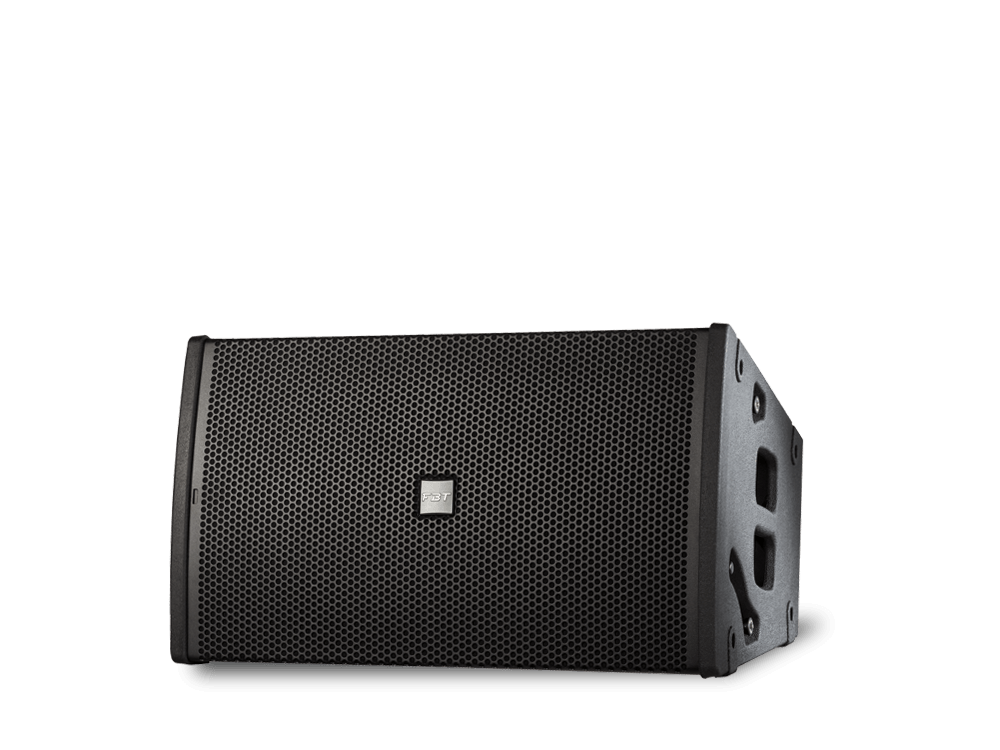

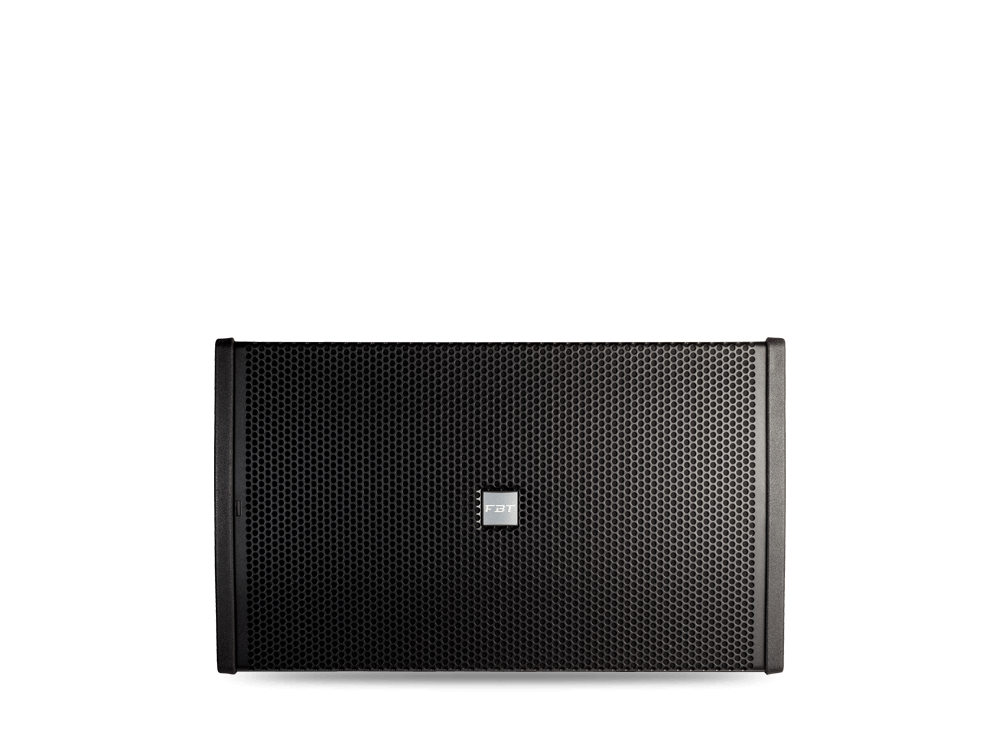

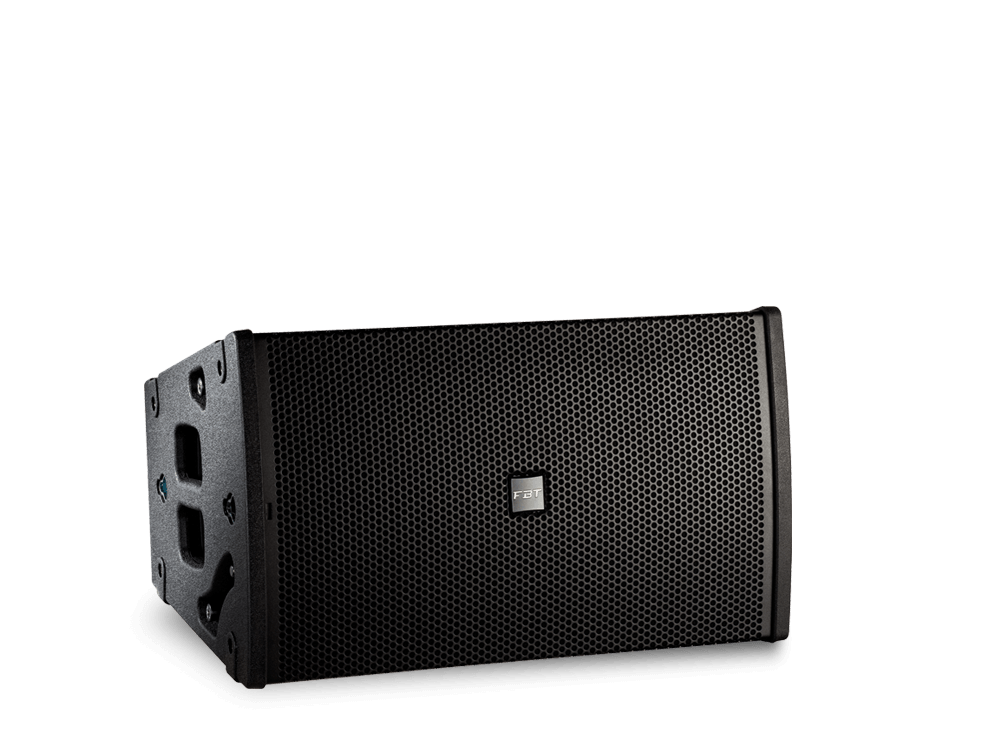

HORIZON VHA 406A

VERTICAL HORIZONTAL ACTIVE LINE ARRAY

Click on the image to zoom

The pinnacle of the entire project is the new amplification module with TCP/IP network interface. Based on the OCA ALLIANCE AES70 standard, the new MUSE family receives 24-bit 48-96Khz digital audio streaming from all devices compatible with the DANTE standard and communicates with the INFINITO System Management Suite remote control software. The module is contained in an aluminium chassis with intelligent forced ventilation and is equipped with an OLED display with encoder for parameter setting and a high-brightness blue front LED allows remote identification of the device, also in daylight. Fully developed in house by the FBT R&D team, INFINITO System Management Suite is the revolution that enhances the user experience, reaching new heights in terms of performance and simplicity.

The pinnacle of the entire project is the new amplification module with TCP/IP network interface. Based on the OCA ALLIANCE AES70 standard, the new MUSE family receives 24-bit 48-96Khz digital audio streaming from all devices compatible with the DANTE standard and communicates with the INFINITO System Management Suite remote control software. The module is contained in an aluminium chassis with intelligent forced ventilation and is equipped with an OLED display with encoder for parameter setting and a high-brightness blue front LED allows remote identification of the device, also in daylight. Fully developed in house by the FBT R&D team, INFINITO System Management Suite is the revolution that enhances the user experience, reaching new heights in terms of performance and simplicity.

Technical specifications
Code: 41741
Built-in amplifier LF/HF: 600/300 W RMS
Built-in amplifier peak LF/HF: 1200/600 W
Frequency response: 65Hz - 20KHz -6dB
Low frequency woofer: 4X6.5 - 1.5 coil inch
High frequency driver: 1x1.4 - 2.5 coil - neodymium inch
Maximum SPL cont/peak: 128/133 dB
Dispersion: 90x20 H x V
Input impedance: 22 Kohm
Crossover frequency: 1.2 KHz
Ac power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5 mm/inch
Net Dimension (WxHxD): 612x360x397 / 24.1x14.2x15.6 mm/inch
Net weight: 29 / 63.9 kg/lb
Transport Dimension (WxHxD): 695x440x475 / 27.4x17.3x18.7 mm/inch
Transport weight: 33/72.7 kg/lb
