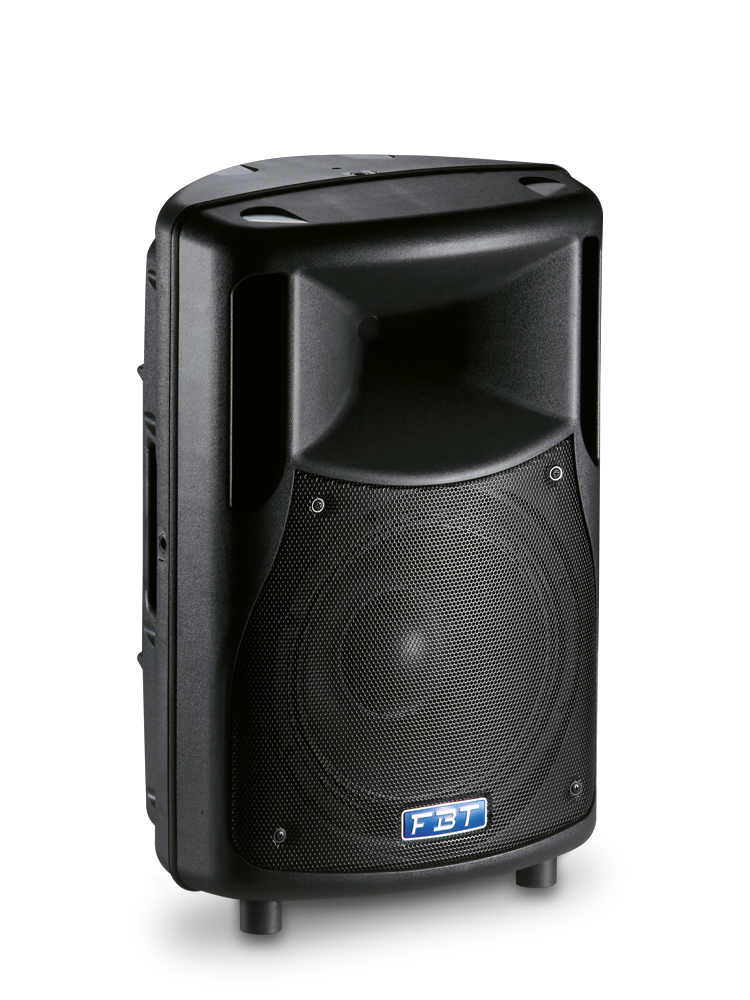

The FBT HiMaxX 40A speaker features lightweight, yet rugged gas injected molded polypropylene cabinet construction. The asymmetrical shape of the HiMaxX 40A cabinet also allows use as a floor stage monitor.
The HiMaxX 40A speaker is a two way design incorporating a custom B&C 12” low frequency woofer 3” voice coil with a neodymium magnet structure, die cast aluminum frame and a B&C 1,7” voice coil compression driver coupled to a 90°H x 60°V horn with a 1” exit. The active internal crossover is at a fixed frequency of 1,6kHz. With a frequency range of 45Hz-20kHz, the HiMaxX 40A provides hi fidelity sound for both speech and music applications with a maximum SPL of 132.5dB. A front face steel grille protects the woofer from external damage.

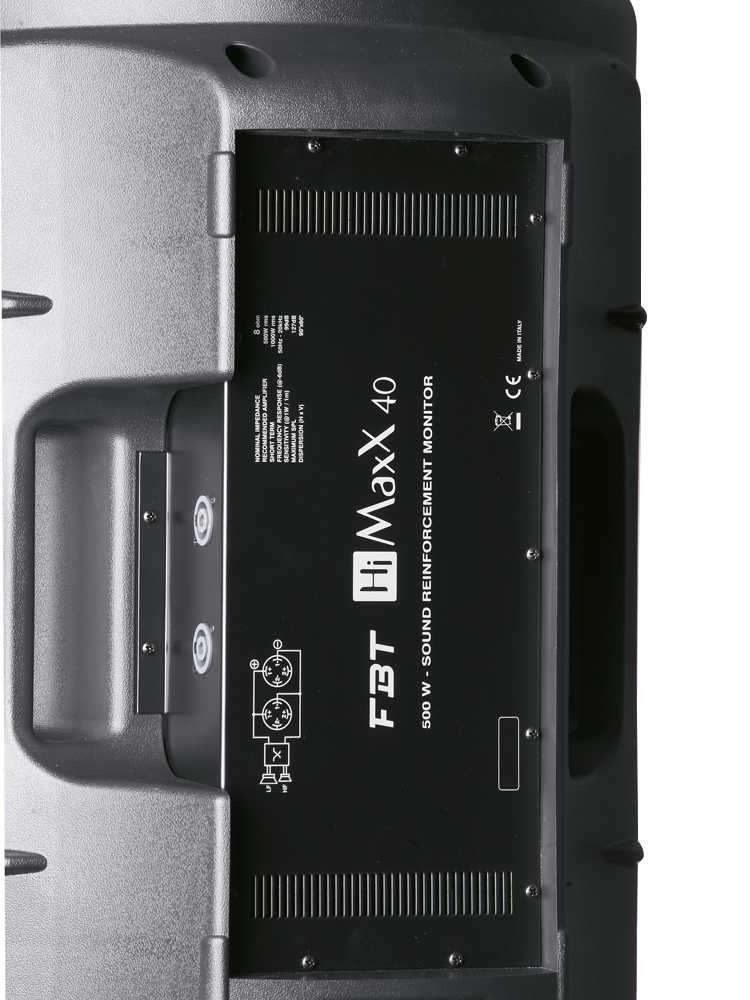

The bi amplified HIMaxX 40A active speaker features a 1000W RMS Pulse Width Modulation (PWM) low frequency max. amp and a 250W RMS class G high frequency max. amp. The control panel features a Master volume control, 3 band Eq. with -15/+6dB of cut/boost @ 80Hz LF, - 15/+15dB of cut/boost @ 2,5k midrange and -15/+6dB cut/boost @ 10kHz HF, a balanced neutrik input combo jack, balanced XLR link output jack, mic/line input switch, ground lift switch, stereo RCA input with a separate volume control, led power on, protection and limiter overload led indicators.

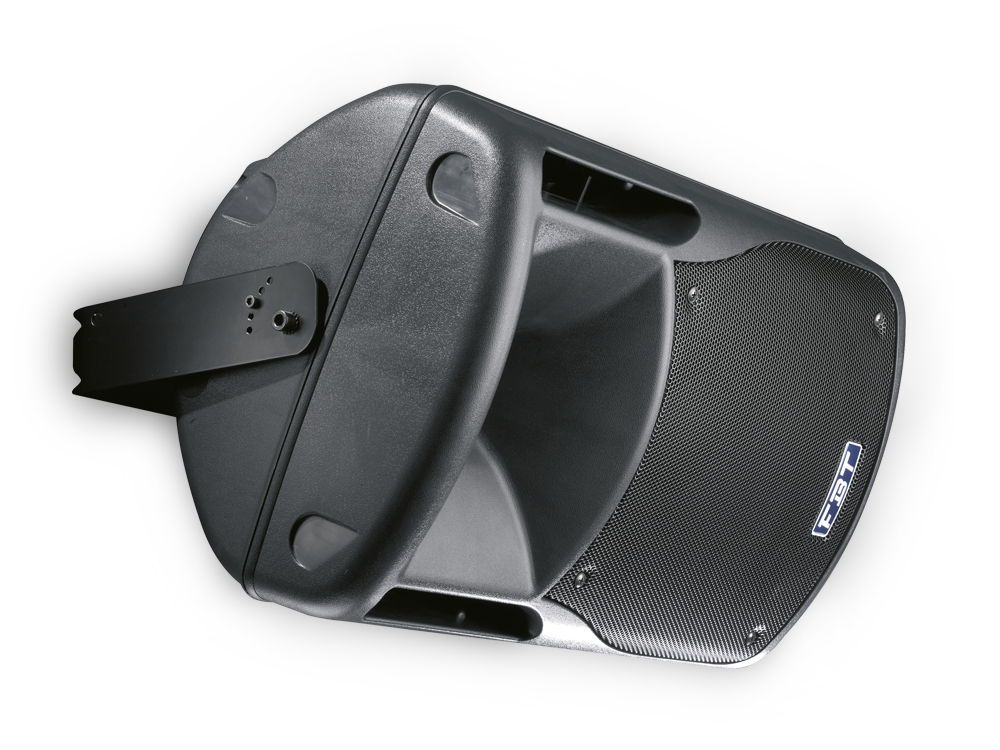

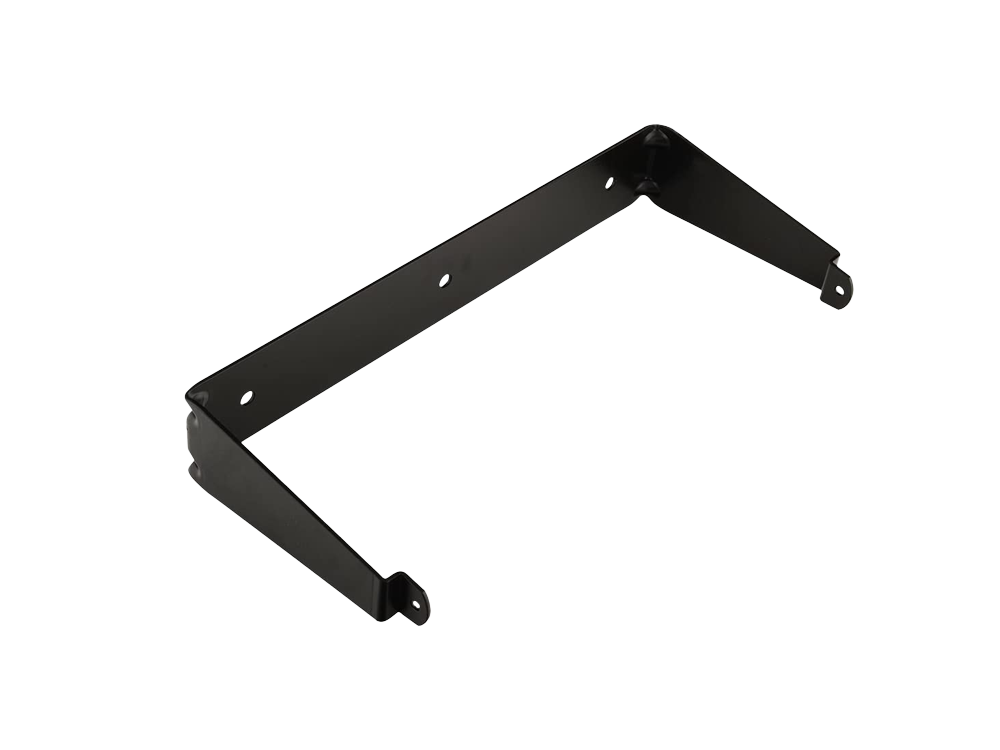

The four M10 fly points built into the cabinet, along with the optional Box 100 or Box 101 mounting brackets allow the HiMaxX 40A speaker to be surface mounted on walls or ceilings. A standard 1,38” speaker stand socket allows the HiMaxX 40A to be mounted on speaker stands.
