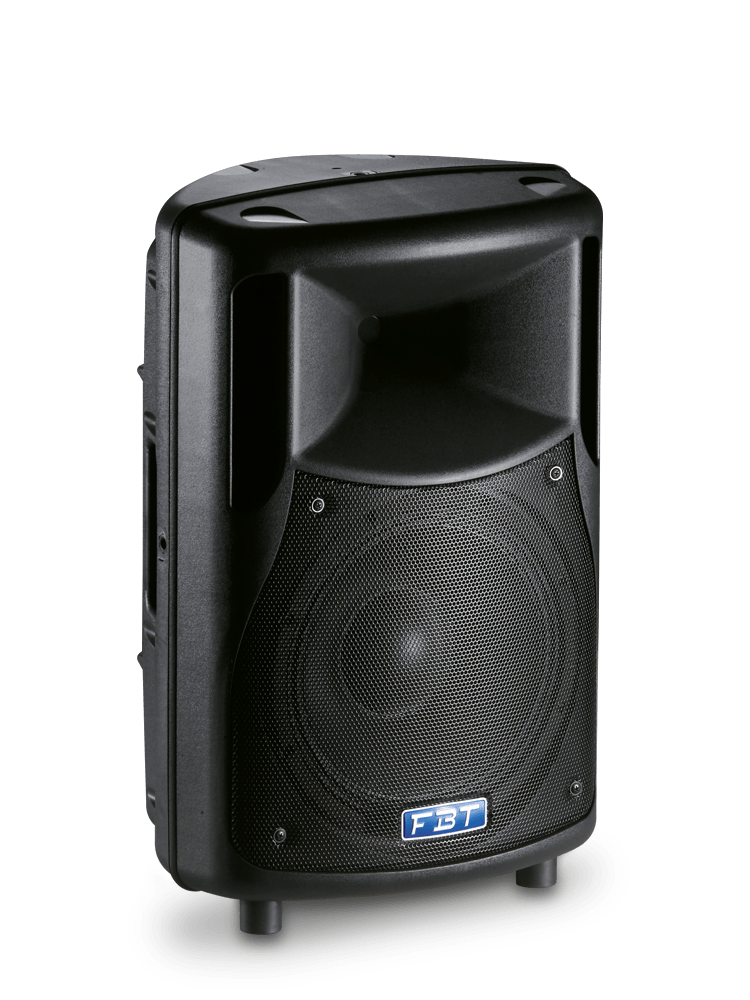

HIMAXX 40
PASSIVE POINT SOURCE
neodymium woofer
permanent installations
lightweight
Click on the image to zoom
- Configuration: 2 way
- Low Frequency Woofer: 1 x 12'' - 3'' VC Neodymium
- High Frequency Driver: 1 x 1'' - 1.7'' VC
- Recommended Amplifier: 500W RMS
- Maximum SPL: 129dB
- Material: Polypropylene
Technical specifications
Code:
26938
Configuration:
2 way
Recommended amplifier:
500 W RMS
Long Term power:
250 W
Short term power:
1000 W
Nominal impedance:
8 ohm
Frequency response:
50Hz - 20kHz -6dB
Low Frequency woofer:
1x12 - 3 coil inch
High frequency driver:
1 - 1.7 coil inch
Sensitivity (@1W/1m):
99 dB
Maximum SPL cont/peak:
127/131 dB
Dispersion:
90° x 60° HxV
Crossover Frequency:
1.6 KHz
Recommended HP filter:
45Hz - 24dboct
Input connector:
2 x Speakon
Net Dimension (WxHxD):
407x634x370 - 16x24.9x14.5 mm/inch
Net Weight:
16 / 35.2 kg/lb
Accessories
BOX100
