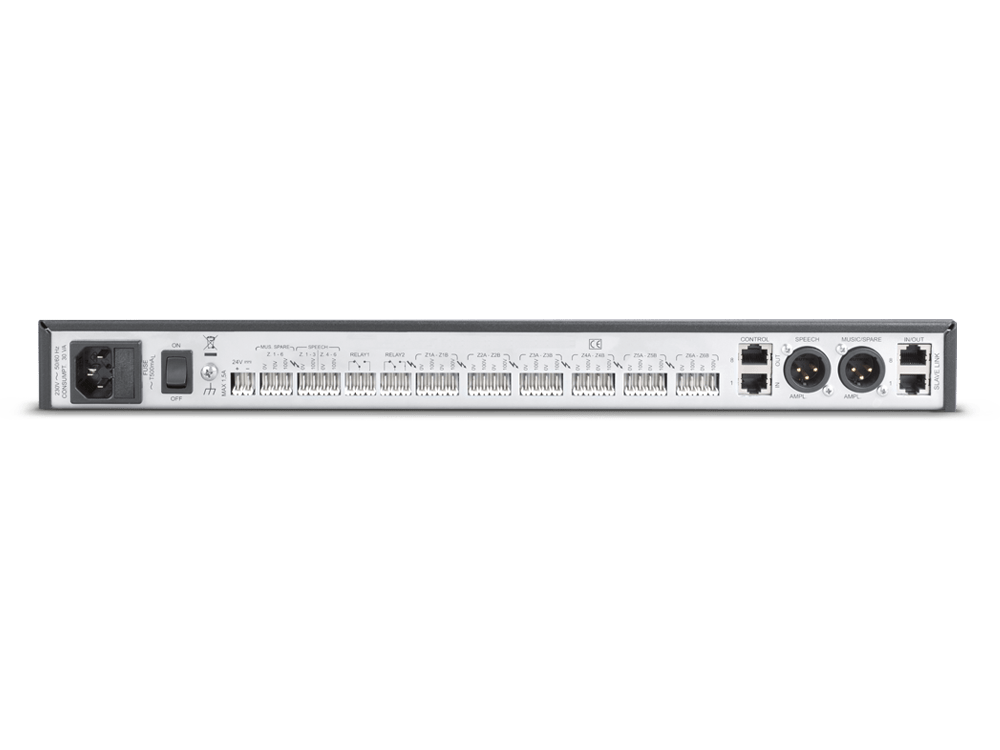

The router VAR 2006 is the best solution for the sound systems with a very interesting compromise between price and performance; connected to a VAIE 2250 control line, it can drive up to 6 zones with external power amplifiers (MPA5000 range) to a maximum of 1000 W. Each output line consists of 2 speaker circuits (A & B) in order to guarantee the complete area coverage also in case of one loudspeaker circuit failure. The maximum system configuration includes 6 controllers connected to 36 routers (6 for each VAIE 2250) for a total of 216 zones. The router can be used with power signals (amplifier 100 V output).
Two different configurations are possible: in the first one you can connect 2 amplifiers (one for music and one for speech); in the second configuration it is possible to manage 2 voice amplifiers (3 zones each) and one music amplifier. In any case all connected amplifiers are constantly monitored and the music one can be also used as backup: in case of a failure it automatically replaces the voice amplifier.
- 6 speakers zones with double output lines A+B
- Double input 100 V for 1 or 2 voice amplifiers (IN 1 zone 1÷3, IN 2 zone 4÷6)
- Front panel push button to switch on/off the music on each single zone
- RJ45 socket for VAIE 2250 connection
- 7 controlled input contacts
- 6 open collector outputs
- 2 relay outputs
