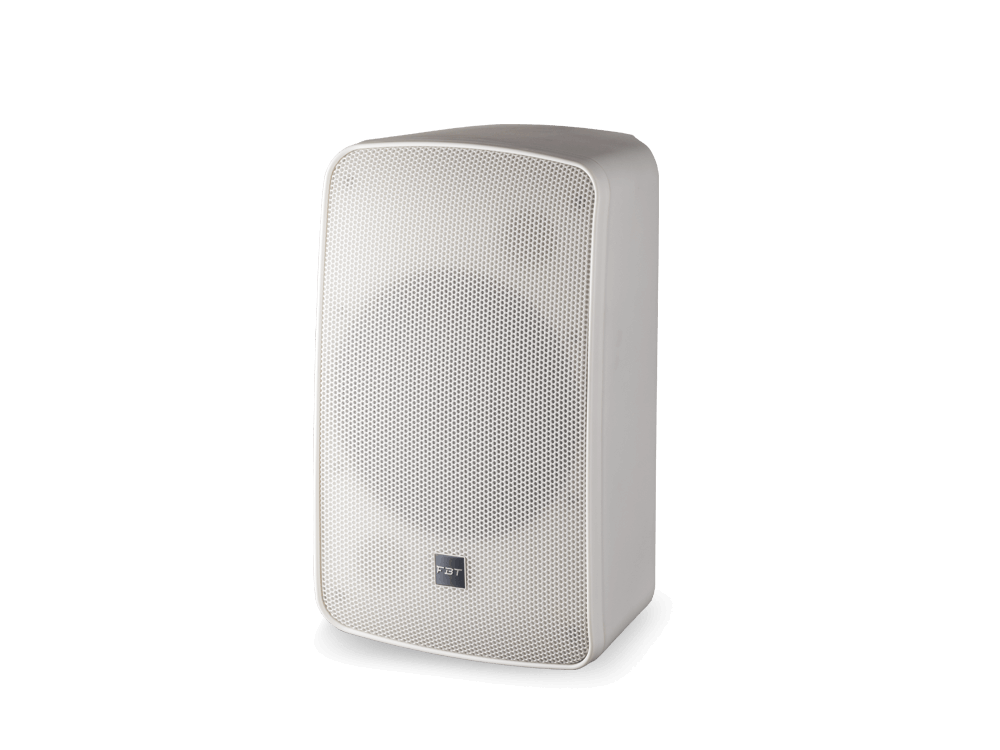

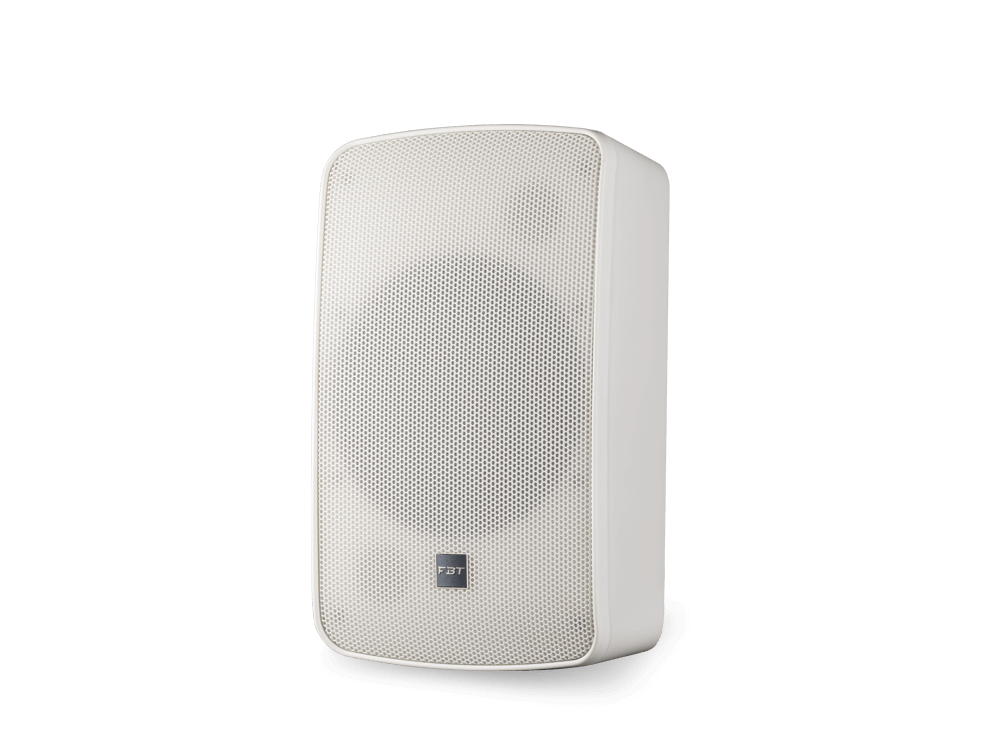

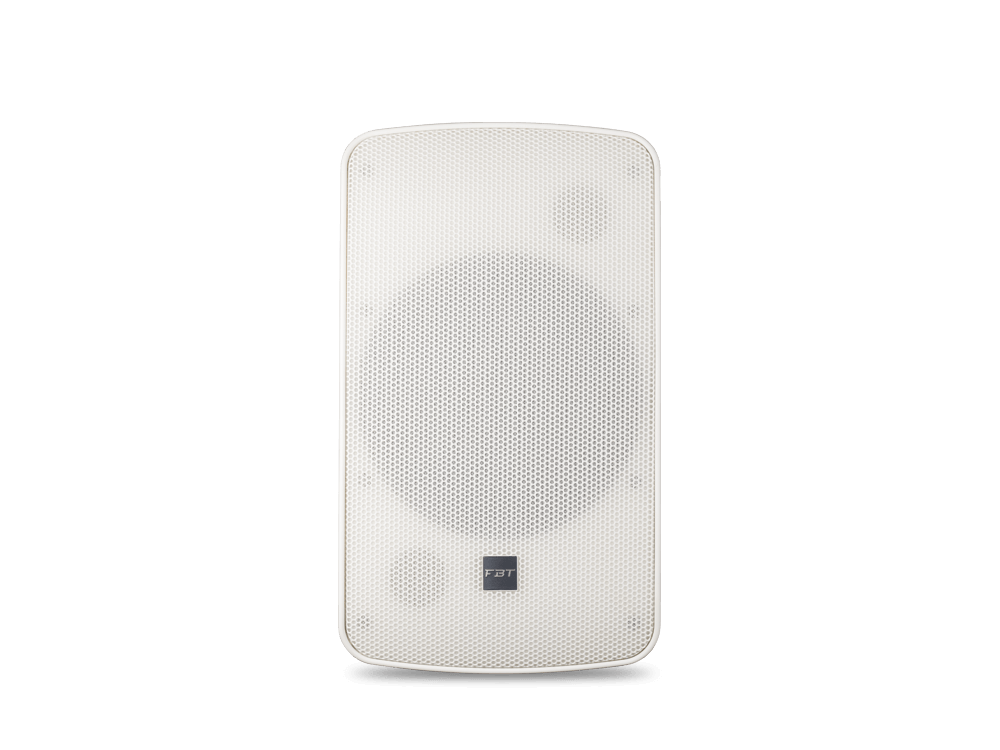

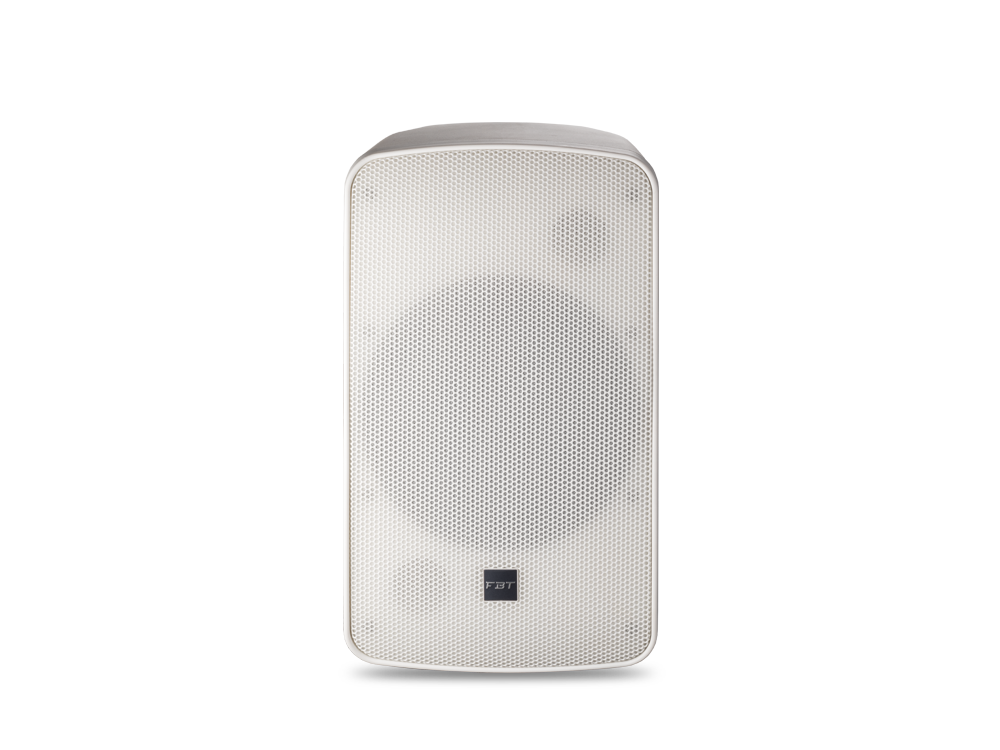

Canto 8C
Passive Point Source
Click on the image to zoom
- Configuration: 2 way coaxial
- Low Frequency Woofer: 1 x 8'' - 2'' VC
- High Frequency Driver: 1 x 1'' - 1.4'' VC
- Recommended Amplifier: 250W RMS
- Maximum SPL: 125dB
- Material: Gas injected polypropylene
Technical specifications
Code:
45476 (Black) - 45475 (White)
Configuration:
2 way coax
Recommended amplifier:
250W
Long Term power:
125W
Short term power:
500W
Frequency response:
60Hz - 20kHz @-6dB
Low Frequency woofer:
8’’ / 2’’ VC
High frequency driver:
1’’ / 1.4’’ VC
Sensitivity (@1W/1m):
96
Maximum SPL cont/peak:
120 / 125
Dispersion:
80°
Crossover Frequency:
---
Recommended HP filter:
50Hz - 24dB/oct.
Recommended external filter:
FBT DSP Processor
Input connector:
Euroblock in & thru
Net Dimension (WxHxD):
240x416x240mm / 9.44x16.37x9.44 inch
Net Weight:
6Kg / 13.22Lb
Accessories

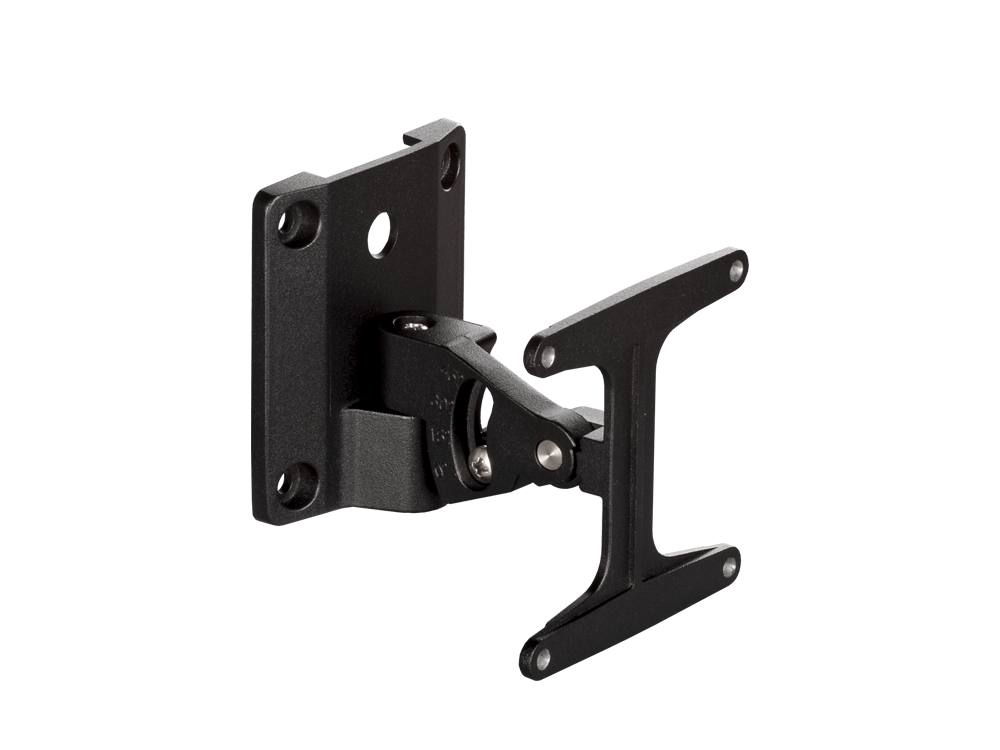

WM-68
WM-68
Wall Mount Speaker Bracket
Code: 44856 (Black) - 44865 (White)
Directional wall mount for Canto 8C-8CA
Available in black or white
