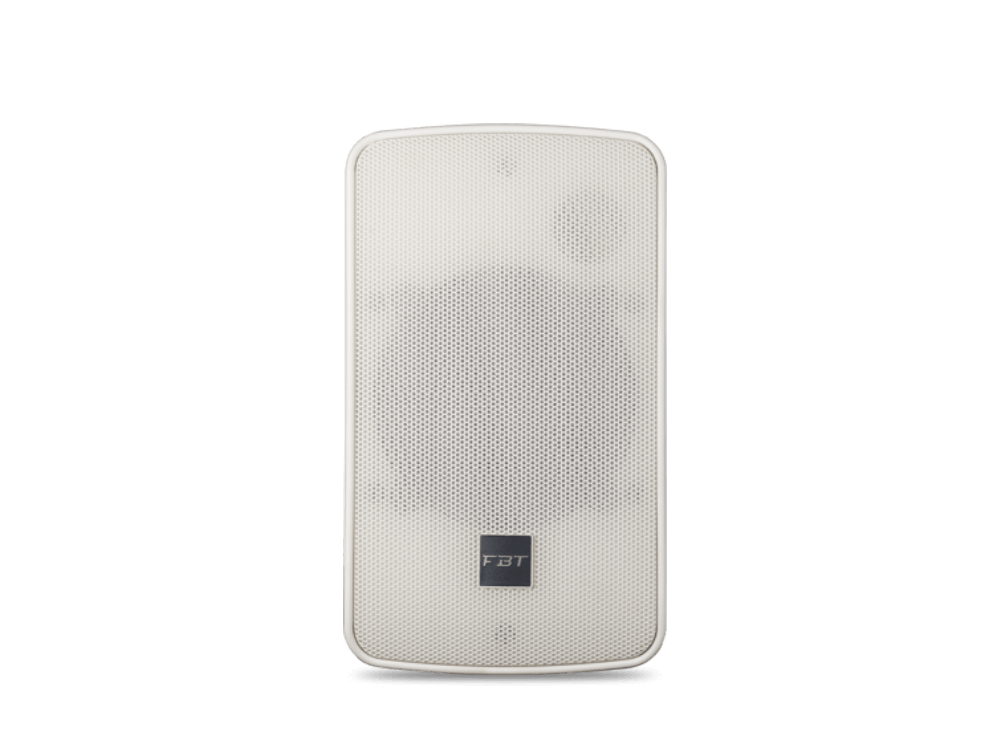

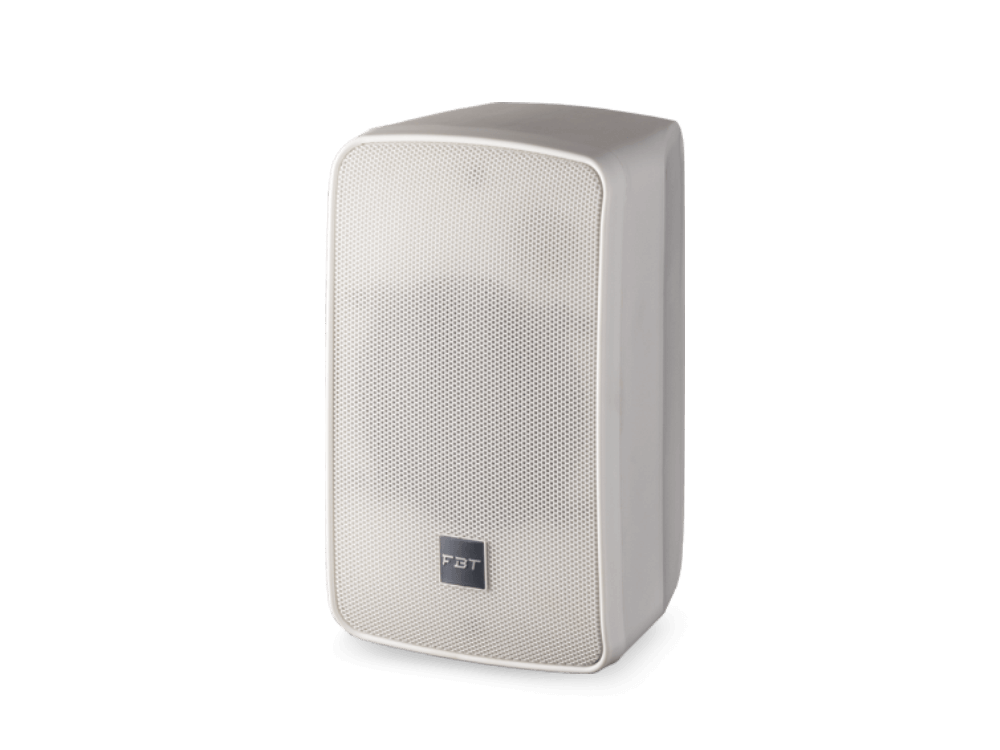

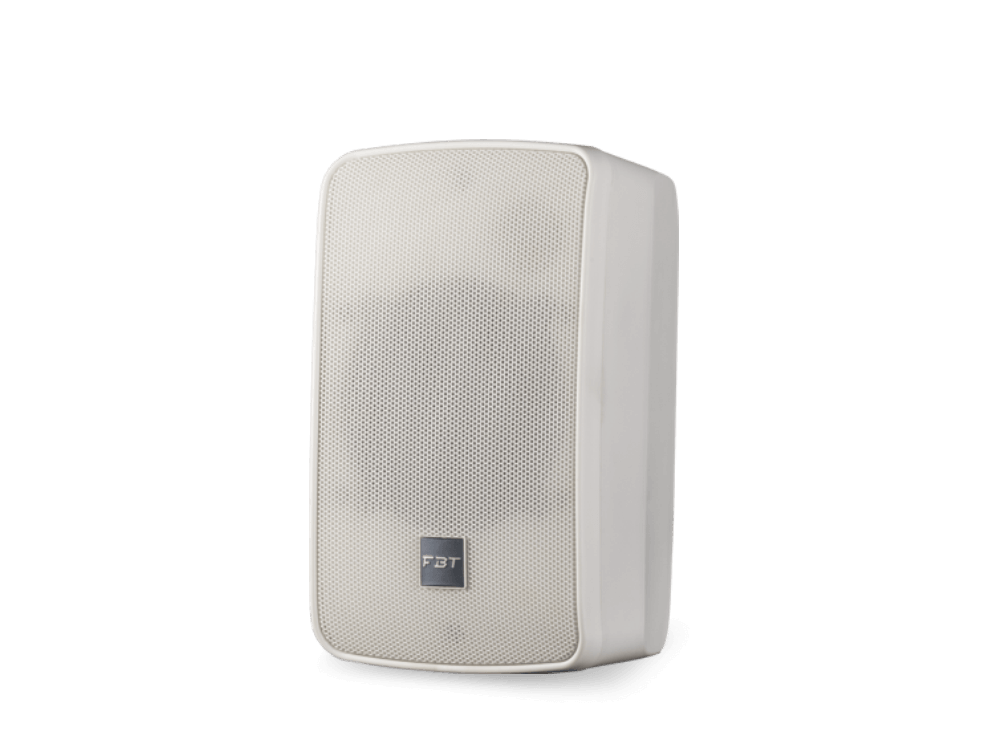

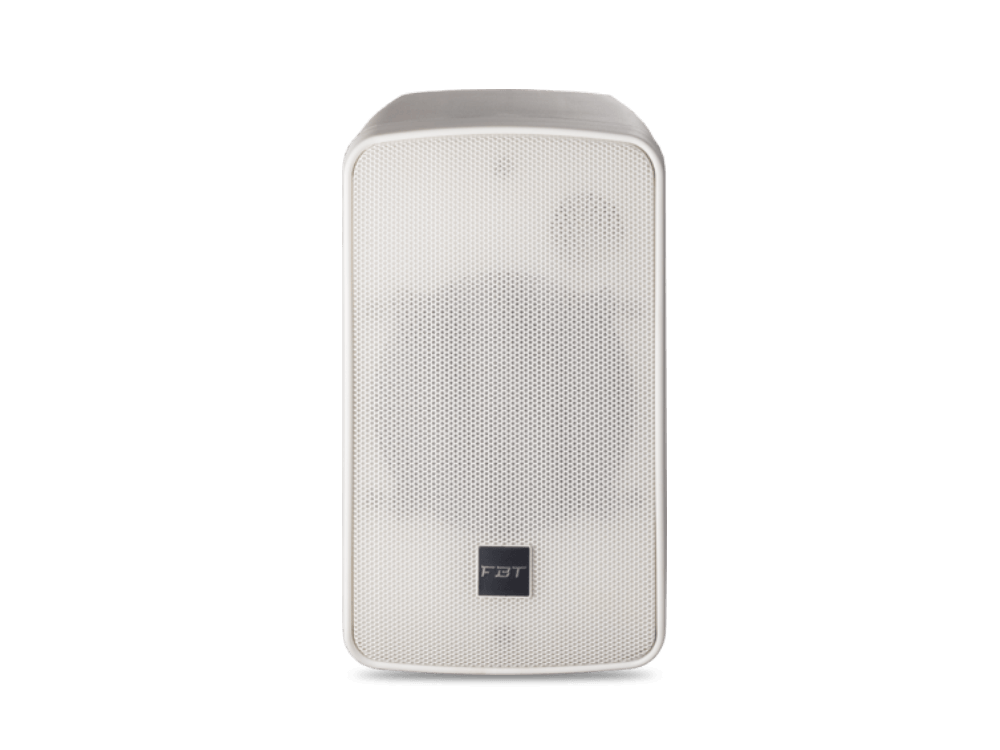

Canto 5CT
Passive Point Source
Click on the image to zoom
- Configuration: 2 way coaxial
- Low Frequency Woofer: 1 x 5'' - 1.5'' VC
- High Frequency Driver: 1 x 1'' - 1'' VC
- Recommended Amplifier: 120W RMS
- Transformer: 70V - 100W
- Maximum SPL: 117dB
- Material: Gas injected polypropylene
Technical specifications
Code:
45507 (Black) - 45395 (White)
Configuration:
2 way coax
Recommended amplifier:
120W
Long Term power:
60W
Short term power:
240W
Nominal impedance:
16Ohm
Frequency response:
80Hz - 20KHz @-6dB
Low Frequency woofer:
5'' - 1.5'' VC
High frequency driver:
1'' - 1'' VC
Sensitivity (@1W/1m):
93dB
Maximum SPL cont/peak:
114 / 117dB
Dispersion:
90° HxV
Crossover Frequency:
3 KHz
Recommended HP filter:
70hz - 24db/oct
Recommended external filter:
FBT DSP Processor
Input connector:
Euroblock in & thru
Net Dimension (WxHxD):
160x276x170mm / 6.29x10.86x6.69 inch
Net Weight:
3.5Kg / 7.71Lb
Accessories
WM-45
Wall Mount Speaker Bracket
Code: 44855 (Black) - 44864 (White)
WM-45
