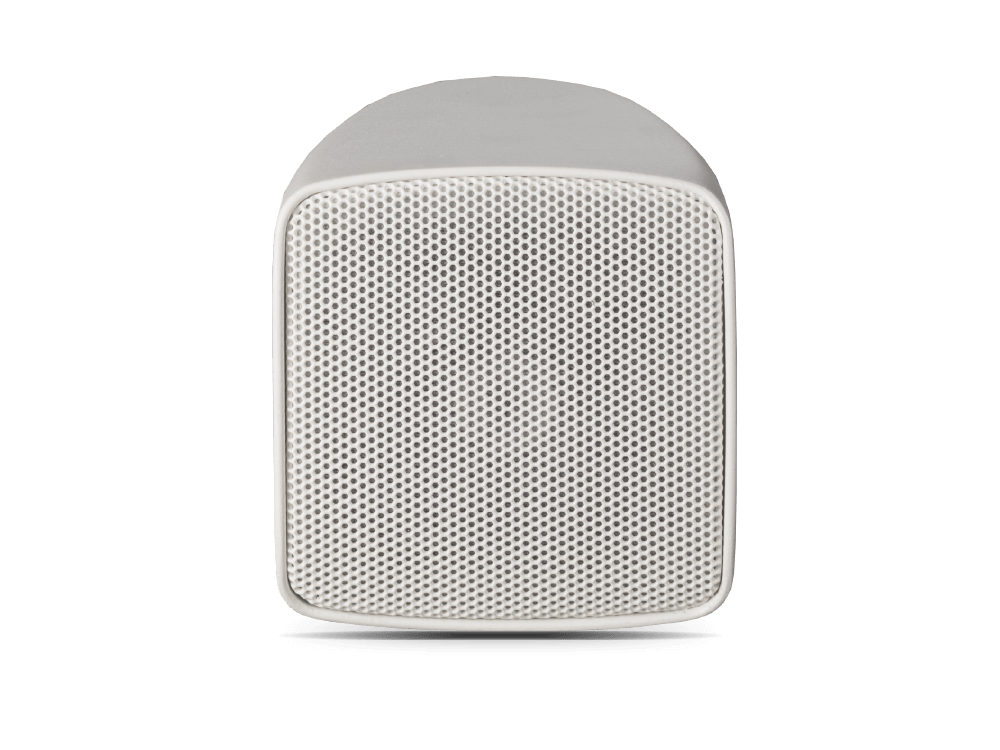

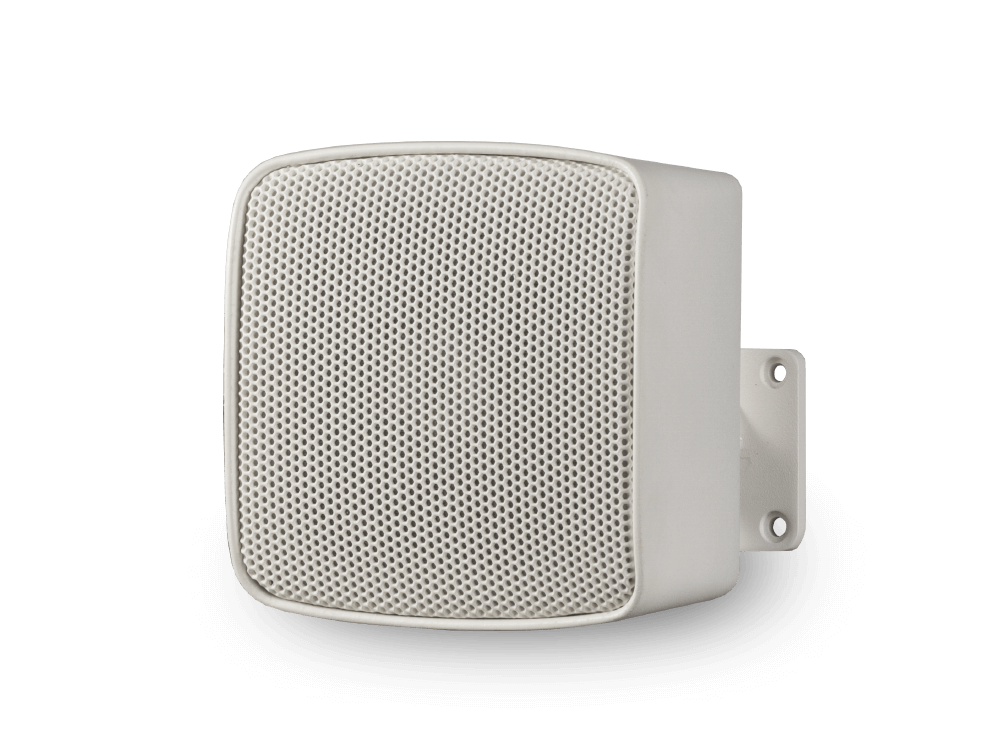

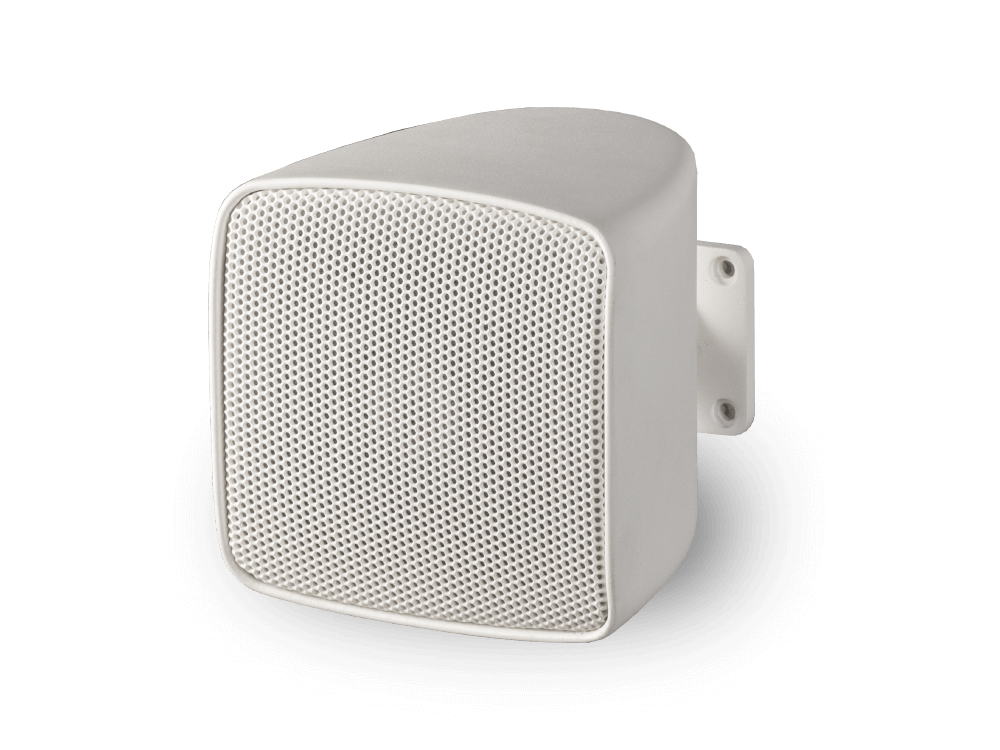

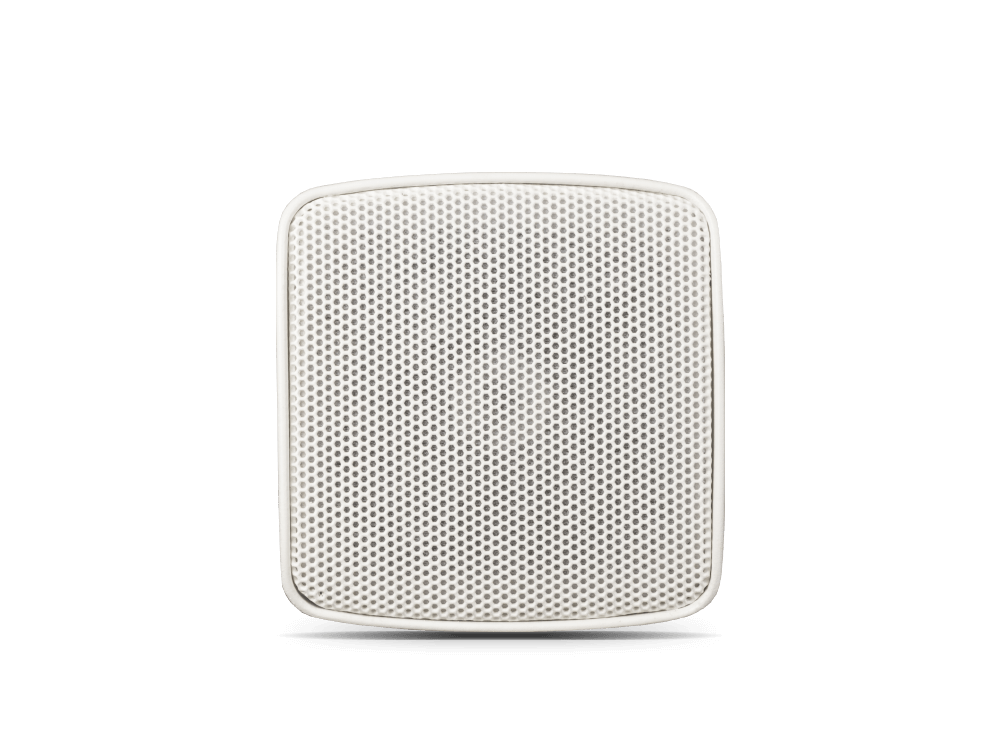

Canto 3C
Passive Point Source
Click on the image to zoom
- Configuration: 2 way coaxial
- Low Frequency Woofer: 1 x 3.4'' - 0.8'' VC
- High Frequency Driver: 1 x 0.6'' - 0.6'' VC
- Recommended Amplifier: 40W RMS
- Maximum SPL: 108dB
- Material: ABS
Technical specifications
Code:
45504 (Black) - 45393 (White)
Configuration:
2 way coaxial
Recommended amplifier:
40W RMS
Long Term power:
20W
Short term power:
80W
Nominal impedance:
16Ohm
Frequency response:
140Hz - 20KHz @-6dB
Low Frequency woofer:
3.4'' - 0.8 VC
High frequency driver:
0.6'' - 0.6 VC
Sensitivity (@1W/1m):
91 dB
Maximum SPL cont/peak:
105 / 105 dB
Dispersion:
120° HxV
Crossover Frequency:
5 kHz
Recommended HP filter:
130Hz - 24dboct
Recommended external filter:
FBT DSP Processor
Input connector:
Euroblock in & thru
Net Dimension (WxHxD):
100x104x139mm / 3.93x4.09x5.47 inch
Net Weight:
0.7Kg / 1.54Lb
Accessories

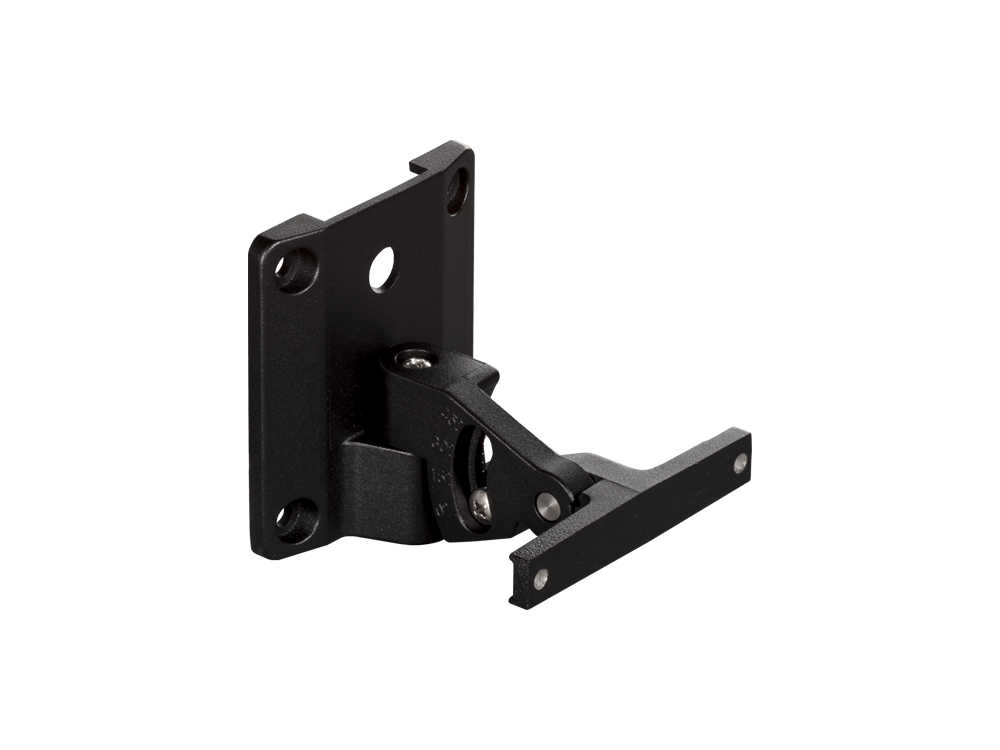

WM-45
Wall Mount Speaker Bracket
Code: 44855 (Black) - 44864 (White)
WM-45
