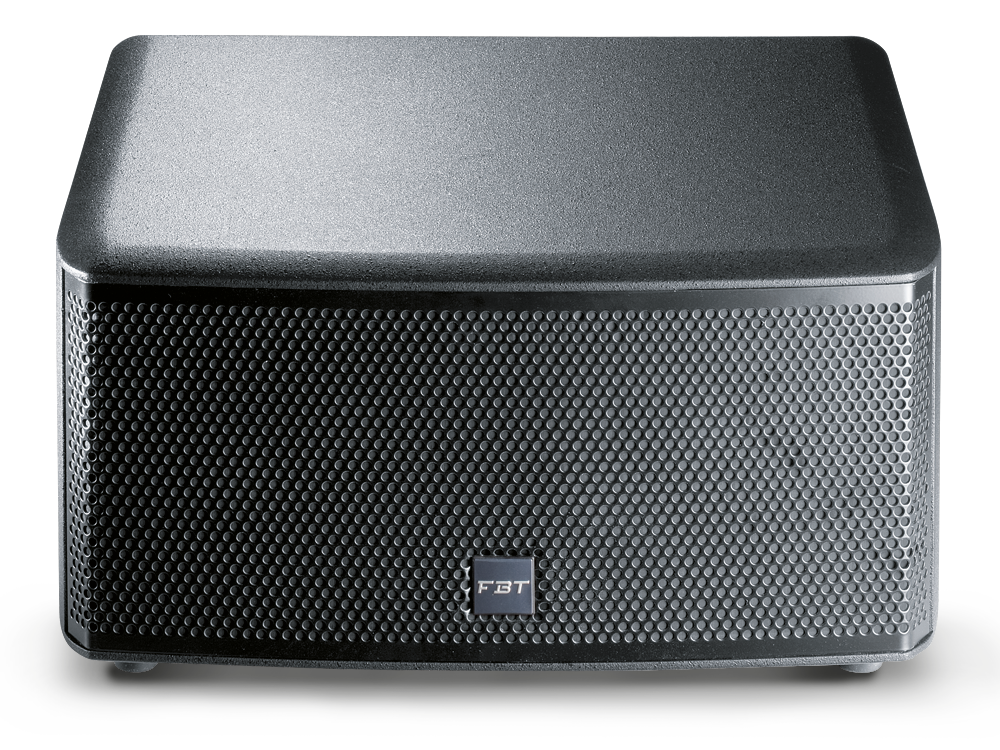

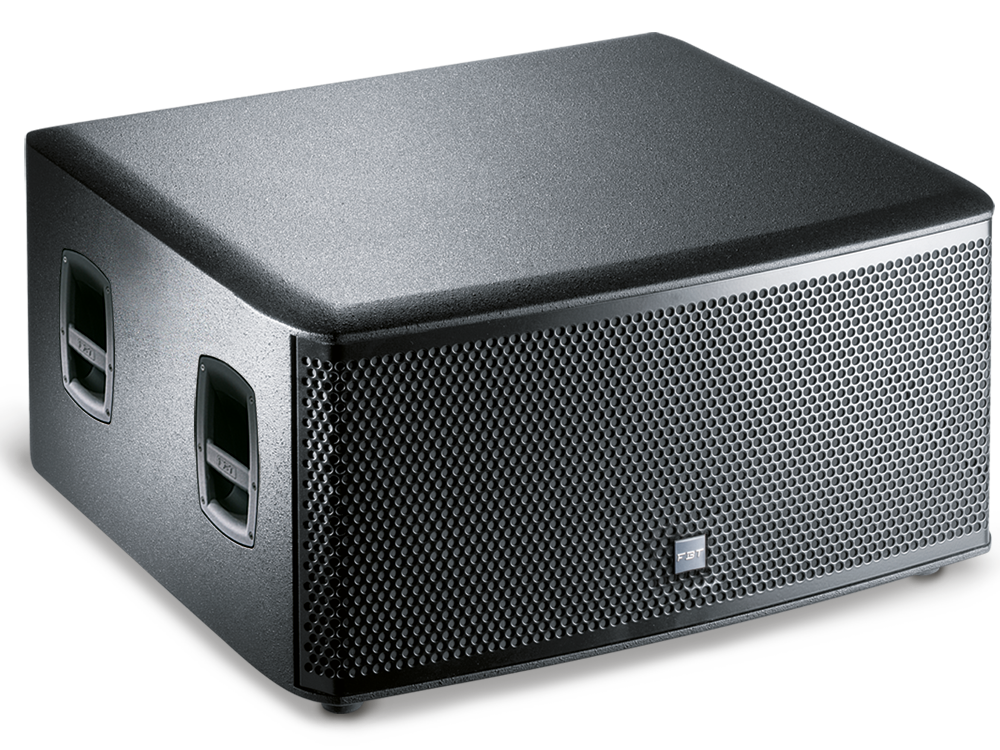

ARCHON 215S

PASSIVE SUBWOOFER

Click on the image to zoom

Archon subwoofers have been designed to complement the Archon point sources. Cabinets crafted in birch plywood and low frequency woofers guarantee exceptional sound quality in different performances. The four aluminum handles make the loudspeaker easy to carry and secure to install.

Recommended amplifier 2000W RMS. The omnidirectional coverage of the two 15" LF subwoofer delivers in the listening area up to 139/142 dB SPL half-space. Frequency response from 35Hz to 500Hz.

  • Configuration: 2 way
  • Low Frequency Woofer: 2 x 15'' - 3'' VC
  • Recommended Amplifier: 2000W RMS
  • Maximum SPL: 132dB half space
  • Material: Baltic birch plywood
Technical specifications
Code: omni HxV
Configuration: 1 way
Recommended amplifier: 2000 W RMS
Long Term power: 1000 W
Short term power: 4000 W
Nominal impedance: 4 ohm
Frequency response: 35Hz - 500Hz -6dB
Low Frequency woofer: 2 x 15 - 3 coil inch
Maximum SPL cont/peak: 139/142 half-space dB
Dispersion: omni HxV
Crossover Frequency: external active KHz
Input connector: 2 x speakon NL4 in & thru
Net Dimension (WxHxD): 900x485x640 - 35.43x19.09x25.19 mm/inch
Net Weight: 50/110.2 Kg/lb
Transport Dimension (WxHxD): 1000x530x800 - 39.4x20.8x31.5 mm/inch
Transport Weight: 60/132.3 kg/lb
