ARCHON 115

PASSIVE POINT SOURCE

pole mounted

flying hardware

Click on the image to zoom

Description Technical specifications Download Accessories Related products

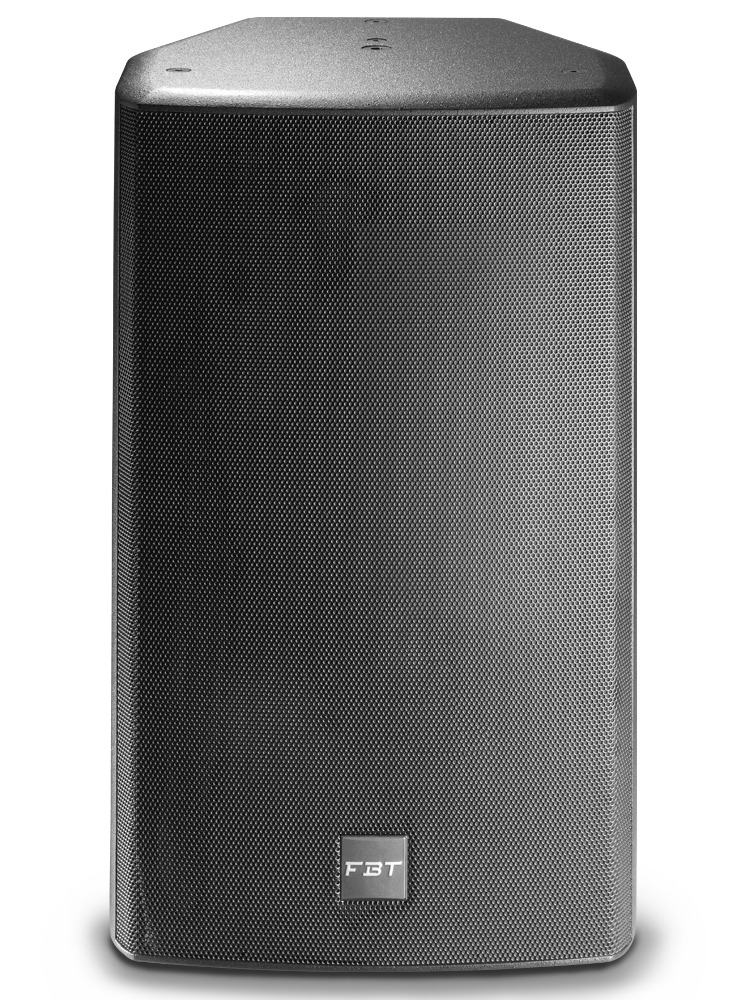

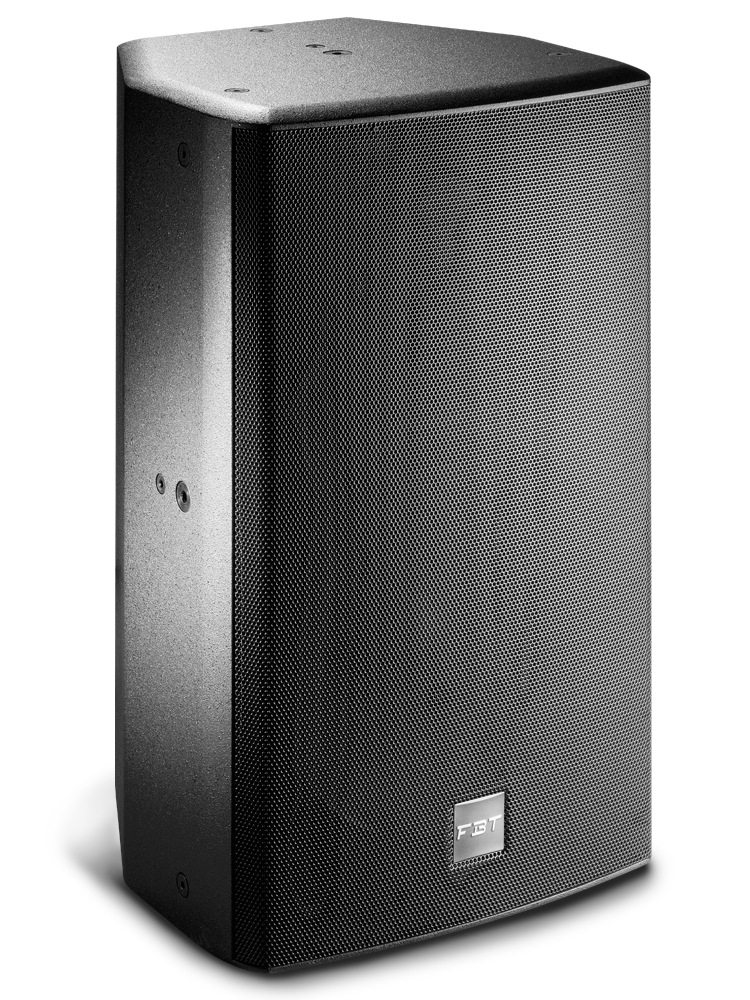

Archon 115 is a full range/bi-amp 2 ways point source with a crafted birch plywood cabinet.

Recommended amplifier 1000W RMS. Rotatable horns for optimal horizontal or vertical sound dispersion angle. The 60° H x 40° V coverage of this 15" LF / 2" HF delivers in the listening area up to 130/134 dB SPL. Optional line transformer 100V/300W. Frequency response from 48Hz to 18kHz. B&C custom designed high excursion LF woofers and HF compression drivers. Full suspension possibilities through multiple M10 threaded rigging points and a wide range of mounting hardware. Flexible mounting hardware and different accessories for ease of installation. Rear pocket handle to ease lifting and installation of the cabinet.

Configuration: 2 way
Low Frequency Woofer: 1 x 15'' - 3'' VC
High Frequency Driver: 1 x 2'' - 2.5'' VC
Recommended Amplifier: 1000W RMS
Transformer (optional): 100V - 300W
Maximum SPL: 134dB
Material: Baltic birch plywood

The wide hand made customizations offered made the Archon series a cult between the FBT products. Not only different RAL paint colors, but also paint finishes like glossy, matt, textured and more assure the finest camouflage in the environment. The acoustically transparent steel grilles with antidust protection cloth complete this design shaping the perfect speakers for indoor spaces. The whole Archon series is characterized by extremely low distortion, fast responding dynamics and wideband response and it has been designed for applications that require high SPL levels. The rotatable logo badge follows vertical or horizontal installation.ì
