ARCHON 112
PASSIVE POINT SOURCE
pole mounted
flying hardware
- Configuration: 2 way
- Low Frequency Woofer: 1 x 12'' - 3'' VC
- High Frequency Driver: 1 x 1.4'' - 2.5'' VC
- Recommended Amplifier: 1000W RMS
- Transformer (optional): 100V - 300W
- Maximum SPL: 133dB
- Material: Baltic birch plywood

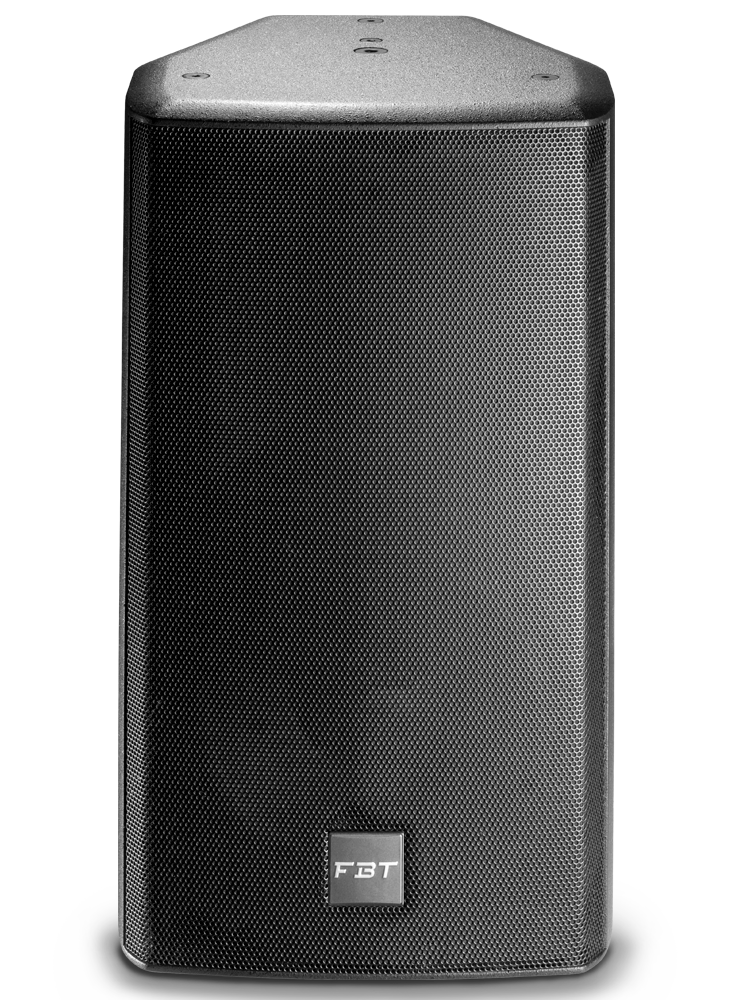

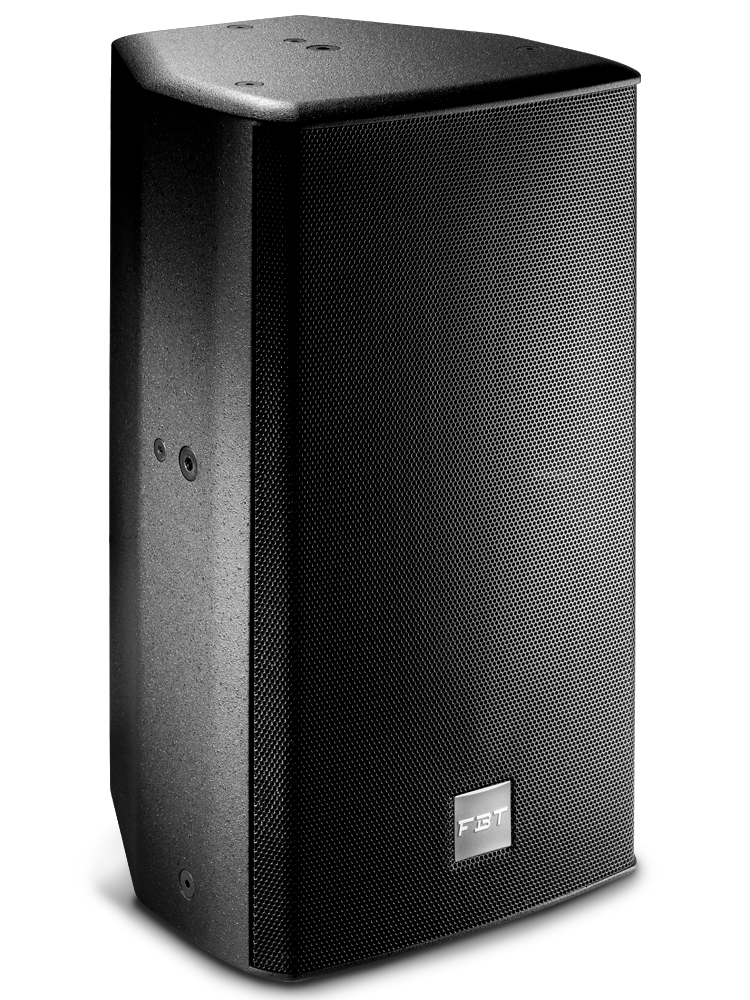

Archon 112 is a full range/bi-amp 2 ways point source with a crafted birch plywood cabinet.
Recommended amplifier 1000W RMS. Rotatable horns for optimal horizontal or vertical sound dispersion angle. The 70° H x 50° V coverage of this 12" LF / 1.4" HF delivers in the listening area up to 129/133 dB SPL. Optional line transformer 100V/300W. Frequency response from 50Hz to 18kHz. B&C custom designed high excursion LF woofers and HF compression drivers. Full suspension possibilities through 12 M10 threaded rigging points and a wide range of mounting hardware. Flexible mounting hardware and different accessories for ease of installation. Rear pocket handle to ease lifting and installation of the cabinet.
The wide hand made customizations offered made the Archon series a cult between the FBT products. Not only different RAL paint colors, but also paint finishes like glossy, matt, textured and more assure the finest camouflage in the environment. The acoustically transparent steel grilles with antidust protection cloth complete this design shaping the perfect speakers for indoor spaces. The whole Archon series is characterized by extremely low distortion, fast responding dynamics and wideband response and it has been designed for applications that require high SPL levels. The rotatable logo badge follows vertical or horizontal installation.

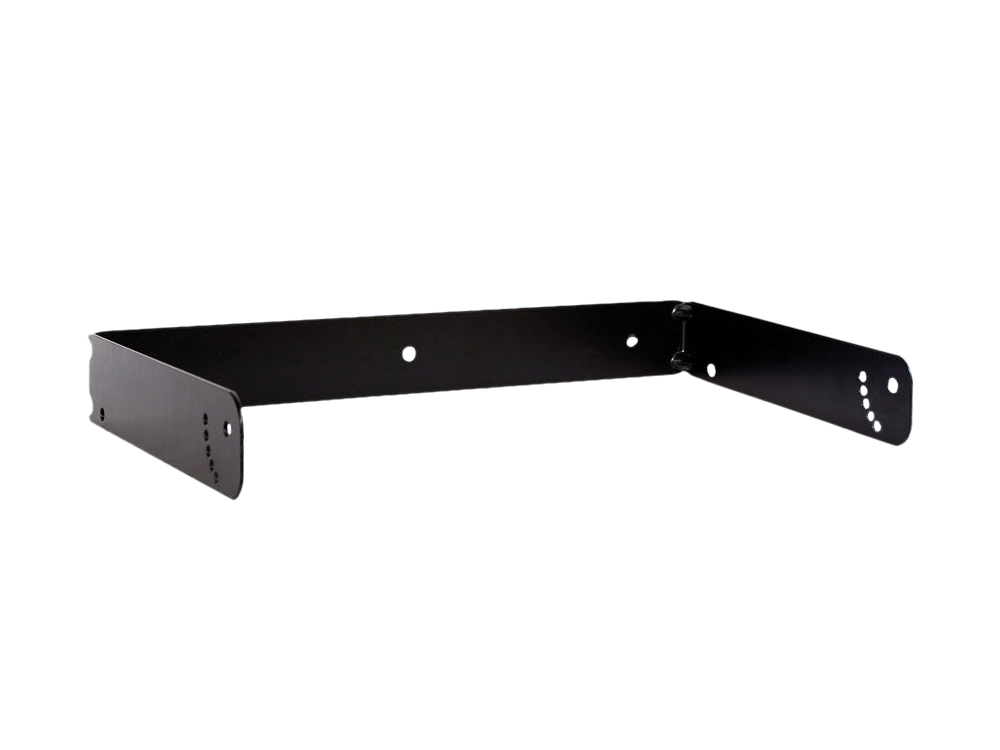

Wall metal bracket to mount in horizontal position</p>

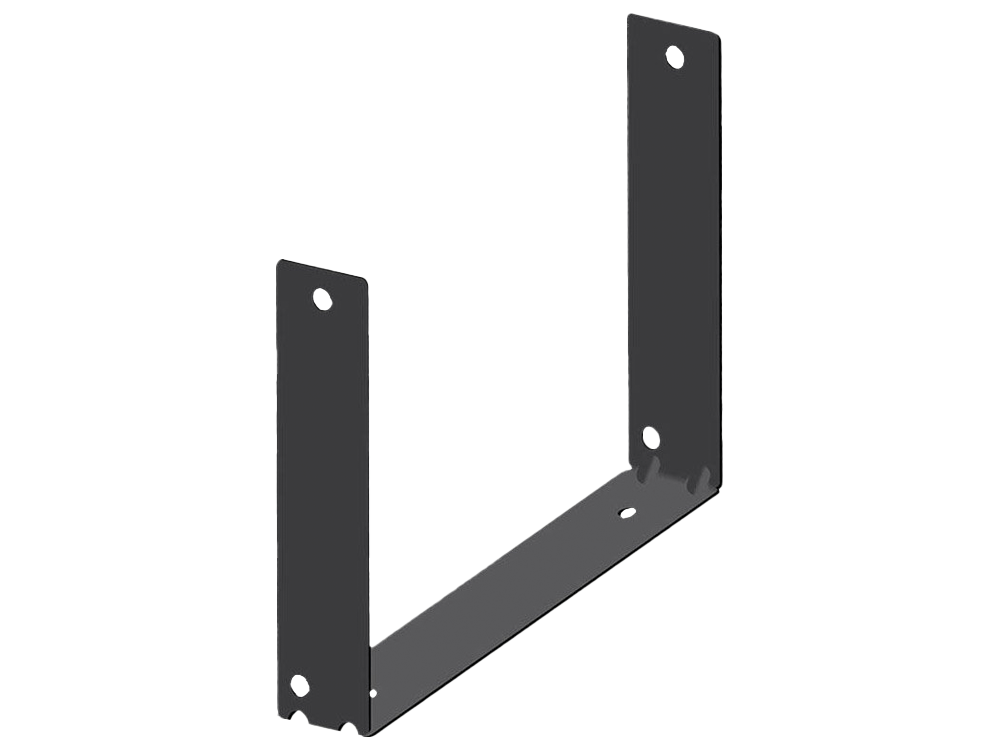

Wall metal bracket to mount in vertical position</p>
