ARCHON 110

PASSIVE POINT SOURCE

pole mounted

flying hardware

Click on the image to zoom
  • Configuration: 2 way
  • Low Frequency Woofer: 1 x 10'' - 2.5'' VC
  • High Frequency Driver: 1 x 1'' - 1.7'' VC
  • Recommended Amplifier: 700W RMS
  • Transformer (optional): 100V - 200W
  • Maximum SPL: 129dB
  • Material: Baltic birch plywood

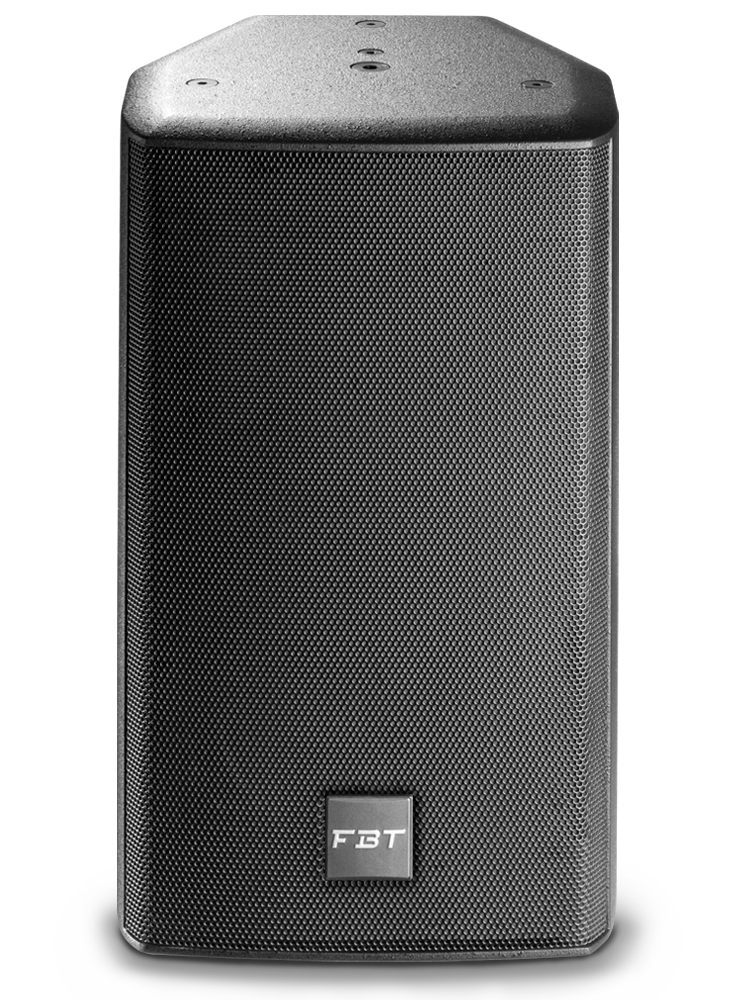

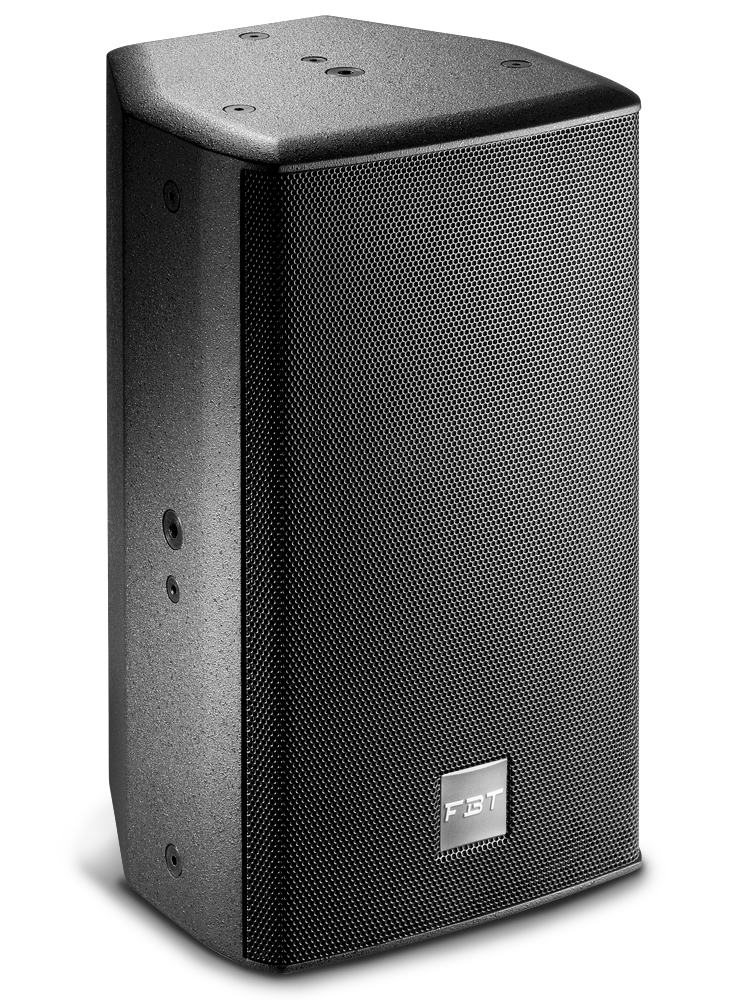

Archon 110 is a full range/bi-amp 2 ways point source with a crafted birch plywood cabinet.

Recommended amplifier 700W RMS. Rotatable horns for optimal horizontal or vertical sound dispersion angle. The 80° H x 50° V coverage of this 10" LF / 1" HF delivers in the listening area up to 125/129 dB SPL. Optional line transformer 100V/200W. Frequency response from 60Hz to 18kHz. B&C custom designed high excursion LF woofers and HF compression drivers. Full suspension possibilities through multiple threaded rigging points and a wide range of mounting hardware. Flexible mounting hardware and different accessories for ease of installation.

The wide hand made customizations offered made the Archon series a cult between the FBT products. Not only different RAL paint colors, but also paint finishes like glossy, matt, textured and more assure the finest camouflage in the environment. The acoustically transparent steel grilles with antidust protection cloth complete this design shaping the perfect speakers for indoor spaces. The whole Archon series is characterized by extremely low distortion, fast responding dynamics and wideband response and it has been designed for applications that require high SPL levels. The rotatable logo badge follows vertical or horizontal installation.

Technical specifications
Code: 36329
Configuration: 2 way
Recommended amplifier: 700 W RMS
Long Term power: 350 W
Short term power: 1400 W
Nominal impedance: 8 ohm
Frequency response: 60Hz - 18KHz -6dB
Low Frequency woofer: 10 - 2.5 coil inch
High frequency driver: 10 - 2.5 coil inch
Sensitivity (@1W/1m): 97 dB
Maximum SPL cont/peak: 125/129 dB
Dispersion: 80°x50° HxV
Crossover Frequency: 1.8 passive or active Bi-Amp KHz
Recommended HP filter: 45hz - 24dboct
Recommended external filter: Digital Management with presents
Input connector: 2 x Speakon NL 4 in & thru 4 x Euroblock
Net Dimension (WxHxD): 320x550x325 - 12.59x21.65x12.79 mm/inch
Net Weight: 15/33 kg/lb
Accessories
AC-U110V
AC-U110H
