ARCHON 105
PASSIVE POINT SOURCE
pole mounted
flying hardware
- Configuration: 2 way
- Low Frequency Woofer: 1 x 5'' - 1.25'' VC
- High Frequency Driver: 1 x 1'' - 1'' VC
- Recommended Amplifier: 200W RMS
- Transformer (optional): 100V - 50W
- Maximum SPL: 115dB
- Material: Baltic birch plywood

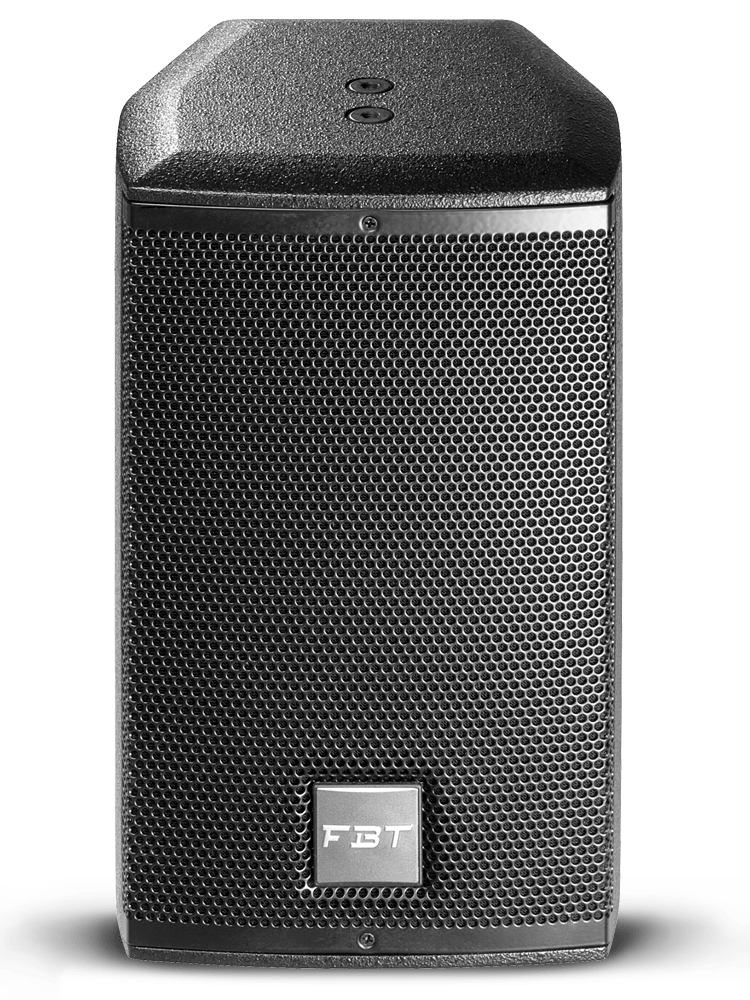

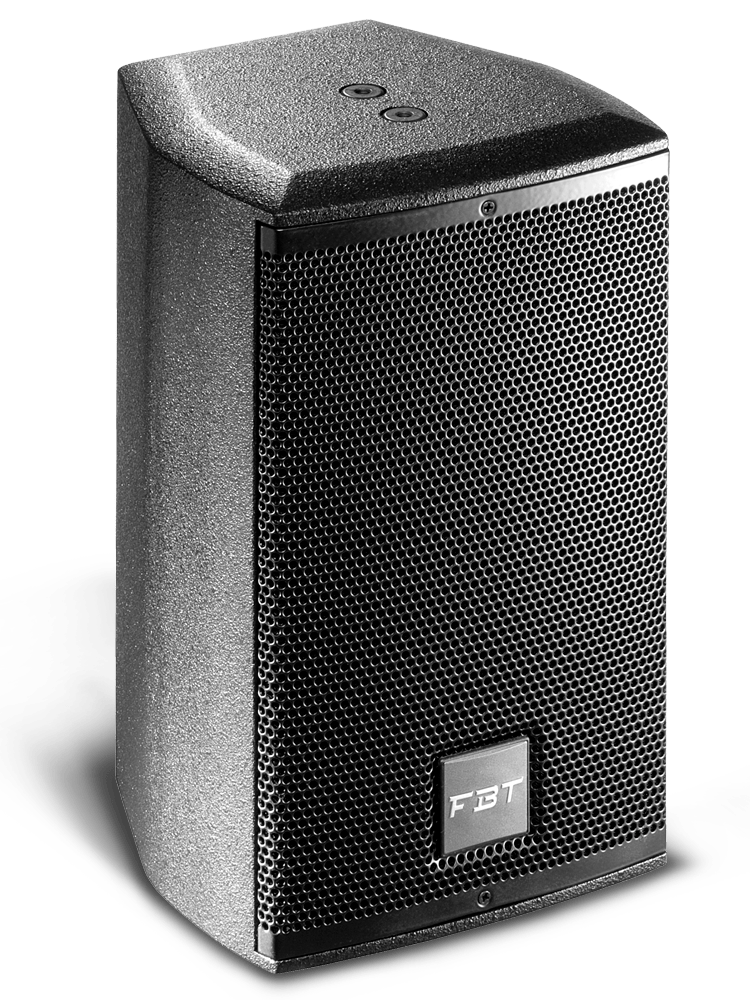

Archon 105 is a 2 way full range compact point source with a crafted birch plywood cabinet.
Recommended amplifier 200W RMS. The 110° constant directivity horn of this 5" LF / 1" HF delivers in the listening area up to 112/115 dB SPL. Optional line transformer 100V/5W. Frequency response from 70Hz to 22kHz. Custom designed LF woofer and HF dome tweeter Made in Italy. Full suspension possibilities through 4 M5 threaded rigging points. Flexible mounting hardware and a wide range of different accessories for ease of installation.

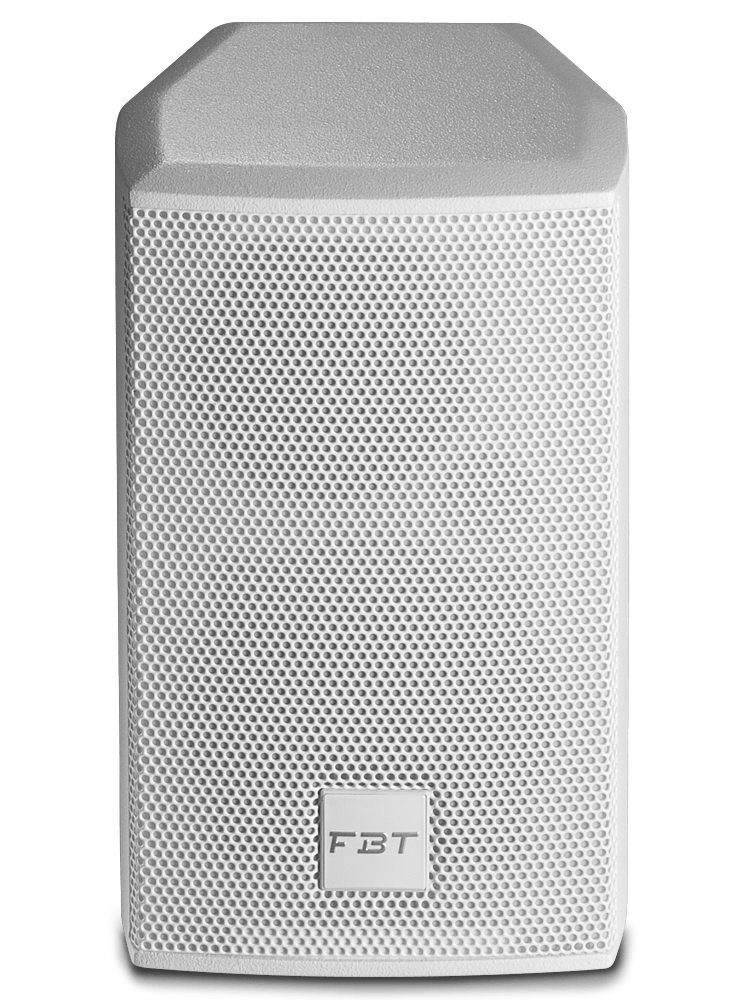

The wide hand made customizations offered made the Archon series a cult between the FBT products. Not only different RAL paint colors, but also paint finishes like glossy, matt, textured and more assure the finest camouflage in the environment. The acoustically transparent steel grilles with antidust protection cloth complete this design shaping the perfect speakers for indoor spaces. The whole Archon series is characterized by extremely low distortion, fast responding dynamics and wideband response and it has been designed for applications that require high SPL levels. The rotatable logo badge follows vertical or horizontal installation.

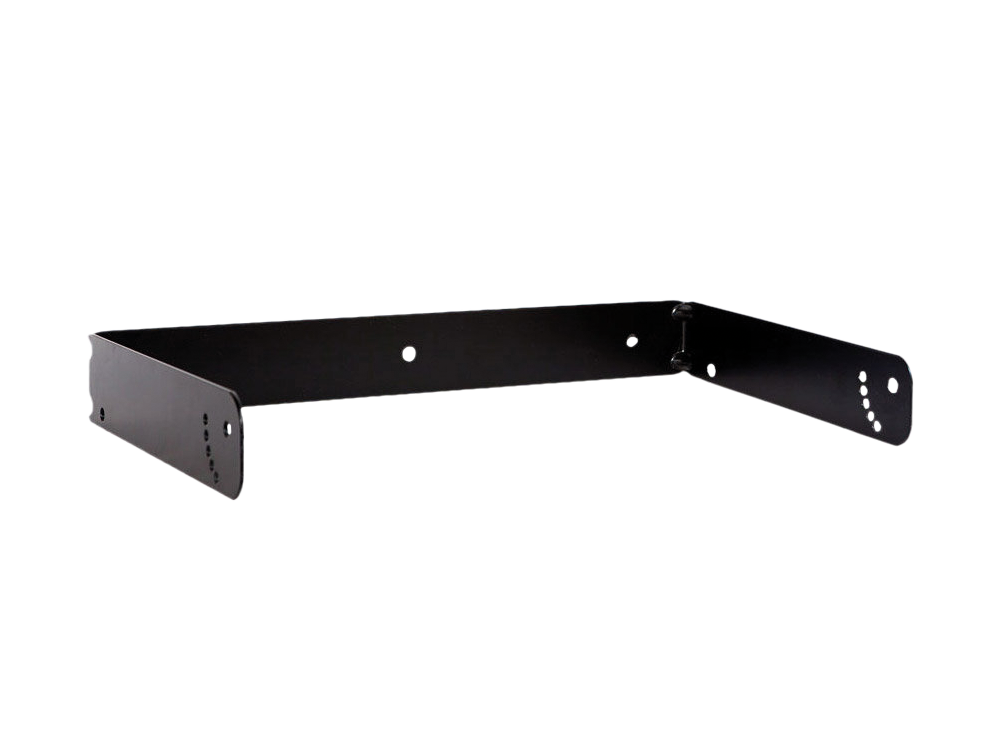

Wall metal bracket to mount in horizontal position</p>
